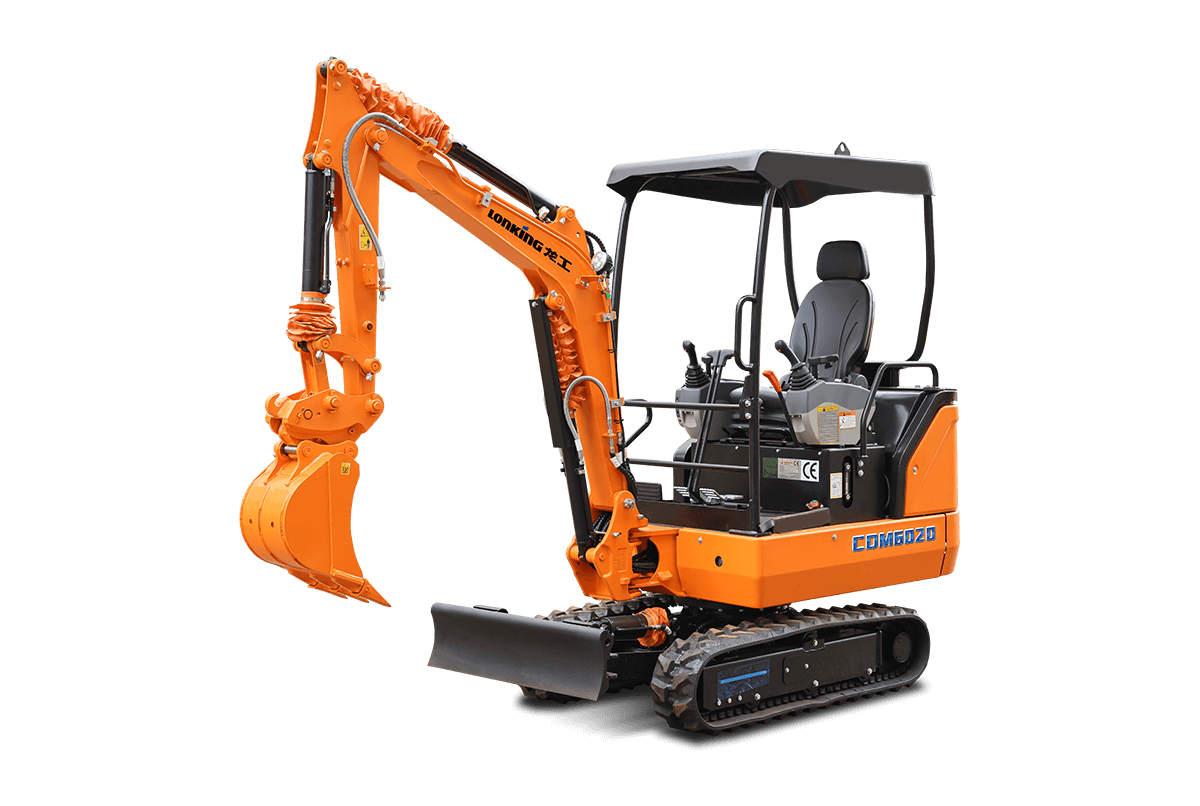

CDM6020 Canopy, Yanmar Euro V
Excavator
CDM6020 Canopy, Yanmar Euro V
13.4 kW/2200 rpmRated Power
1860 kgOperating Weight
2.5/4.5km/hTravel Speed
1.267 LDisplacement
Overview
The Lonking CDM6020 Canopy, Yanmar Euro V is a excavator built for dependable, efficient operation. Powered by a 3TNV80 engine producing 13.4 kW/2200 rpm, with an operating weight of 1860 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 13.4 kW/2200 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

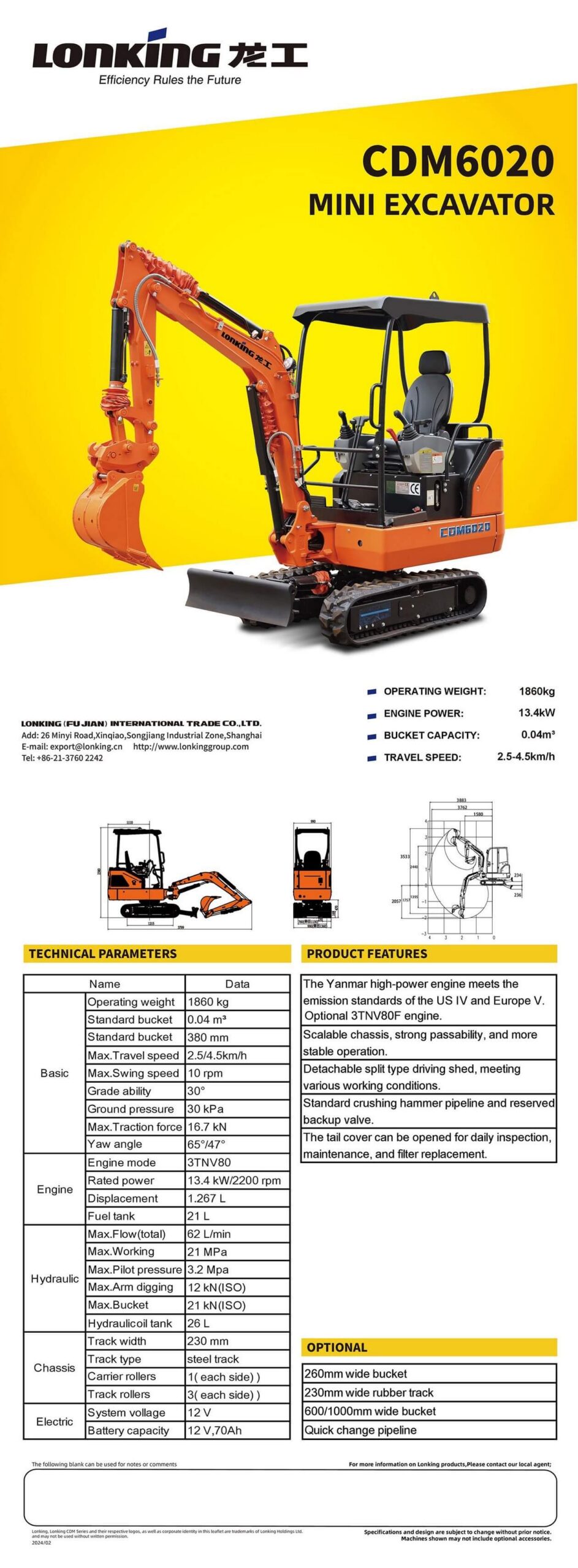

Technical Specifications
BASIC
| Operating weight | 1860 kg |
| Standard bucket | 0.04 m³ |
| Standard bucket width | 380 mm |
| Max.Travel speed | 2.5/4.5km/h |
| Max.Swing speed | 10 rpm |
| Grade ability | 30° |
| Ground pressure | 30 kPa |
| Max.Traction force | 16.7 kN |
| Yaw angle | 65°/47° |
ENGINE
| Engine model | 3TNV80 |
| Rated power | 13.4 kW/2200 rpm |
| Displacement | 1.267 L |
| Fuel tank | 21 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 62 L/min |
| Max.Working pressure | 21 MPa |
| Max.Pilot pressure | 3.2 Mpa |
| Max.Arm digging force | 12 kN(ISO) |
| Max.Bucket digging force | 21 kN(ISO) |
| Hydraulic oil tank | 26 L |
CHASSIS
| Track width | 230 mm |
| Track type | steel track |
| Carrier rollers number | 1( each side) |
| Track rollers number | 3( each side) |
ELECTRIC SYSTEM
| System voltage | 12 V |
| Battery capacity | 12 V,70 Ah |
OPTIONAL
