CDM6306 Cummins Ⅱ
Excavator
CDM6306 Cummins II
241/2000 kW/rpmRated Power
32800 kgOperating Weight
3.4-5.2 km/hTravel Speed
8.9 LDisplacement
Overview

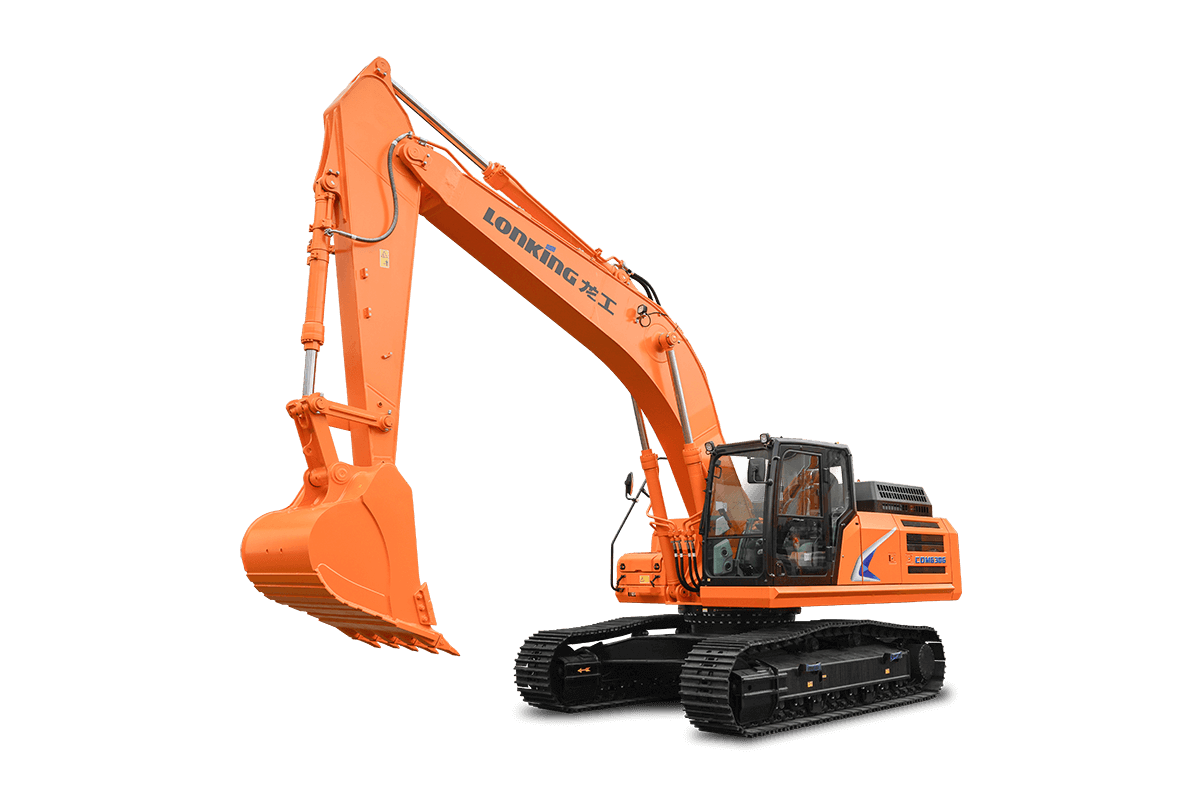

The Lonking CDM6306 Cummins II is a excavator built for dependable, efficient operation. Powered by a 6LTAA8.9-C325 engine producing 241/2000 kW/rpm, with an operating weight of 32800 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 241/2000 kW/rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 32800 kg |
| Boom length | 6150 mm |
| Arm length | 3200 mm |
| Standard bucket | 1.6 m3 (Rock) |
| Max. Travel speed | 3.4-5.2 km/h |
| Max. Swing speed | 10 rpm |
| Grade ability | 35 deg(70%) |
| Ground pressure | 62 kPa |
| Max. Traction force | 283 kN |
ENGINE
| Engine model | 6LTAA8.9-C325 |
| Rated power | 241/2000 kW/rpm |
| Max. Torque | 1450/1300 N.m/rpm |
| Displacement | 8.9 L |
| Fuel tank | 600 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 288×2 L/min |
| Max. Working pressure | 34.3 MPa |
| Max. Pilot pressure | 3.9 MPa |
| Max. Arm digging force | 170 kN |
| Max. Bucket digging force | 220 kN |
| Hydraulic oil tank | 300 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 47×2 |
| Carrier rollers number | 2×2 |
| Track rollers number | 8×2 |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24/165 x2 |
OPTIONAL
| Breaking hammer & pipeline | yes |
| Work warning light | yes |
| Walking alarm | yes |
| Top protecting net | yes |
| Front protecting net | yes |
| 700mm triple grouser shoes | yes |
| 800mm triple grouser shoes | yes |
