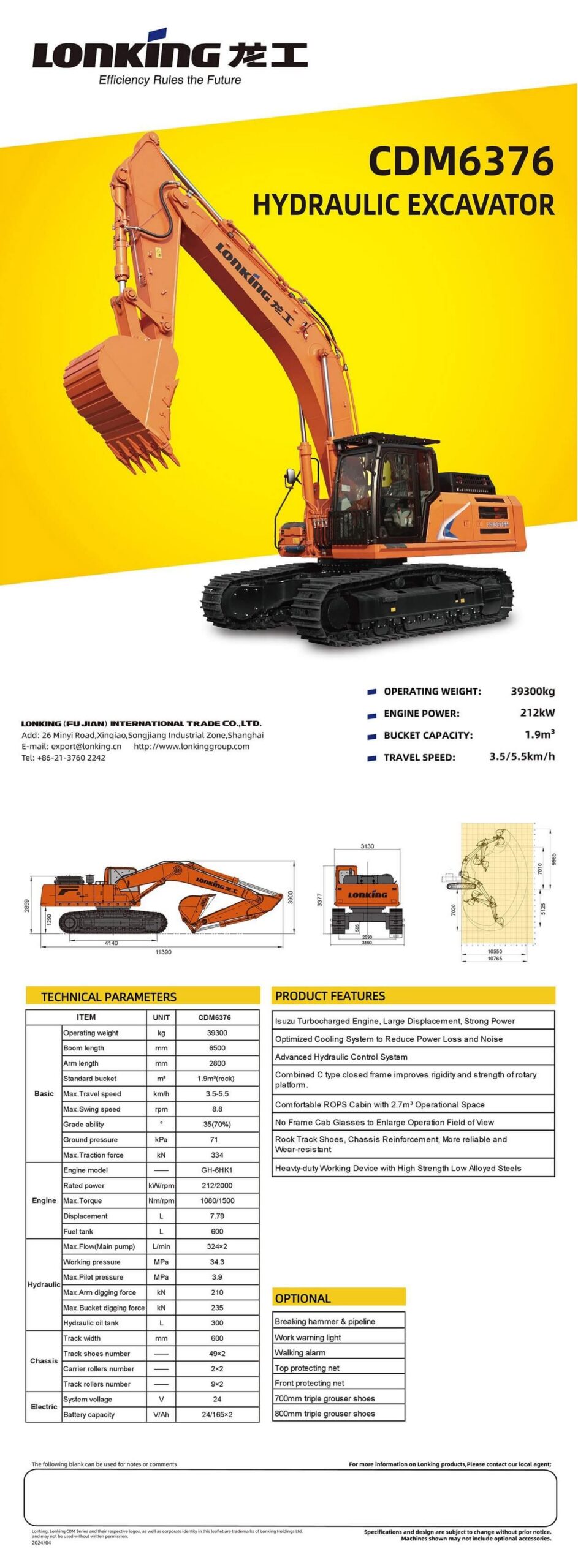

CDM6376 Isuzu Ⅲ
Excavator
CDM6376 Isuzu Ⅲ
212/2000 kW/rpmRated Power
39300 kgOperating Weight
3.5-5.5 km/hTravel Speed
7.79 LDisplacement
Overview
The Lonking CDM6376 Isuzu Ⅲ is a excavator built for dependable, efficient operation. Powered by a GH-6HK1 engine producing 212/2000 kW/rpm, with an operating weight of 39300 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 212/2000 kW/rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 39300 kg |
| Boom length | 6500 mm |
| Arm length | 2800 mm |
| Standard bucket | 1.9 (rock) m³ |
| Max.Travel speed | 3.5-5.5 km/h |
| Max.Swing speed | 8.8 rpm |
| Grade ability | 35(70%) ° |
| Ground pressure | 71 kPa |
| Max.Traction force | 334 kN |
ENGINE
| Engine model | GH-6HK1 |
| Rated power | 212/2000 kW/rpm |
| Max.Torque | 1080/1500 Nm/rpm |
| Displacement | 7.79 L |
| Fuel tank | 600 L |
HYDRAULIC
| Max.Flow(Main pump) | 324×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 MPa |
| Max.Arm digging force | 210 kN |
| Max.Bucket digging force | 235 kN |
| Hydraulic oil tank | 300 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 49×2 |
| Carrier rollers number | 2×2 |
| Track rollers number | 9×2 |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24/165×2 V/Ah |
