CDM6490F Cummnis Ⅲ
Excavator

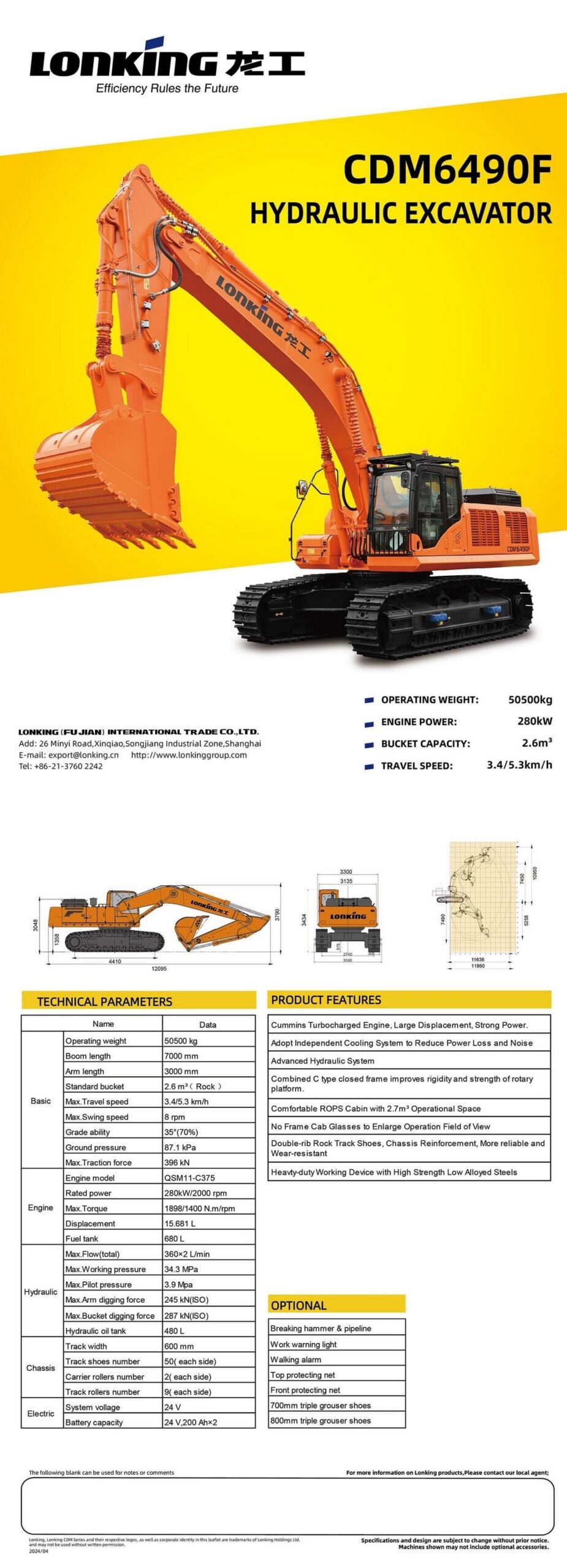

CDM6490F Cummins Ⅲ
280 kW/2000 rpmRated Power
50500 kgOperating Weight
3.4/5.3 km/hTravel Speed
15.681 LDisplacement
Overview
The Lonking CDM6490F Cummins Ⅲ is a excavator built for dependable, efficient operation. Powered by a QSM11-C375 engine producing 280 kW/2000 rpm, with an operating weight of 50500 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 280 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 50500 kg |
| Boom length | 7000 mm |
| Arm length | 3000 mm |
| Standard bucket | 2.6 (Rock) m³ |
| Max.Travel speed | 3.4/5.3 km/h |
| Max.Swing speed | 8 rpm |
| Grade ability | 35(70%) ° |
| Ground pressure | 87.1 kPa |
| Max.Traction force | 396 kN |
ENGINE
| Engine model | QSM11-C375 |
| Rated power | 280 kW/2000 rpm |
| Max.Torque | 1898/1400 Nm/rpm |
| Displacement | 15.681 L |
| Fuel tank | 680 L |
HYDRAULIC
| Max.Flow(total) | 360×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 MPa |
| Max.Arm digging force | 245 kN (ISO) |
| Max.Bucket digging force | 287 kN (ISO) |
| Hydraulic oil tank | 480 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 50 each side |
| Carrier rollers number | 2 each side |
| Track rollers number | 9 each side |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24V, 200Ah×2 |
