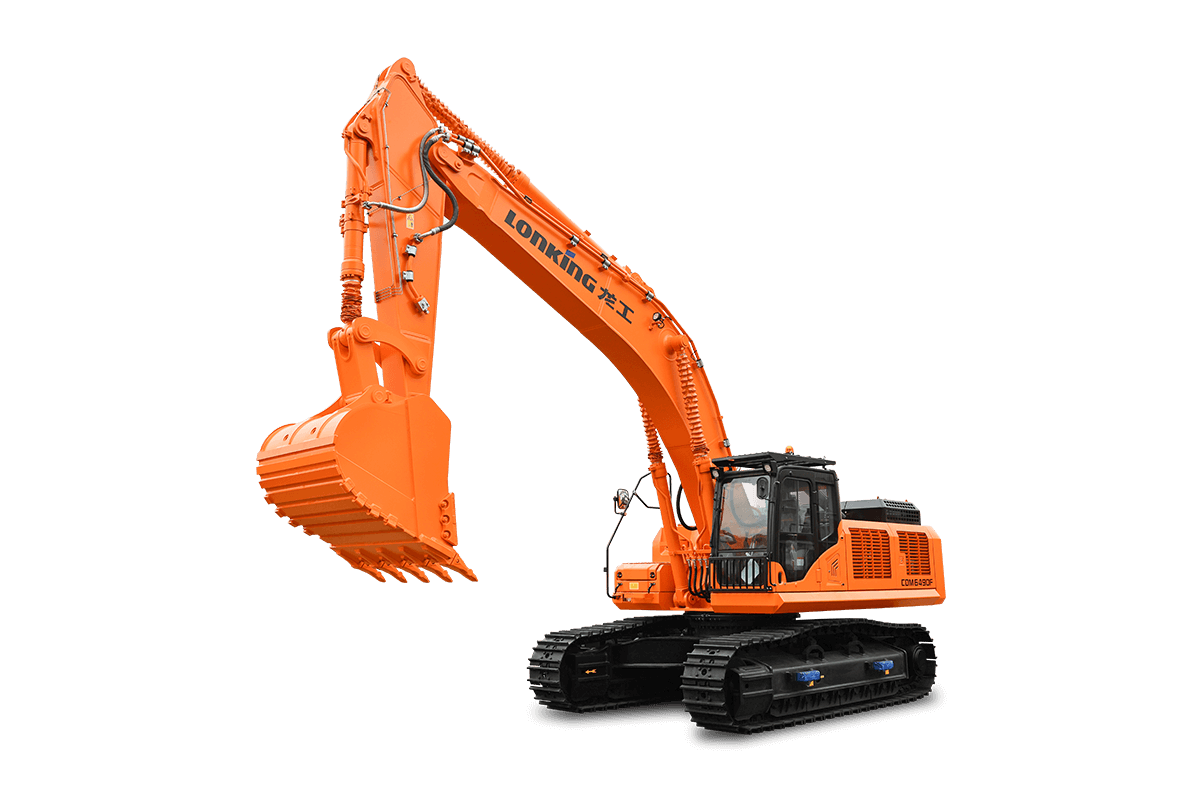

CDM6490F Isuzu Ⅲ
Excavator
CDM6490F Isuzu III
300 kW/1800 rpmRated Power
50500 kgOperating Weight
3.4/5.3 km/hTravel Speed
15.681 LDisplacement
Overview
The Lonking CDM6490F Isuzu III is a excavator built for dependable, efficient operation. Powered by a 6WG1-XDHAG-03-C3 engine producing 300 kW/1800 rpm, with an operating weight of 50500 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 300 kW/1800 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

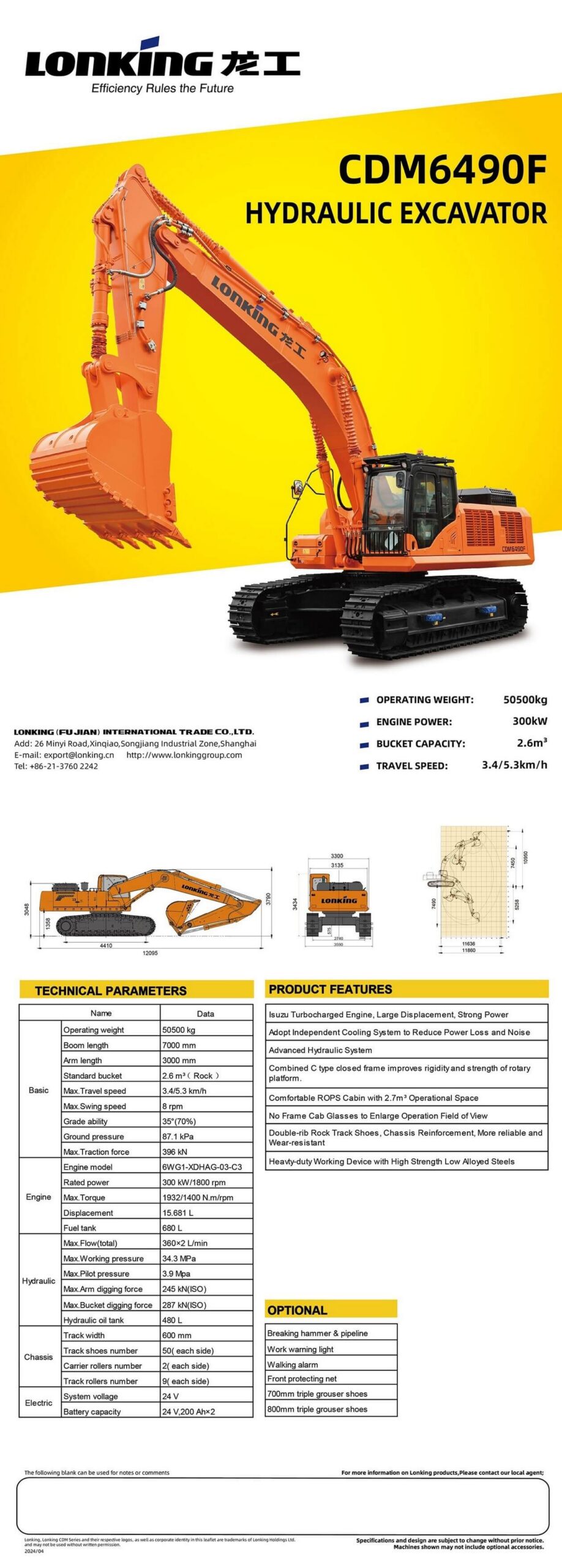

Technical Specifications
BASIC
| Operating weight | 50500 kg |
| Boom length | 7000 mm |
| Arm length | 3000 mm |
| Standard bucket | 2.6 m3 (Rock) |
| Max. Travel speed | 3.4/5.3 km/h |
| Max. Swing speed | 8 rpm |
| Grade ability | 35 deg(70%) |
| Ground pressure | 87.1 kPa |
| Max. Traction force | 396 kN |
ENGINE
| Engine model | 6WG1-XDHAG-03-C3 |
| Rated power | 300 kW/1800 rpm |
| Max. Torque | 1932/1400 N.m/rpm |
| Displacement | 15.681 L |
| Fuel tank | 680 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 360×2 L/min |
| Max. Working pressure | 34.3 MPa |
| Max. Pilot pressure | 3.9 MPa |
| Max. Arm digging force | 245 kN (ISO) |
| Max. Bucket digging force | 287 kN (ISO) |
| Hydraulic oil tank | 480 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 50 (each side) |
| Carrier rollers number | 2 (each side) |
| Track rollers number | 9 (each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 200 Ah x2 |
OPTIONAL
| Breaking hammer & pipeline | yes |
| Work warning light | yes |
| Walking alarm | yes |
| Front protecting net | yes |
| 700mm triple grouser shoes | yes |
| 800mm triple grouser shoes | yes |
