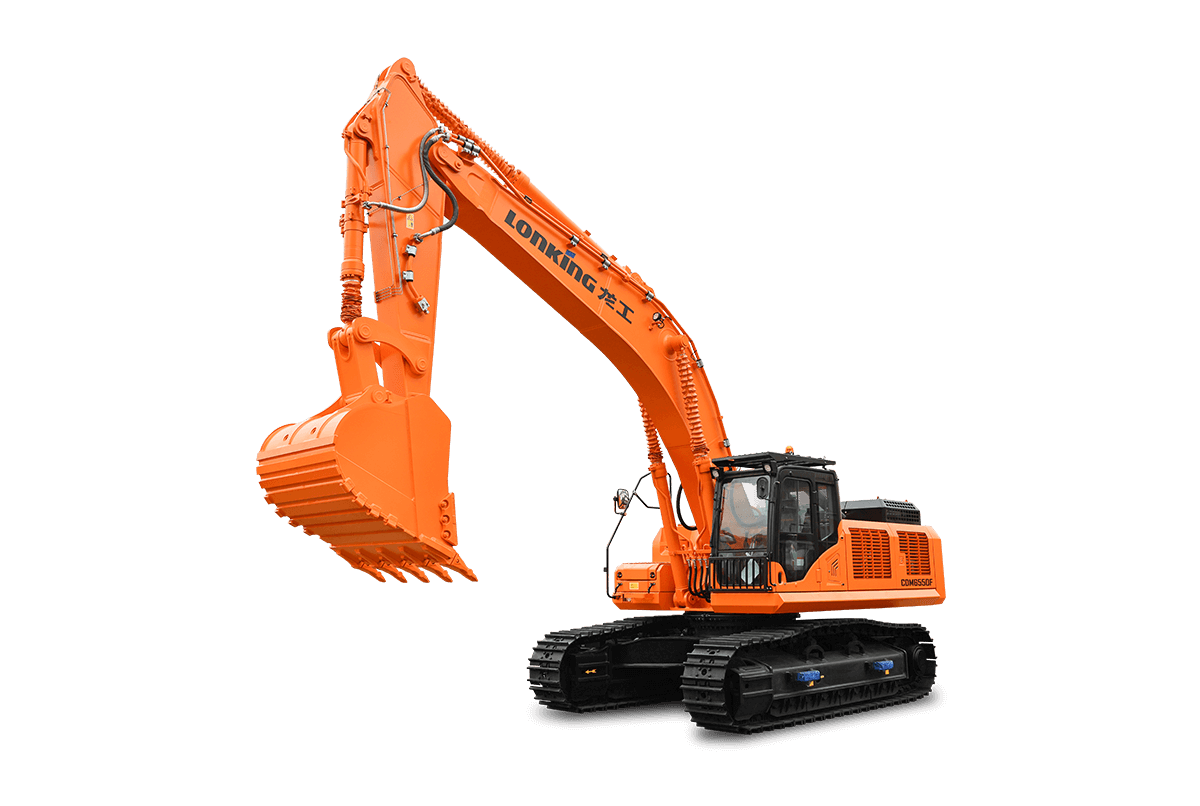

CDM6550F Isuzu Ⅲ
Excavator
CDM6550F Isuzu Ⅲ
300 kW/1800 rpmRated Power
51000 kgOperating Weight
3.4/5.3 km/hTravel Speed
15.681 LDisplacement
Overview
The Lonking CDM6550F Isuzu Ⅲ is a excavator built for dependable, efficient operation. Powered by a 6WG1-XDHAG-03-C3 engine producing 300 kW/1800 rpm, with an operating weight of 51000 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 300 kW/1800 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

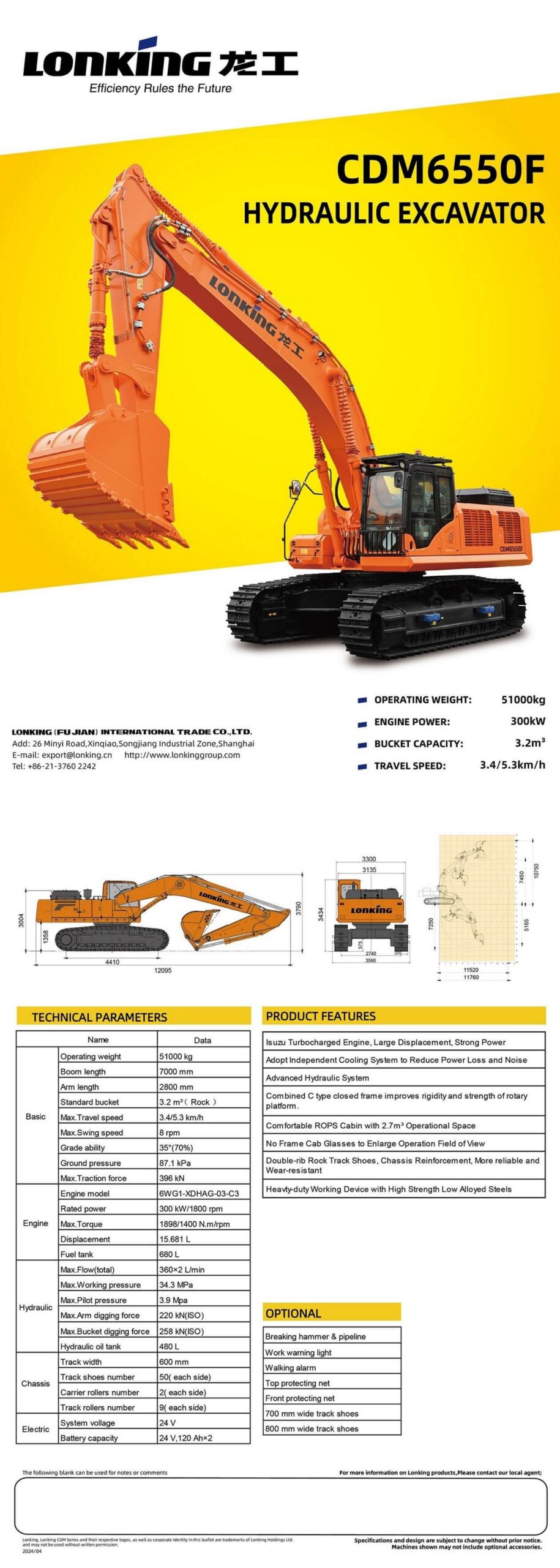

Technical Specifications
BASIC
| Operating weight | 51000 kg |
| Boom length | 7000 mm |
| Arm length | 2800 mm |
| Standard bucket | 3.2 (Rock) m³ |
| Max.Travel speed | 3.4/5.3 km/h |
| Max.Swing speed | 8 rpm |
| Grade ability | 35(70%) ° |
| Ground pressure | 87.1 kPa |
ENGINE
| Engine model | 6WG1-XDHAG-03-C3 |
| Rated power | 300 kW/1800 rpm |
| Max.Torque | 1898/1400 Nm/rpm |
| Displacement | 15.681 L |
| Fuel tank | 680 L |
HYDRAULIC
| Max.Flow(total) | 360×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 MPa |
| Max.Arm digging force | 220 kN (ISO) |
| Max.Bucket digging force | 258 kN (ISO) |
| Hydraulic oil tank | 480 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 50 each side |
| Carrier rollers number | 2 each side |
| Track rollers number | 9 each side |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24V, 120Ah×2 |
