CDM6700F Weichai Ⅲ
Excavator
CDM6700F Weichai III
566 kW/1900 rpmRated Power
70000 kgOperating Weight
4.5 km/hTravel Speed
15.3 LDisplacement
Overview

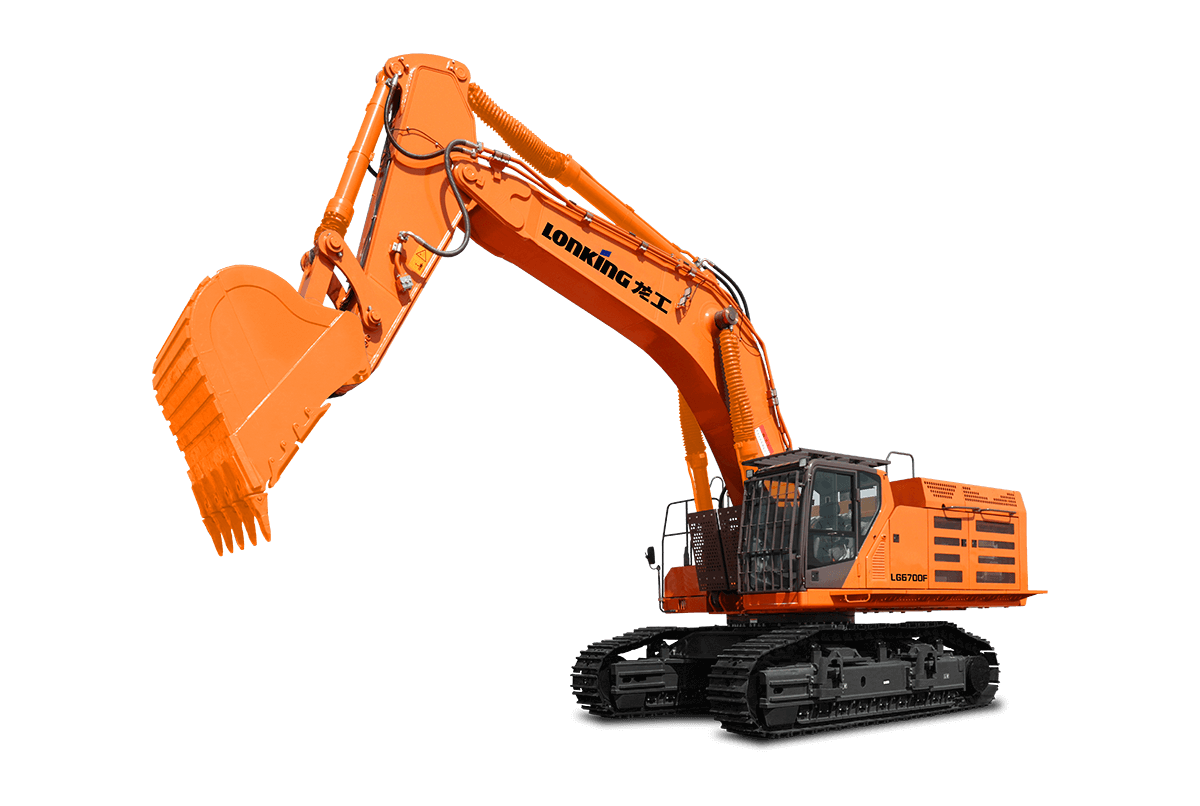

The Lonking CDM6700F Weichai III is a excavator built for dependable, efficient operation. Powered by a WP15H engine producing 566 kW/1900 rpm, with an operating weight of 70000 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 566 kW/1900 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 70000 kg |
| Boom length | 7000 mm |
| Arm length | 3000 mm |
| Standard bucket | 4.4-5.0 m3 |
| Max. Travel speed | 4.5 km/h |
| Max. Swing speed | 6.4 rpm |
| Grade ability | 35 deg(70%) |
| Ground pressure | 115.7 kPa |
| Max. Traction force | 430 kN |
ENGINE
| Engine model | WP15H |
| Rated power | 566 kW/1900 rpm |
| Max. Torque | 2890/1200-1600 N.m/rpm |
| Displacement | 15.3 L |
| Fuel tank | 800 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 2×480 L/min |
| Max. Working pressure | 37.3 MPa |
| Max. Pilot pressure | n/a |
| Max. Arm digging force | 325/338 kN (ISO) |
| Max. Bucket digging force | 361 kN (ISO) |
| Hydraulic oil tank | 600 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 53 (each side) |
| Carrier rollers number | 3 (each side) |
| Track rollers number | 9 (each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 200 Ah |
OPTIONAL
| Breaking hammer & pipeline | yes |
| Quick coupler pipeline | yes |
| Work warning light | yes |
| Walking alarm | yes |
| Top protecting net | yes |
| Front protecting net | yes |
