CDM6205 Weichai Ⅲ 118kW ,Chinese HYD
Excavator
CDM6205 Weichai Ⅲ 118kW ,Chinese HYD
118 kW/2000 rpmRated Power
21100 kgOperating Weight
3.2/5.1 km/hTravel Speed
6.75 LDisplacement
Overview

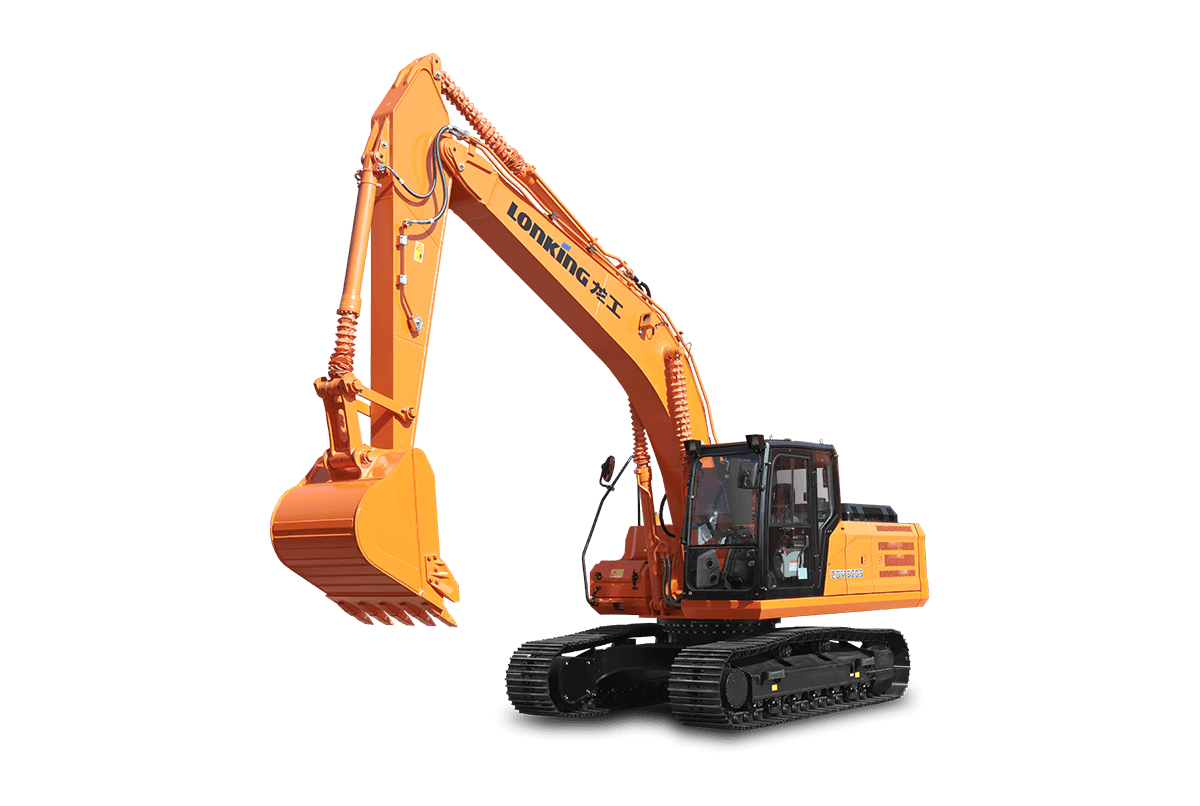

The Lonking CDM6205 Weichai Ⅲ 118kW ,Chinese HYD is a excavator built for dependable, efficient operation. Powered by a WP6G160E331 engine producing 118 kW/2000 rpm, with an operating weight of 21100 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 118 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 21100 kg |
| Boom length | 5675 mm |
| Arm length | 2920 mm |
| Standard bucket | 0.85 m³ |
| Max.Travel speed | 3.2/5.1 km/h |
| Max.Swing speed | 10.6 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 47 kPa |
| Max.Traction force | 208 kN |
ENGINE
| Engine model | WP6G160E331 |
| Rated power | 118 kW/2000 rpm |
| Max.Torque | 720/1300-1500 N.m/rpm |
| Displacement | 6.75 L |
| Fuel tank | 400 L |
HYDRAULIC
| Max.Flow(total) | 221×2 L/min |
| Max.Working pressure | 35 MPa |
| Max.Pilot pressure | 4 Mpa |
| Max.Arm digging force | 100 kN(ISO) |
| Max.Bucket digging force | 133 kN(ISO) |
| Hydraulic oil tank | 165/256 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 46(each side) |
| Carrier rollers number | 2(each side) |
| Track rollers number | 7(each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24 V,120 Ah×2 |
