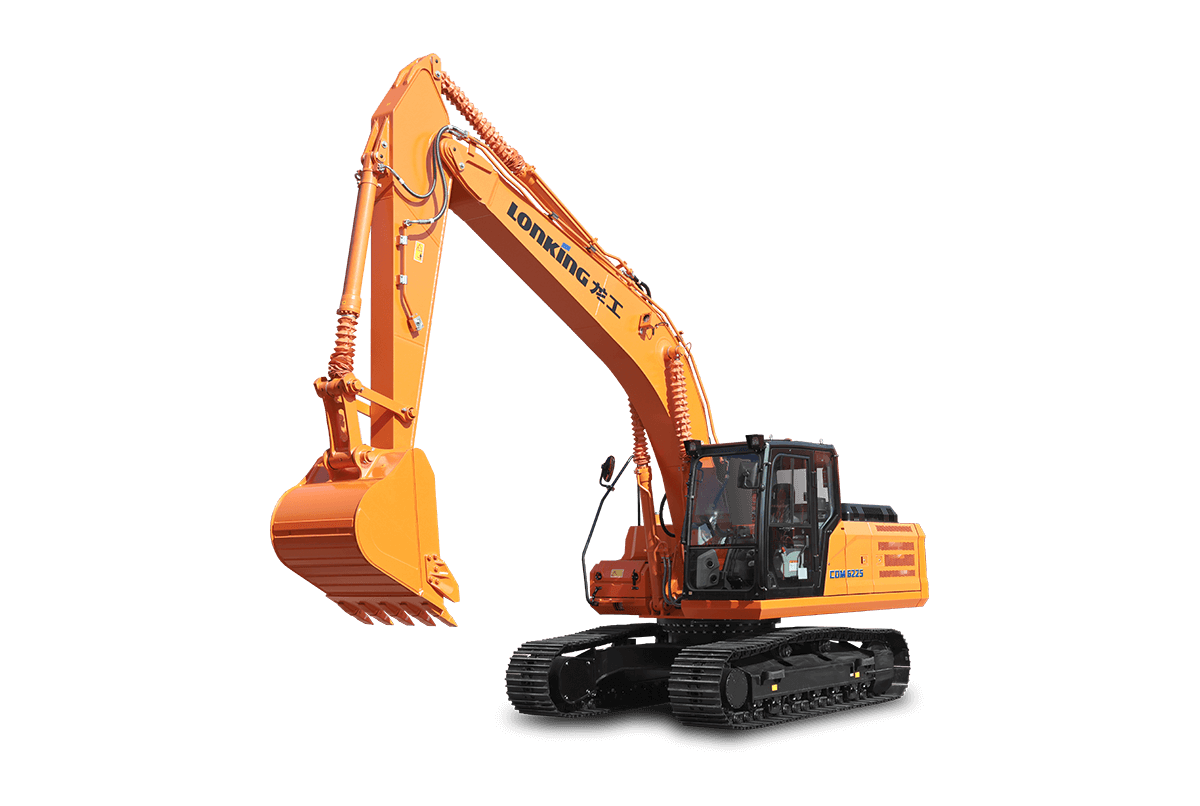

CDM6225 Long Reach, 15m
Excavator
CDM6225 Long Reach, 15m
112 kW/1950 rpmRated Power
23500 kgOperating Weight
3.0/5.1 km/hTravel Speed
5.9 LDisplacement
Overview
The Lonking CDM6225 Long Reach, 15m is a excavator built for dependable, efficient operation. Powered by a 6BTAA5.9-C150-II engine producing 112 kW/1950 rpm, with an operating weight of 23500 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 112 kW/1950 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 23500 kg |
| Boom length | 8800 mm |
| Arm length | 6200 mm |
| Standard bucket | 0.5 m³ |
| Max.Travel speed | 3.0/5.1 km/h |
| Max.Swing speed | 7.5 rpm |
| Grade ability | 35(70%) ° |
| Ground pressure | 48 kPa |
| Max.Traction force | 205 kN |
ENGINE
| Engine model | 6BTAA5.9-C150-II |
| Rated power | 112 kW/1950 rpm |
| Max.Torque | 614/1500 Nm/rpm |
| Displacement | 5.9 L |
| Fuel tank | 400 L |
HYDRAULIC
| Max.Flow(total) | 208×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 MPa |
| Max.Arm digging force | 55 kN (ISO) |
| Max.Bucket digging force | 90 kN (ISO) |
| Hydraulic oil tank | 256 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 47 each side |
| Carrier rollers number | 2 each side |
| Track rollers number | 8 each side |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24V, 120Ah×2 |
