CDM6240 Cummins Ⅱ
Excavator
CDM6240 Cummins Ⅱ
133 kW/2000 rpmRated Power
22600 kgOperating Weight
3.0/5.1 km/hTravel Speed
5.9 LDisplacement
Overview

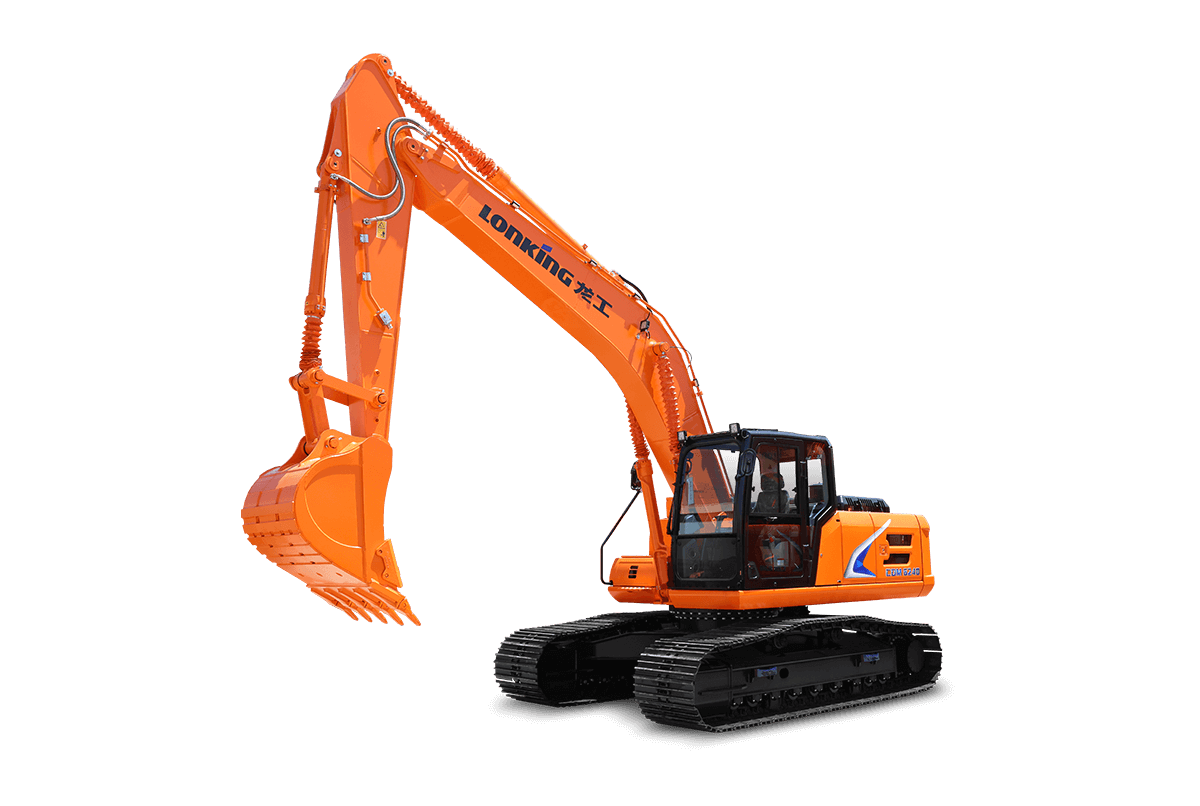

The Lonking CDM6240 Cummins Ⅱ is a excavator built for dependable, efficient operation. Powered by a 6BTAA5.9-C178-II engine producing 133 kW/2000 rpm, with an operating weight of 22600 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 133 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 22600 kg |
| Boom length | 5700 mm |
| Arm length | 2900 mm |
| Standard bucket | 1.16 m³ |
| Max.Travel speed | 3.0/5.1 km/h |
| Max.Swing speed | 12.1 rpm |
| Grade ability | 35(70%) ° |
| Ground pressure | 47 kPa |
| Max.Traction force | 217 kN |
ENGINE
| Engine model | 6BTAA5.9-C178-II |
| Rated power | 133 kW/2000 rpm |
| Max.Torque | 708/1500 Nm/rpm |
| Displacement | 5.9 L |
| Fuel tank | 350 L |
HYDRAULIC
| Max.Flow(total) | 224×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 MPa |
| Max.Arm digging force | 94/102 kN (ISO) |
| Max.Bucket digging force | 129/141 kN (ISO) |
| Hydraulic oil tank | 220 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 49 each side |
| Carrier rollers number | 2 each side |
| Track rollers number | 9 each side |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24V, 120Ah×2 |
