CDM6266F Cummins Ⅲ, Imported HYD
Excavator
CDM6266F Cummins Ⅲ, Imported HYD
145 kW/2000 rpmRated Power
26800 kgOperating Weight
3.7/5.7 km/hTravel Speed
6.7 LDisplacement
Overview

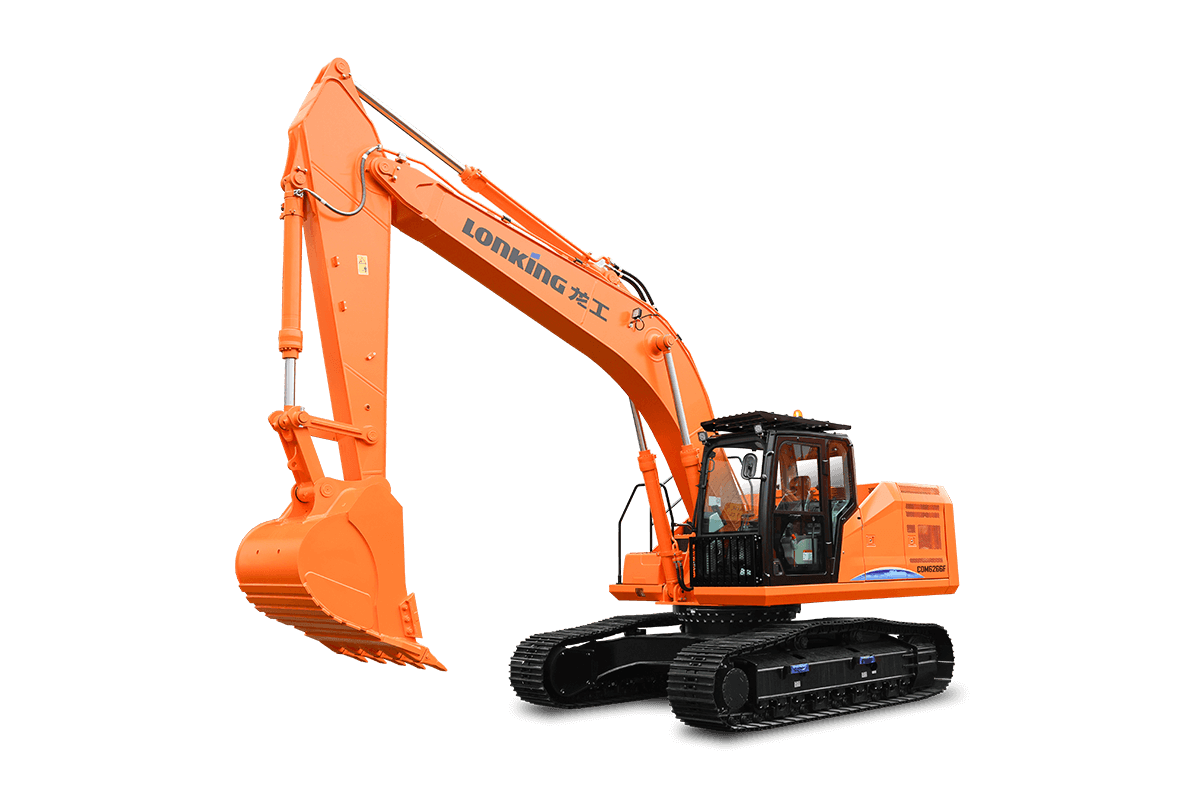

The Lonking CDM6266F Cummins Ⅲ, Imported HYD is a excavator built for dependable, efficient operation. Powered by a QSB6.7-C190-31 engine producing 145 kW/2000 rpm, with an operating weight of 26800 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 145 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

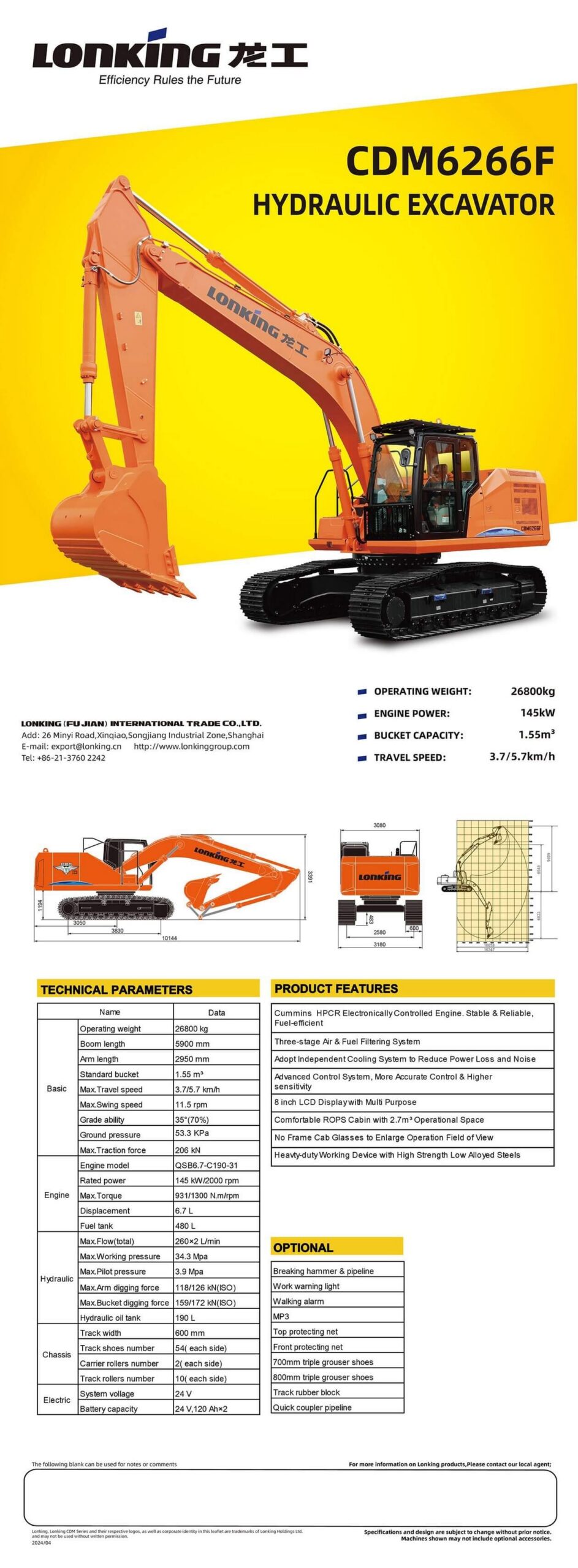

Technical Specifications
BASIC
| Operating weight | 26800 kg |
| Boom length | 5900 mm |
| Arm length | 2950 mm |
| Standard bucket | 1.55 m³ |
| Max.Travel speed | 3.7/5.7 km/h |
| Max.Swing speed | 11.5 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 53.3 KPa |
| Max.Traction force | 206 kN |
ENGINE
| Engine model | QSB6.7-C190-31 |
| Rated power | 145 kW/2000 rpm |
| Max.Torque | 931/1300 N.m/rpm |
| Displacement | 6.7 L |
| Fuel tank | 480 L |
HYDRAULIC
| Max.Flow(total) | 260×2 L/min |
| Max.Working pressure | 34.3 Mpa |
| Max.Pilot pressure | 3.9 Mpa |
| Max.Arm digging force | 118/126 kN(ISO) |
| Max.Bucket digging force | 159/172 kN(ISO) |
| Hydraulic oil tank | 190 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 54(each side) |
| Carrier rollers number | 2(each side) |
| Track rollers number | 10(each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24 V,120 Ah×2 |
