CDM307 Xinchai (Euro v+pilot)
Skid Steer Loader
CDM307 Xinchai (Euro v+pilot)
44.8KWRated Power
752kgRated Payload
2800kgOperating Weight
0.43m³Bucket Capacity
Overview

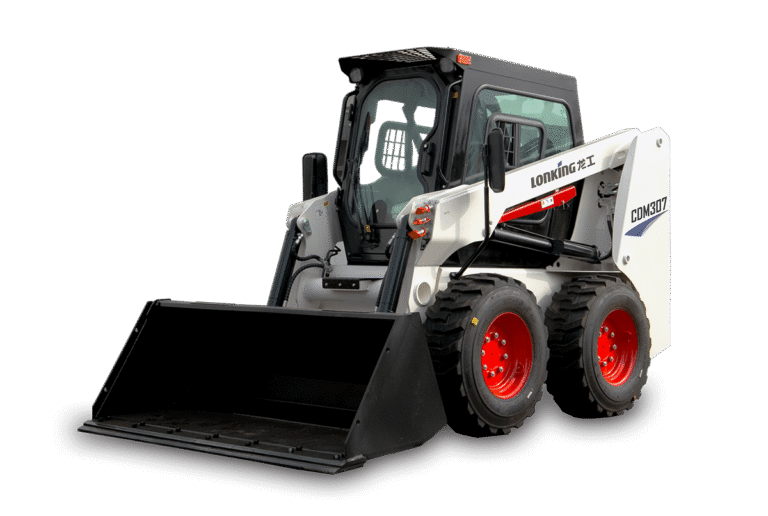

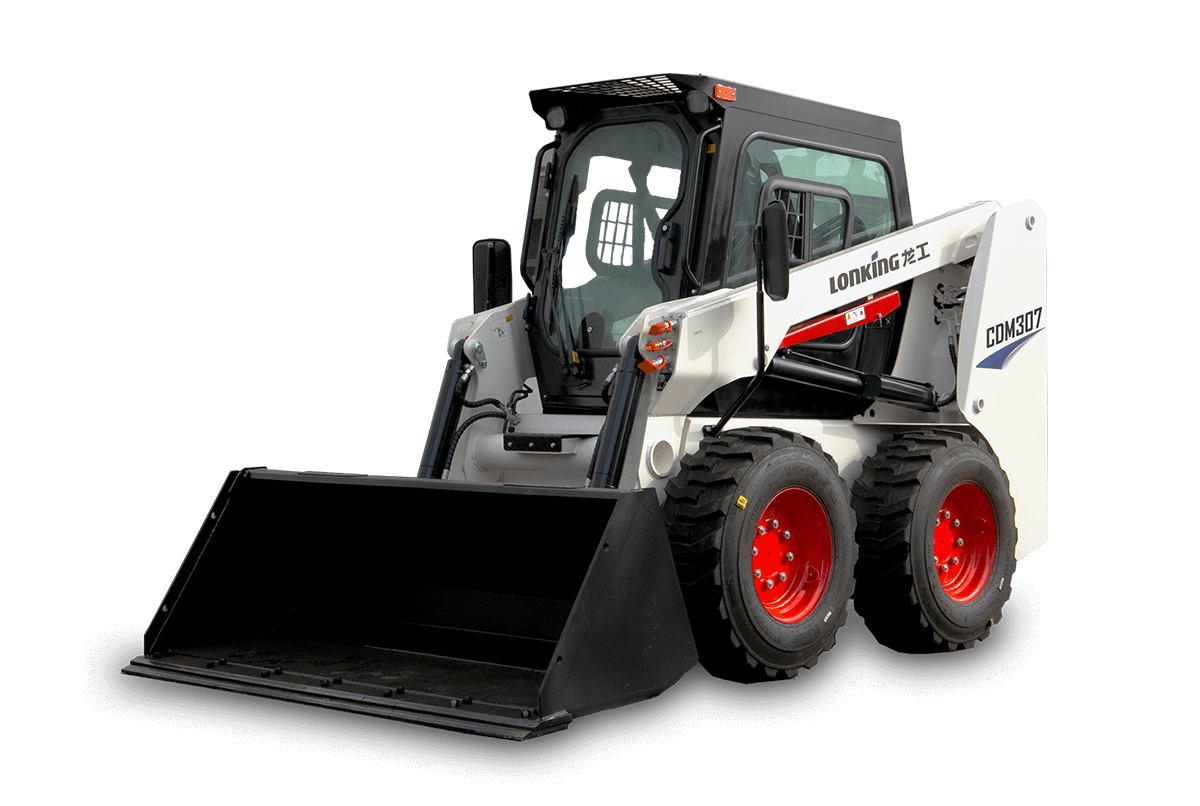

The Lonking CDM307 Xinchai (Euro v+pilot) is a skid steer loader built for dependable, efficient operation. Powered by a 3E22YG51 engine producing 44.8KW, it handles a rated payload of 752kg with an operating weight of 2800kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks. Engine options meet Euro V emission standards for broad market compliance.
Key Features
- 752kg rated capacity provides the working power your jobsite demands
- 44.8KW engine output tuned for productive operation
- High-performance hydraulic system operating at 21MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating Weight | 2800kg |
| Rated Payload | 752kg |
| Bucket Capacity | 0.43m³ |
| Tipping Load | 1504kg |
| Breakout Force | 20.3kN |
| Traction Force | 18.9kN |
| L×W×H | 3320×1530×2000 |
ENGINE
| Engine Model | 3E22YG51 |
| Rated Power | 44.8KW |
| Displacement | 2.23L |
| Fuel consumption | 255g/kw·h |
| Stroke | 107mm |
| Bore | 94mm |
| Emission Standard | Euro V |
HYDRAULIC
| Hydraulic Flow – Standard | 68.L/min·2400rpm |
| Type | Mechanical Servo |
| Hydraulic Pressure– Standard | 21MPa |
DRIVE TRAIN
| Travel Speed -F&R | 11.5km/h |
| Tyre | 10-16.5NHS |
ELECTRIC
| Voltage(V) | 12 V |
| Capacity(Ah) | 165 Ah |
SERVICE REFILL CAPACITY
| Chain Box, Each Side | 9L |
| Cooling System | 12L |
| Engine Crankcase | 8L |
| Fuel Tank | 83L |
| Hydraulic Tank | 65L |
