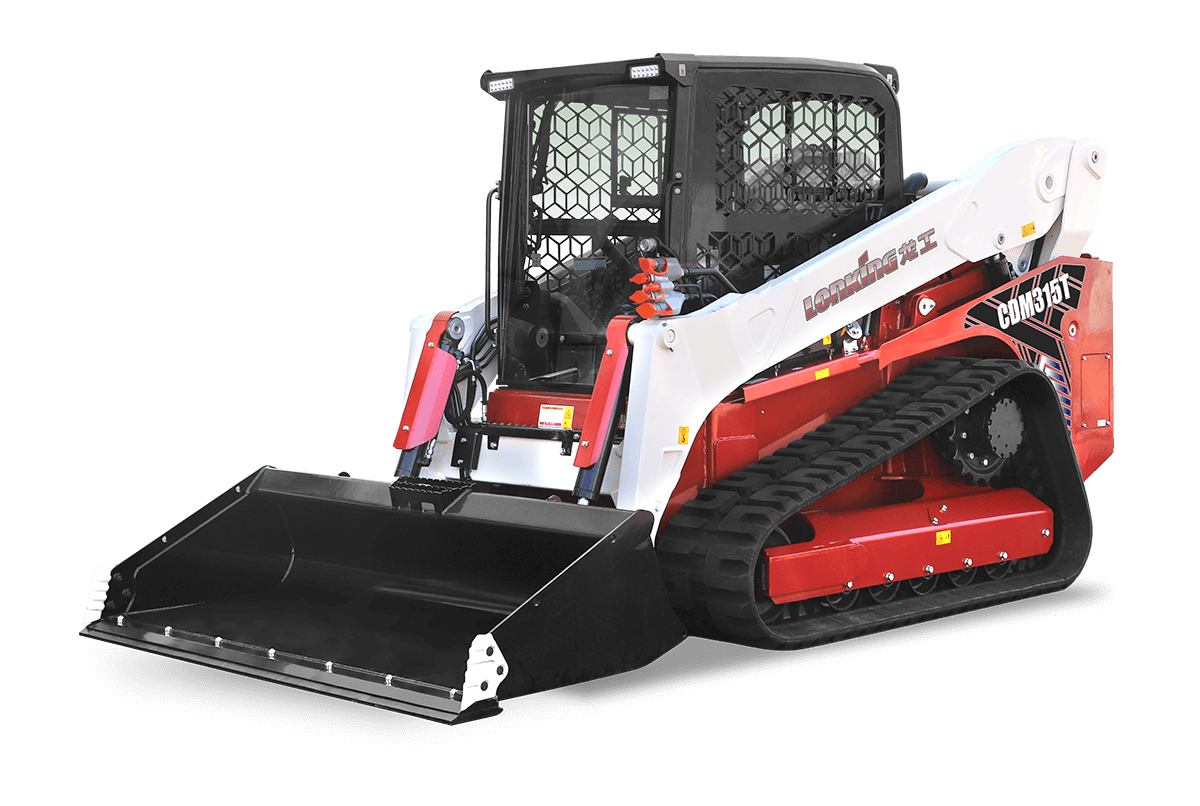

CDM315T Xinchai Tier 2
Skid Steer Loader
CDM315T Xinchai Tier 2
73.5 kW/rpmRated Power
1500 kgRated Payload
5440 kgOperating Weight
0.7 m3Bucket Capacity
Overview
The Lonking CDM315T Xinchai Tier 2 is a skid steer loader built for dependable, efficient operation. Powered by a XINCHAI 4D35ZT engine producing 73.5 kW/rpm, it handles a rated payload of 1500 kg with an operating weight of 5440 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks. Engine options meet Tier II emission standards for broad market compliance.
Key Features
- 1500 kg rated capacity provides the working power your jobsite demands
- 73.5 kW/rpm engine output tuned for productive operation
- High-performance hydraulic system operating at 25 MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating Weight | 5440 kg |
| Rated Payload | 1500 kg |
| Bucket Capacity | 0.7 m3 |
| Tipping Load | 35 kN |
| Breakout Force | 24 kN |
| Traction Force | 42 kN |
| LxWxH | 4081*2067*2131 mm |
ENGINE
| Engine Model | XINCHAI 4D35ZT |
| Rated Power | 73.5 kW/rpm |
| Displacement | 3.46 L |
| Fuel consumption | 248 g/kw*h |
| Stroke | 115 mm |
| Bore | 98 mm |
| Emission Standard | Tier II |
HYDRAULIC SYSTEM
| Hydraulic Flow – Standard | 15-160 L/min |
| Type | Mechanical |
| Hydraulic Pressure – Standard | 25 MPa |
| Hydraulic Flow – High Flow | 160 L/min |
| Loader Hydraulic Pressure | 25 MPa |
DRIVE TRAIN
| Travel Speed F&S | 11/7.8 km/h |
| Rubber Track | 450X86SDXSE3 |
ELECTRIC
| Voltage | 12 V |
| Capacity | 120 Ah |
SERVICE REFILL CAPACITY
| Cooling System | 12 L |
| Engine Crankcase | 10 L |
| Fuel Tank | 100 L |
| Hydraulic Tank | 38 L |
