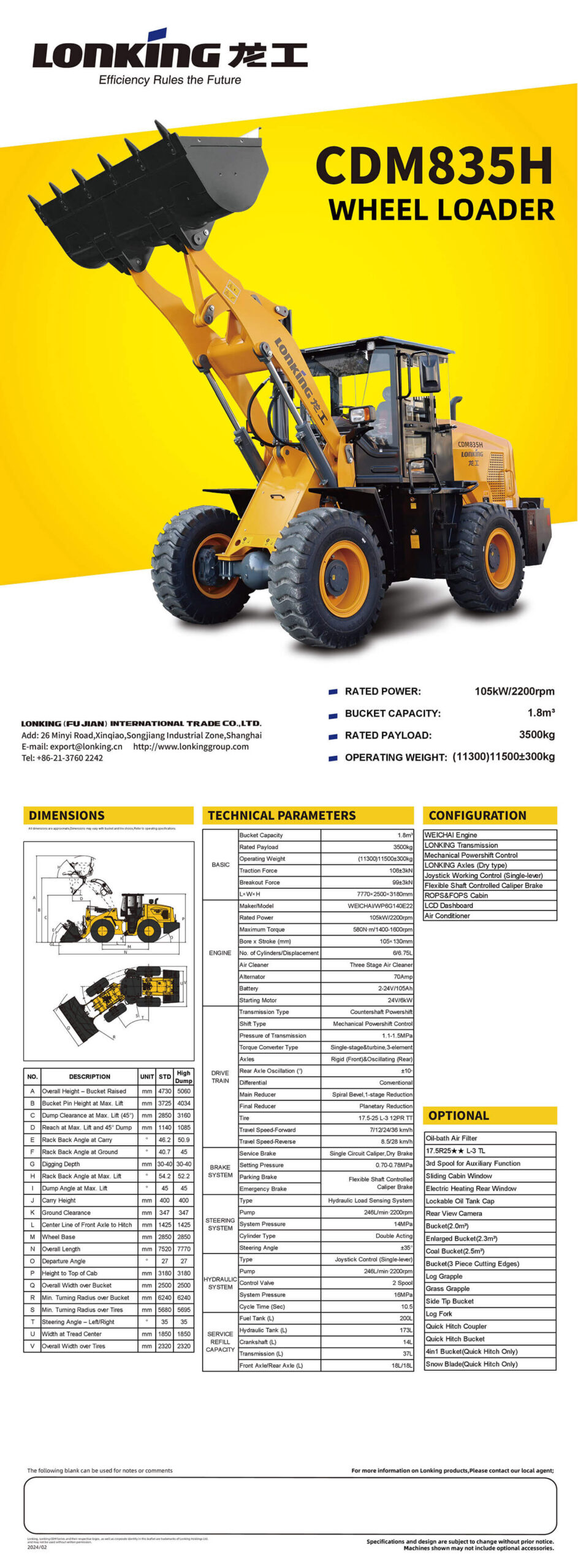

CDM835H Weichai Ⅱ+Mechanical Transmission
Wheel Loader
CDM835H Weichai Ⅱ+Mechanical Transmission
105kW/2200rpmRated Power
3500kgRated Payload
(11300)11500±300kgOperating Weight
1.8m³Bucket Capacity
Overview
The Lonking CDM835H Weichai Ⅱ+Mechanical Transmission is a wheel loader built for dependable, efficient operation. Powered by a high-efficiency engine producing 105kW/2200rpm, it handles a rated payload of 3500kg with an operating weight of (11300)11500±300kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 3500kg rated capacity provides the working power your jobsite demands
- Countershaft Powershift drivetrain for smooth, reliable power delivery
- High-performance hydraulic system operating at 14MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Bucket Capacity | 1.8m³ |
| Rated Payload | 3500kg |
| Operating Weight | (11300)11500±300kg |
| Traction Force | 106±3kN |
| Breakout Force | 99±3kN |
| L×W×H | 7770×2500×3180mm |
ENGINE
| Maker/Model | WEICHAI/WP6G140E22 |
| Rated Power | 105kW/2200rpm |
| Maximum Torque | 580N·m/1400-1600rpm |
| Bore x Stroke (mm) | 105×130mm |
| No. of Cylinders/Displacement | 6/6.75L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 70Amp |
| Battery | 2-24V/105Ah |
| Starting Motor | 24V/6kW |
DRIVE TRAIN
| Transmission Type | Countershaft Powershift |
| Shift Type | Mechanical Powershift Control |
| Pressure of Transmission | 1.1-1.5MPa |
| Torque Converter Type | Single-stage&turbine,3-element |
| Axles | Rigid (Front)&Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±10° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel,1-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 17.5-25 L-3 12PR TT |
| Travel Speed-Forward | 7/12/24/36 km/h |
| Travel Speed-Reverse | 8.5/28 km/h |
BRAKE SYSTEM
| Service Brake | Single Circuit Caliper,Dry Brake |
| Setting Pressure | 0.70-0.78MPa |
STEERING SYSTEM
| Type | Joystick Control (Single-lever) |
| Pump | 246L/min·2200rpm |
| System Pressure | 14MPa |
| Cylinder Type | Double Acting |
| Steering Angle | ±35° |
HYDRAULIC SYSTEM
| Type | Hydraulic Load Sensing System |
| Pump | 246L/min·2200rpm |
| Control Valve | 2 Spool |
| System Pressure | 16MPa |
| Cycle Time (Sec) | 10.5 |
SERVICE REFILL CAPACITY
| Fuel Tank (L) | 200L |
| Hydraulic Tank (L) | 173L |
| Crankshaft (L) | 14L |
| Transmission (L) | 37L |
| Front Axle/Rear Axle (L) | 18L/18L |
