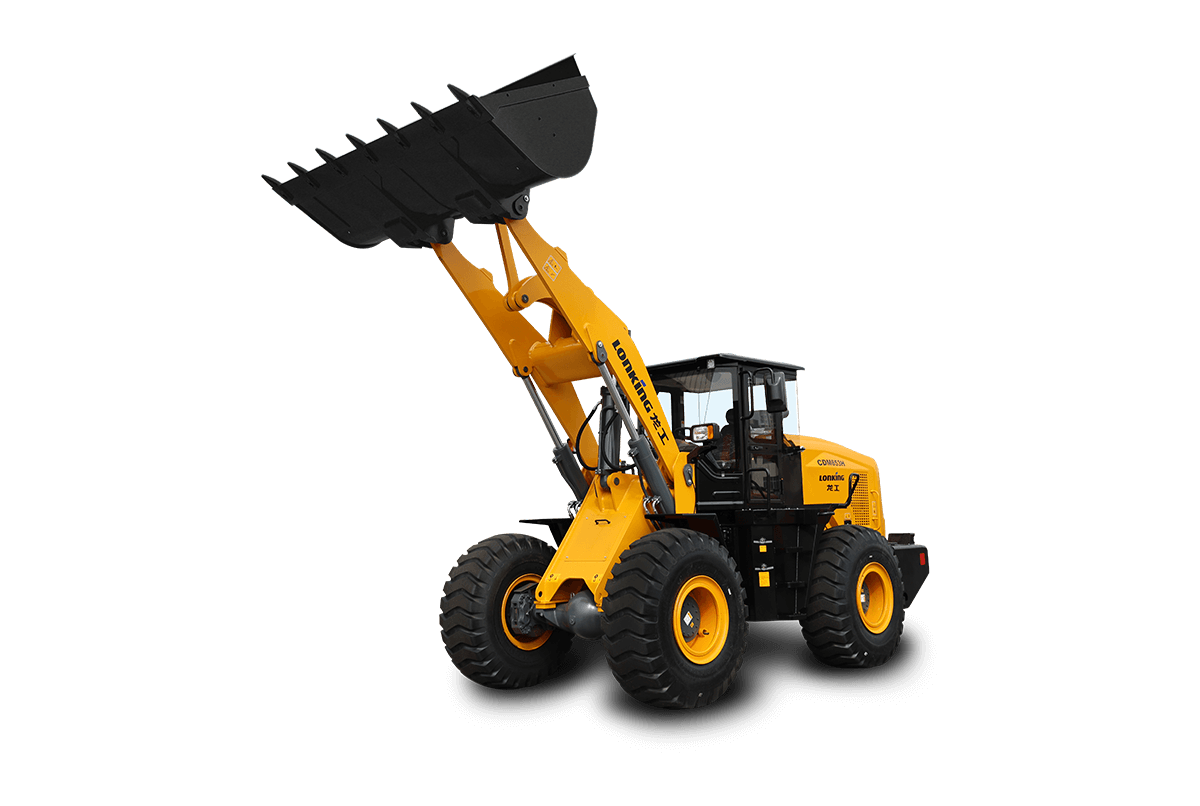

CDM853HG Weichai Ⅱ+Pilot Control (For Rus)
Wheel Loader
CDM853HG Weichai II+Pilot Control (For Rus)
162kW/2200rpmRated Power
5000 kgRated Payload
16200±300 kgOperating Weight
50°/45°Lift Capacity
Overview
The Lonking CDM853HG Weichai II+Pilot Control (For Rus) is a wheel loader built for dependable, efficient operation. Powered by a high-efficiency engine producing 162kW/2200rpm, it handles a rated payload of 5000 kg with an operating weight of 16200±300 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.

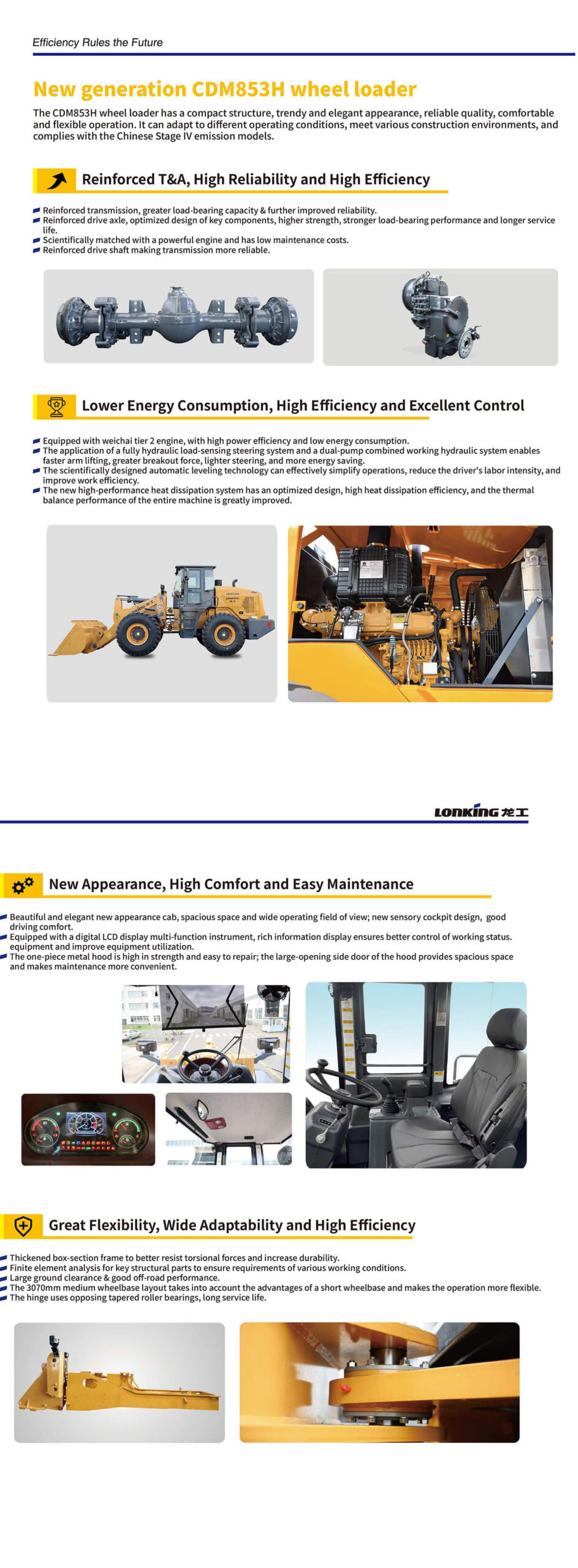

Key Features
- 5000 kg rated capacity provides the working power your jobsite demands
- Planetary Powershift drivetrain for smooth, reliable power delivery
- 50°/45° maximum lift keeps loading cycles fast and efficient
- High-performance hydraulic system operating at 15MPa
- Ergonomic operator cab for comfort and visibility across long work shifts

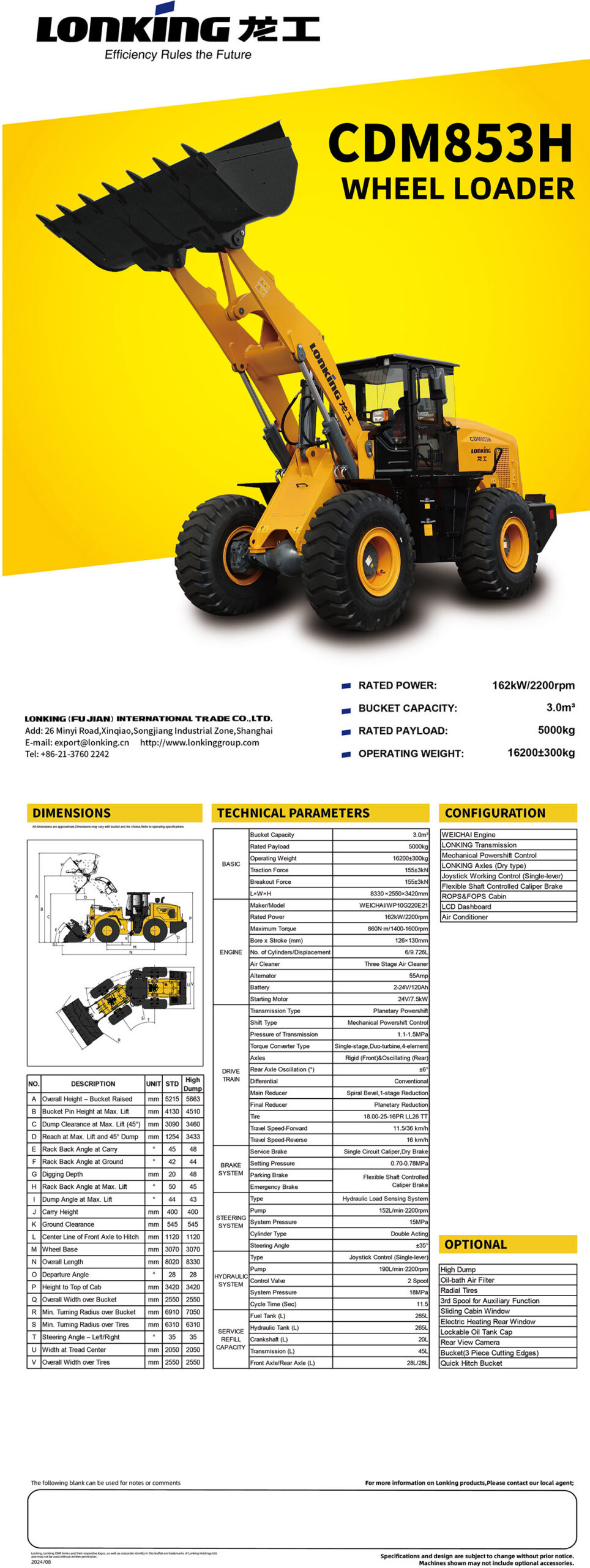

Technical Specifications
BASIC
| Bucket Capacity | 3.0 m³ |
| Rated Payload | 5000 kg |
| Operating Weight | 16200±300 kg |
| Traction Force | 155±3 kN |
| Breakout Force | 155±3 kN |
| L×W×H | 8330×2550×3420 mm |
| Maker/Model | WEICHAI/WP10G220E21 |
| Rated Power | 162kW/2200rpm |
| Maximum Torque | 860N·m/1400-1600rpm |
| Bore x Stroke (mm) | 126×130 mm |
ENGINE
| No. of Cylinders/Displacement | 6/9.726L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 55Amp |
| Battery | 2-24V/120Ah |
| Starting Motor | 24V/7.5kW |
DRIVE TRAIN
| Transmission Type | Planetary Powershift |
| Shift Type | Mechanical Powershift Control |
| Pressure of Transmission | 1.1-1.5MPa |
| Torque Converter Type | Single-stage, Duo-turbine, 4-element |
| Axles | Rigid (Front) & Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±6° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel, 1-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 18.00-25-16PR LL26 TT |
| Travel Speed-Forward | 11.5/36 km/h |
| Travel Speed-Reverse | 16 km/h |
BRAKE SYSTEM
| Service Brake | Single Circuit Caliper, Dry Brake |
| Setting Pressure | 0.70-0.78MPa |
| Parking Brake | Flexible Shaft Controlled Caliper Brake |
DIMENSIONS
| Rack Back Angle at Max. Lift | 50°/45° |
| Dump Angle at Max. Lift | 44°/43° |
| Carry Height | 400 mm/400mm |
| Ground Clearance | 545 mm/545mm |
| Center Line of Front Axle to Hitch | 1120 mm/1120mm |
| Wheel Base | 3070 mm/3070mm |
| Overall Length | 8020 mm/8330mm |
| Departure Angle | 28°/28° |
| Height to Top of Cab | 3420 mm/3420mm |
| Overall Width over Bucket | 2550 mm/2550mm |
| Min. Turning Radius over Bucket | 6910 mm/7050mm |
| Min. Turning Radius over Tires | 6310 mm/6310mm |
| Steering Angle – Left/Right | 35°/35° |
| Width at Tread Center | 2050 mm/2050mm |
| Overall Width over Tires | 2550 mm/2550mm |
STEERING SYSTEM
| Type | Hydraulic Load Sensing System |
| Pump | 152L/min@2200rpm |
| System Pressure | 15MPa |
| Cylinder Type | Double Acting |
| Steering Angle | ±35° |
HYDRAULIC SYSTEM
| Type | Joystick Control (Single-lever) |
| Pump | 190L/min@2200rpm |
| Control Valve | 2 Spool |
| System Pressure | 18MPa |
| Cycle Time (Sec) | 11.5 |
SERVICE REFILL CAPACITY
| Fuel Tank (L) | 285L |
| Hydraulic Tank (L) | 265L |
| Crankshaft (L) | 20L |
| Transmission (L) | 45L |
| Front Axle/Rear Axle (L) | 28L/28L |
OPTIONAL
