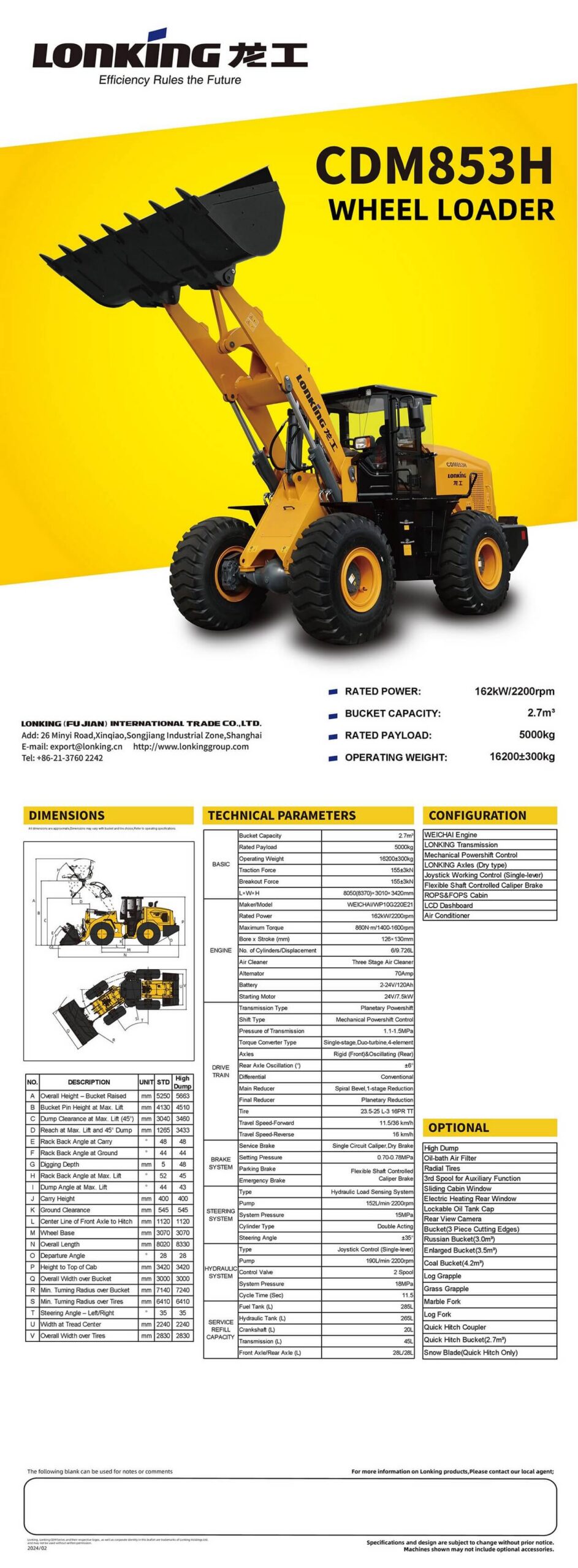

CDM853HG Weichai Ⅱ+Pilot Control
Wheel Loader
CDM853HG Weichai Ⅱ+Pilot Control
162kW/2200rpmRated Power
5000kgRated Payload
16200±300kgOperating Weight
2.7m³Bucket Capacity
Overview
The Lonking CDM853HG Weichai Ⅱ+Pilot Control is a wheel loader built for dependable, efficient operation. Powered by a high-efficiency engine producing 162kW/2200rpm, it handles a rated payload of 5000kg with an operating weight of 16200±300kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 5000kg rated capacity provides the working power your jobsite demands
- Planetary Powershift drivetrain for smooth, reliable power delivery
- High-performance hydraulic system operating at 15MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Bucket Capacity | 2.7m³ |
| Rated Payload | 5000kg |
| Operating Weight | 16200±300kg |
| Traction Force | 155±3kN |
| Breakout Force | 155±3kN |
| L×W×H | 8050(8370)×3010×3420mm |
ENGINE
| Maker/Model | WEICHAI/WP10G220E21 |
| Rated Power | 162kW/2200rpm |
| Maximum Torque | 860N·m/1400-1600rpm |
| Bore × Stroke (mm) | 126×130mm |
| No. of Cylinders/Displacement | 6/9.726L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 70Amp |
| Battery | 2-24V/120Ah |
| Starting Motor | 24V/7.5kW |
DRIVE TRAIN
| Transmission Type | Planetary Powershift |
| Shift Type | Mechanical Powershift Control |
| Pressure of Transmission | 1.1-1.5MPa |
| Torque Converter Type | Single-stage,Duo-turbine,4-element |
| Axles | Rigid (Front)&Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±6° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel,1-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 23.5-25 L-3 16PR TT |
| Travel Speed-Forward | 11.5/36 km/h |
| Travel Speed-Reverse | 16 km/h |
BRAKE SYSTEM
| Service Brake | Single Circuit Caliper,Dry Brake |
| Setting Pressure | 0.70-0.78MPa |
| Parking Brake | Flexible Shaft Controlled |
STEERING SYSTEM
| Type | Hydraulic Load Sensing System |
| Pump | 152L/min@2200rpm |
| System Pressure | 15MPa |
| Cylinder Type | Double Acting |
| Steering Angle | ±35° |
HYDRAULIC SYSTEM
| Type | Joystick Control (Single-lever) |
| Pump | 190L/min@2200rpm |
| Control Valve | 2 Spool |
| System Pressure | 18MPa |
| Cycle Time (Sec) | 11.5 |
SERVICE REFILL CAPACITY
| Fuel Tank (L) | 285L |
| Hydraulic Tank (L) | 265L |
| Crankshaft (L) | 20L |
| Transmission (L) | 45L |
| Front Axle/Rear Axle (L) | 28L/28L |
