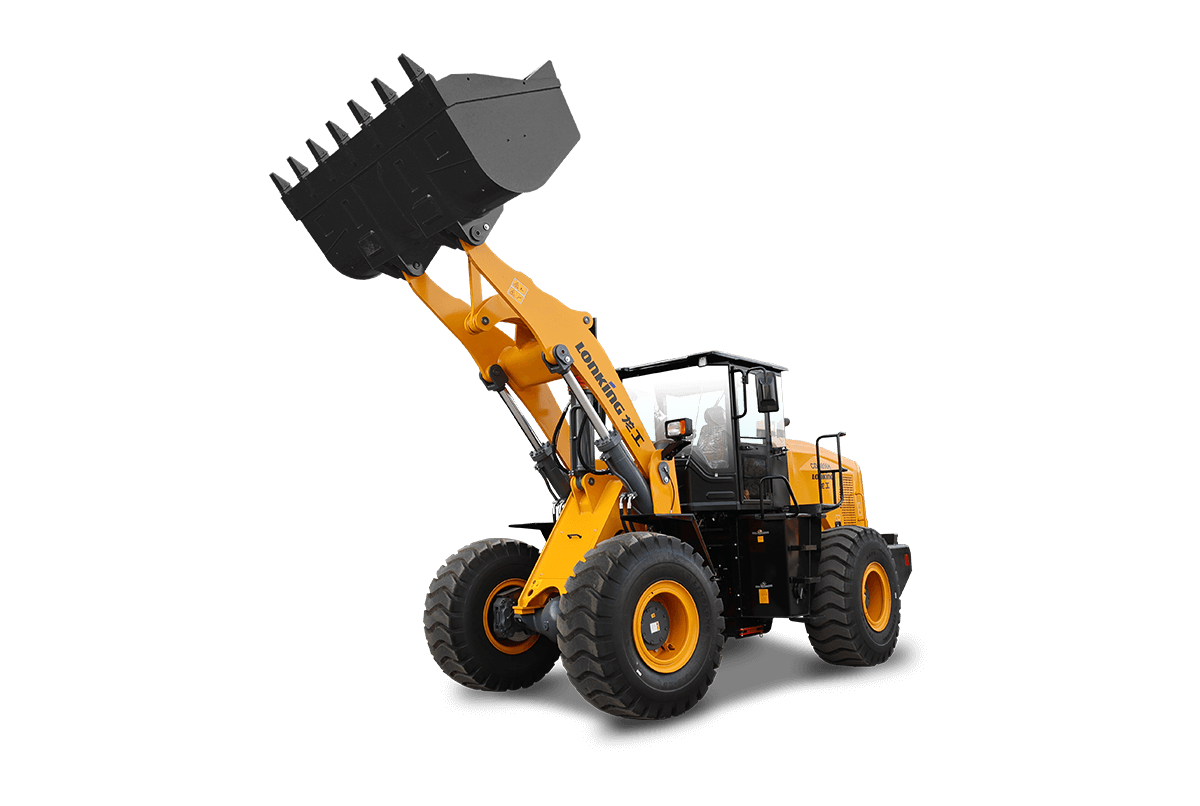

CDM856H Cummins Tier 4&Euro V, Electronic Transmission
Wheel Loader
CDM856H Cummins Tier 4&Euro V, Electronic Transmission
162kW/2200rpmRated Power
5500kgRated Payload
17200±300kgOperating Weight
3.6m³Bucket Capacity
Overview
The Lonking CDM856H Cummins Tier 4&Euro V, Electronic Transmission is a wheel loader built for dependable, efficient operation. Powered by a high-efficiency engine producing 162kW/2200rpm, it handles a rated payload of 5500kg with an operating weight of 17200±300kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.

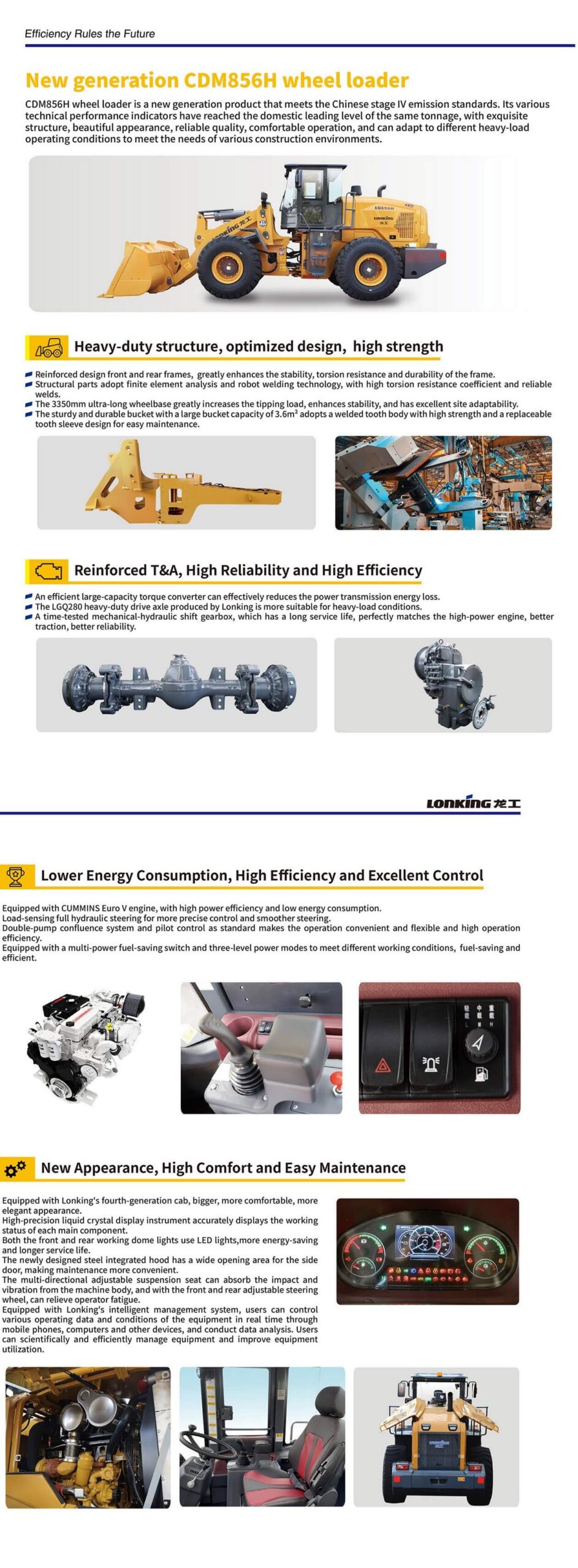

Key Features
- 5500kg rated capacity provides the working power your jobsite demands
- Planetary Powershift drivetrain for smooth, reliable power delivery
- High-performance hydraulic system operating at 15MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

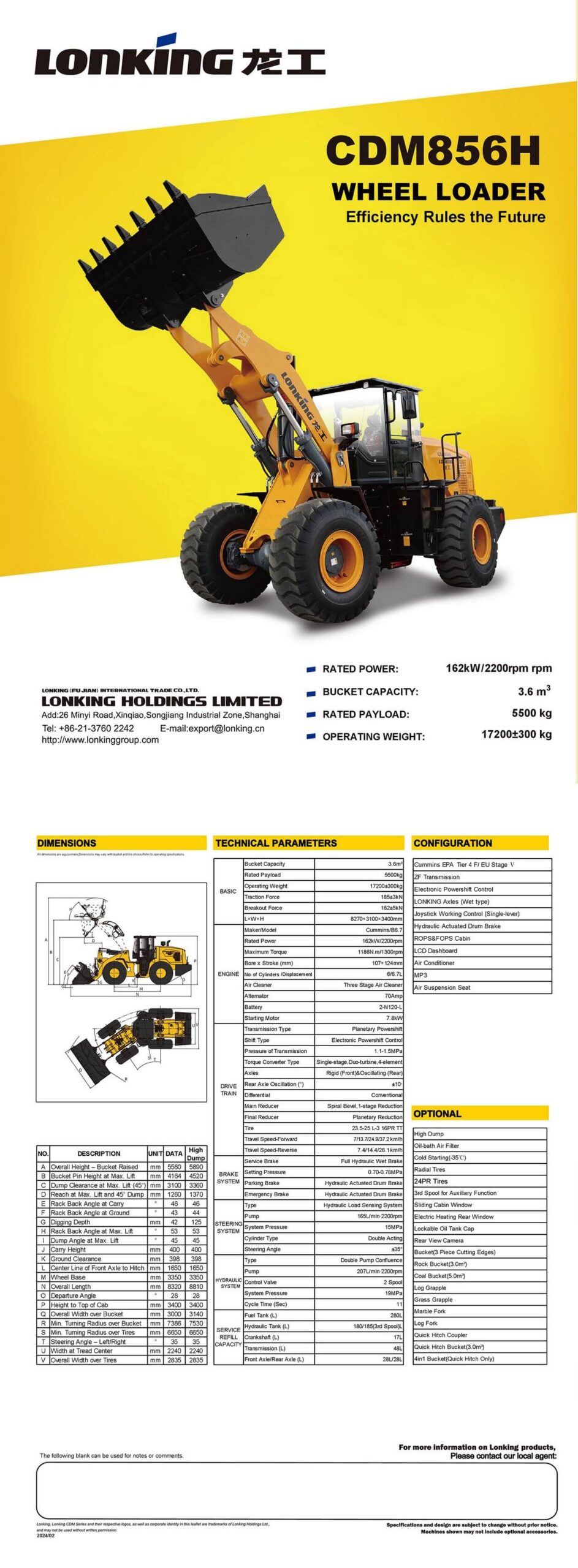

Technical Specifications
BASIC
| Bucket Capacity | 3.6m³ |
| Rated Payload | 5500kg |
| Operating Weight | 17200±300kg |
| Traction Force | 185±3kN |
| Breakout Force | 162±5kN |
| L×W×H | 8270×3100×3400mm |
ENGINE
| Maker/Model | Cummins/B6.7 |
| Rated Power | 162kW/2200rpm |
| Maximum Torque | 1186N.m/1300rpm |
| Bore x Stroke (mm) | 107×124mm |
| No. of Cylinders/Displacement | 6/6.7L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 70Amp |
| Battery | 2-N120-L |
| Starting Motor | 7.8kW |
DRIVE TRAIN
| Transmission Type | Planetary Powershift |
| Shift Type | Electronic Powershift Control |
| Pressure of Transmission | 1.1-1.5MPa |
| Torque Converter Type | Single-stage,Duo-turbine,4-element |
| Axles | Rigid (Front)&Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±10° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel,1-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 23.5-25 L-3 16PR TT |
| Travel Speed-Forward | 7/13.7/24.9/37.2 km/h |
| Travel Speed-Reverse | 7.4/14.4/26.1 km/h |
BRAKE
| Service Brake | Full Hydraulic Wet Brake |
| Setting Pressure | 0.70-0.78MPa |
STEERING SYSTEM
| Type | Double Acting |
| Pump | 165L/min·2200rpm |
| System Pressure | 15MPa |
| Cylinder Type | Double Acting |
| Steering Angle | ±35° |
HYDRAULIC SYSTEM
| Type | Double Pump Confluence |
| Pump | 207L/min·2200rpm |
| Control Valve | 2 Spool |
| System Pressure | 19MPa |
| Cycle Time (Sec) | 11 |
SERVICE REFILL CAPACITY
| Fuel Tank (L) | 280L |
| Hydraulic Tank (L) | 180/185(3rd Spool)L |
| Crankshaft (L) | 17L |
| Transmission (L) | 48L |
| Front Axle/Rear Axle (L) | 28L/28L |
