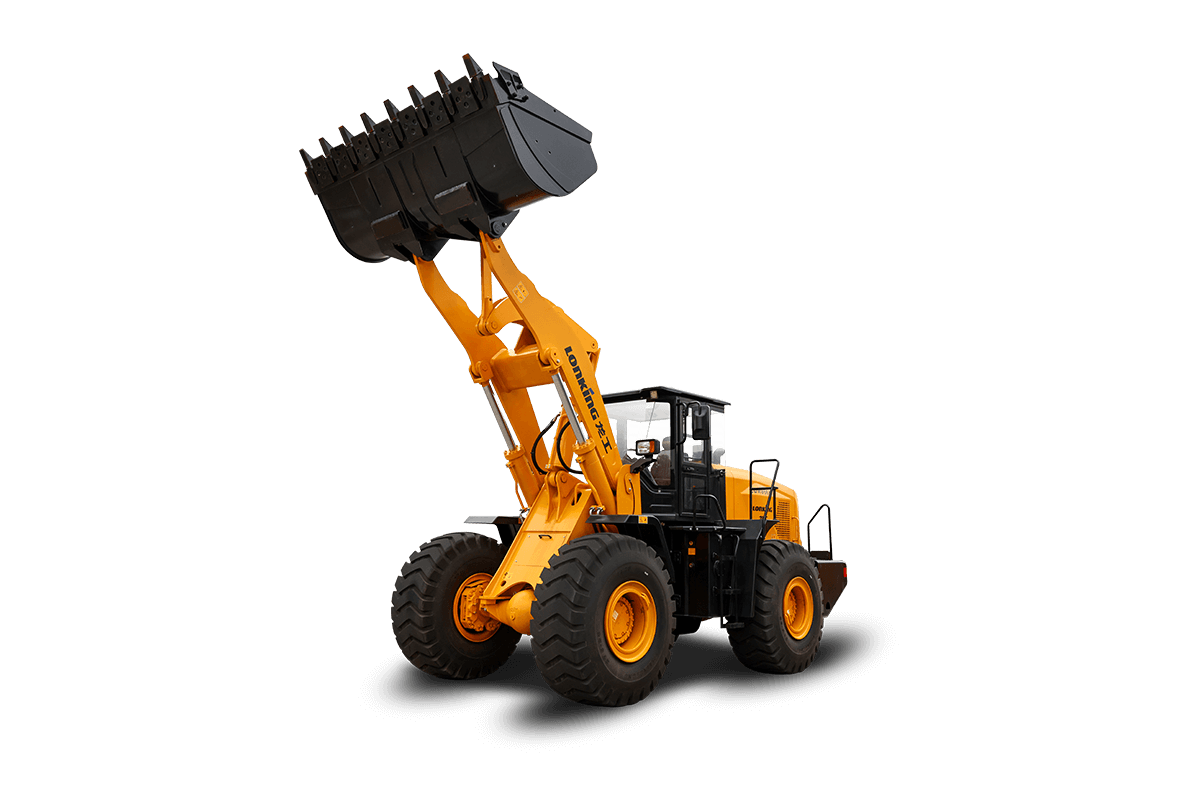

CDM866H Weichai Ⅲ+ZF Automatic Transmission
Wheel Loader
CDM866H Weichai Ⅲ+ZF Automatic Transmission
178kW/2200rpmRated Power
6500kgRated Payload
21700±300kgOperating Weight
4.2m³Bucket Capacity
Overview
The Lonking CDM866H Weichai Ⅲ+ZF Automatic Transmission is a wheel loader built for dependable, efficient operation. Powered by a high-efficiency engine producing 178kW/2200rpm, it handles a rated payload of 6500kg with an operating weight of 21700±300kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 6500kg rated capacity provides the working power your jobsite demands
- Planetary Powershift drivetrain for smooth, reliable power delivery
- High-performance hydraulic system operating at 16MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

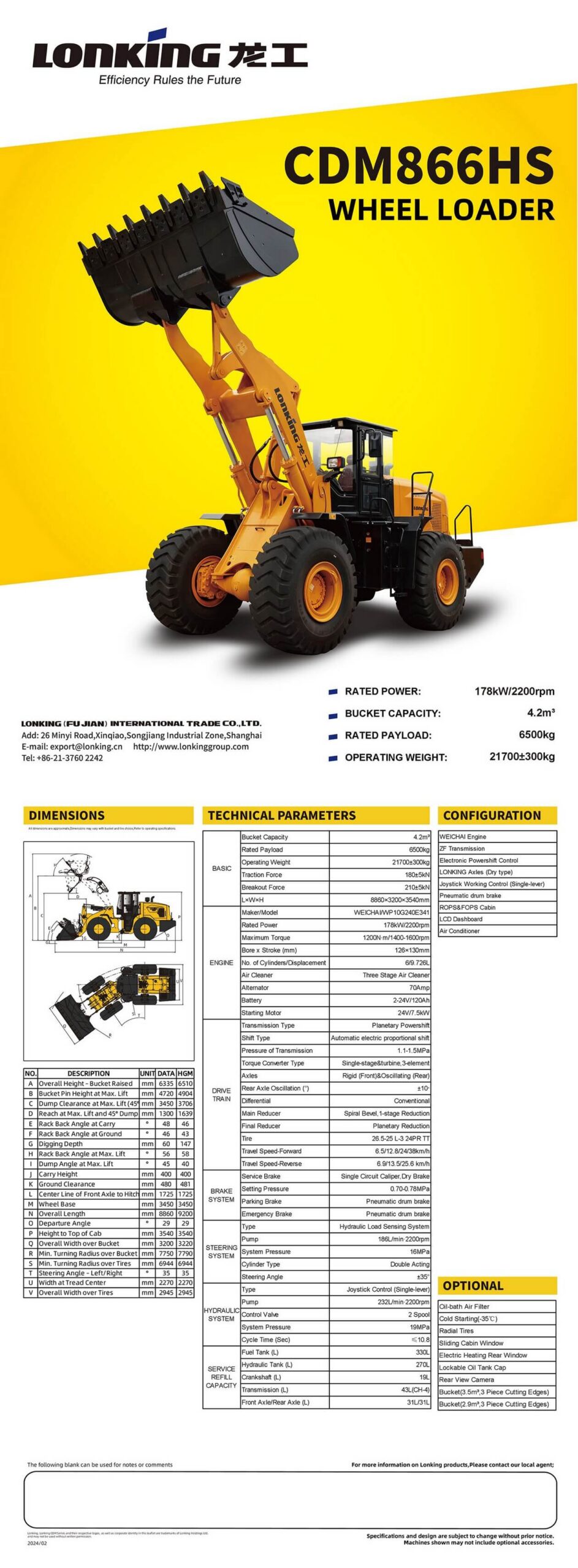

Technical Specifications
BASIC
| Bucket Capacity | 4.2m³ |
| Rated Payload | 6500kg |
| Operating Weight | 21700±300kg |
| Traction Force | 180±5kN |
| Breakout Force | 210±5kN |
| L×W×H | 8860×3200×3540mm |
ENGINE
| Maker/Model | WEICHAI/WP10G240E341 |
| Rated Power | 178kW/2200rpm |
| Maximum Torque | 1200N·m/1400-1600rpm |
| Bore x Stroke (mm) | 126×130mm |
| No. of Cylinders/Displacement | 6/9.72L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 70Amp |
| Battery | 2-24V/120Ah |
| Starting Motor | 24V/7.5kW |
DRIVE TRAIN
| Transmission Type | Planetary Powershift |
| Shift Type | Automatic electric proportional shift |
| Pressure of Transmission | 1.1-1.5MPa |
| Torque Converter Type | Single-stage&turbine,3-element |
| Axles | Rigid (Front)&Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±10 |
| Differential | Conventional |
| Main Reducer | Spiral Bevel, 1-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 26.5-25 L-3 24PR TT |
| Travel Speed-Forward | 6.5/12.8/24/38km/h |
| Travel Speed-Reverse | 6.9/13.5/25.6 km/h |
STEERING SYSTEM
| Type | Hydraulic Load Sensing System |
| Pump | 186L/min·2200rpm |
| System Pressure | 16MPa |
| Cylinder Type | Double Acting |
| Steering Angle | ±35° |
HYDRAULIC SYSTEM
| Type | Joystick Control (Single-lever) |
| Pump | 232L/min·2200rpm |
| Control Valve | 2 Spool |
| System Pressure | 19MPa |
| Cycle Time (Sec) | ≤10.8 |
SERVICE REFILL CAPACITY
| Fuel Tank (L) | 330L |
| Hydraulic Tank (L) | 270L |
| Crankshaft (L) | 19L |
| Transmission (L) | 43L(CH-4) |
| Front Axle/Rear Axle (L) | 31L/31L |
