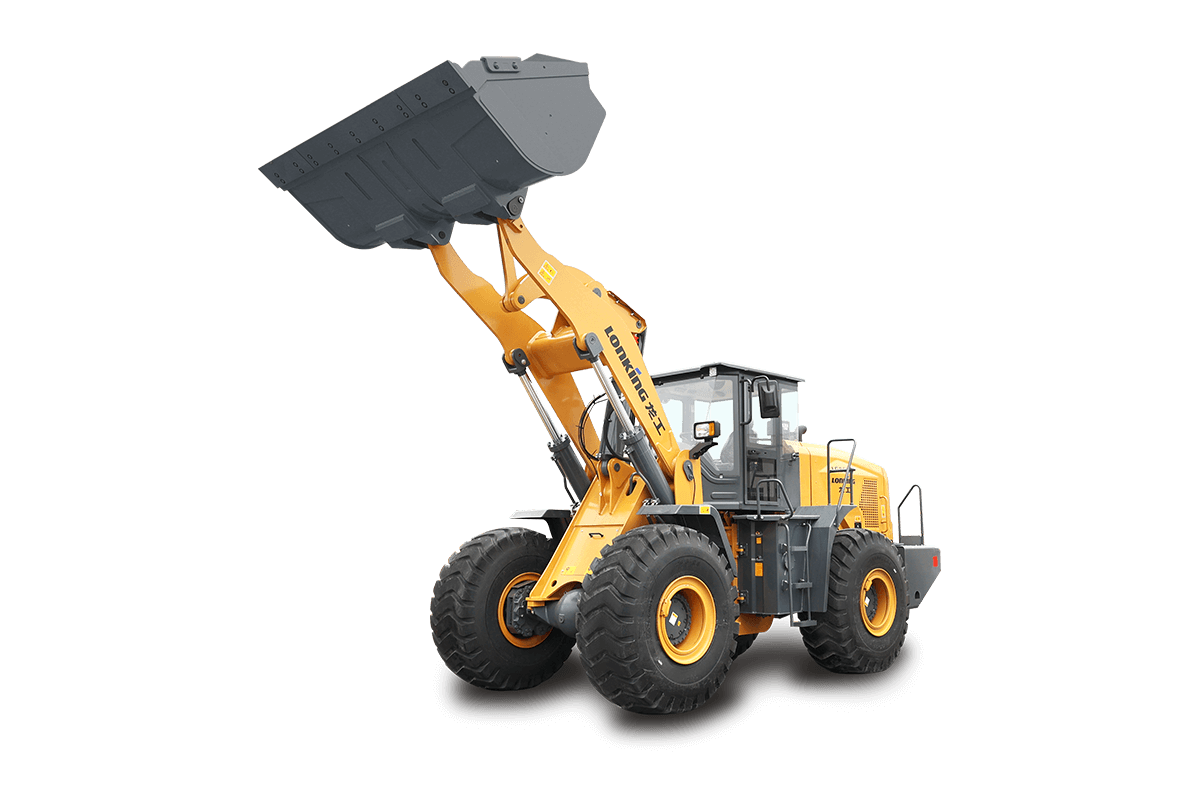

LG863HS Weichai Ⅲ+Planetary Transmission
Wheel Loader
LG863HS Weichai III+Planetary Transmission
178kW/2000rpmRated Power
6500 kgRated Payload
22000±300 kgOperating Weight
4.2 m³Bucket Capacity
Overview
The Lonking LG863HS Weichai III+Planetary Transmission is a wheel loader built for dependable, efficient operation. Powered by a high-efficiency engine producing 178kW/2000rpm, it handles a rated payload of 6500 kg with an operating weight of 22000±300 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 6500 kg rated capacity provides the working power your jobsite demands
- Planetary Powershift drivetrain for smooth, reliable power delivery
- High-performance hydraulic system operating at 16MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Bucket Capacity | 4.2 m³ |
| Rated Payload | 6500 kg |
| Operating Weight | 22000±300 kg |
| Traction Force | 200±5 kN |
| Breakout Force | 210±5 kN |
| L×W×H | 8800×3200×3540 mm |
ENGINE
| Maker/Model | WEICHAI/WP10G240E341 |
| Rated Power | 178kW/2000rpm |
| Maximum Torque | 1200N·m/1400-1600rpm |
| Bore x Stroke (mm) | 126×130 mm |
| No. of Cylinders/Displacement | 6/9.726L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 70Amp |
| Battery | 2-24V/120Ah |
| Starting Motor | 24V/7.5kW |
DRIVE TRAIN
| Transmission Type | Planetary Powershift |
| Shift Type | Mechanical Powershift Control |
| Pressure of Transmission | 1.2-1.5MPa |
| Torque Converter Type | Single-stage, Duo-turbine, 4-element |
| Axles | Rigid (Front) & Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±10° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel, 1-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 26.5-25 L-3 24PR TT |
| Travel Speed-Forward | 13/36 km/h |
| Travel Speed-Reverse | 17.5 km/h |
BRAKE SYSTEM
| Service Brake | Single Circuit Caliper, Dry Brake |
| Setting Pressure | 0.70-0.78MPa |
| Parking Brake | Air Actuated Caliper Brake |
| Emergency Brake | Air Actuated Caliper Brake |
STEERING SYSTEM
| Type | Hydraulic Load Sensing System |
| Pump | 165L/min·2200rpm |
| System Pressure | 16MPa |
| Cylinder Type | Double Acting |
| Steering Angle | ±35° |
DIMENSIONS
| Center Line of Front Axle to Hitch | 1700 mm |
| Wheel Base | 3400 mm |
| Overall Length | 8800/9150 mm |
| Departure Angle | 30° |
| Height to Top of Cab | 3540 mm |
| Overall Width over Bucket | 3200/3220 mm |
| Min. Turning Radius over Bucket | 7675/7794 mm |
| Min. Turning Radius over Tires | 6865 mm |
| Steering Angle – Left/Right | 35° |
| Width at Tread Center | 2270 mm |
| Overall Width over Tires | 2945 mm |
HYDRAULIC SYSTEM
| Type | Double Pump Confluence |
| Pump | 258.5L/min·2200rpm |
| Control Valve | 2 Spool |
| System Pressure | 19MPa |
| Cycle Time (Sec) | ≤10.5 |
SERVICE REFILL CAPACITY
| Fuel Tank (L) | 330L |
| Hydraulic Tank (L) | 270L |
| Crankshaft (L) | 19L |
| Transmission (L) | 63L |
| Front Axle/Rear Axle (L) | 31L/31L |
FEATURES
