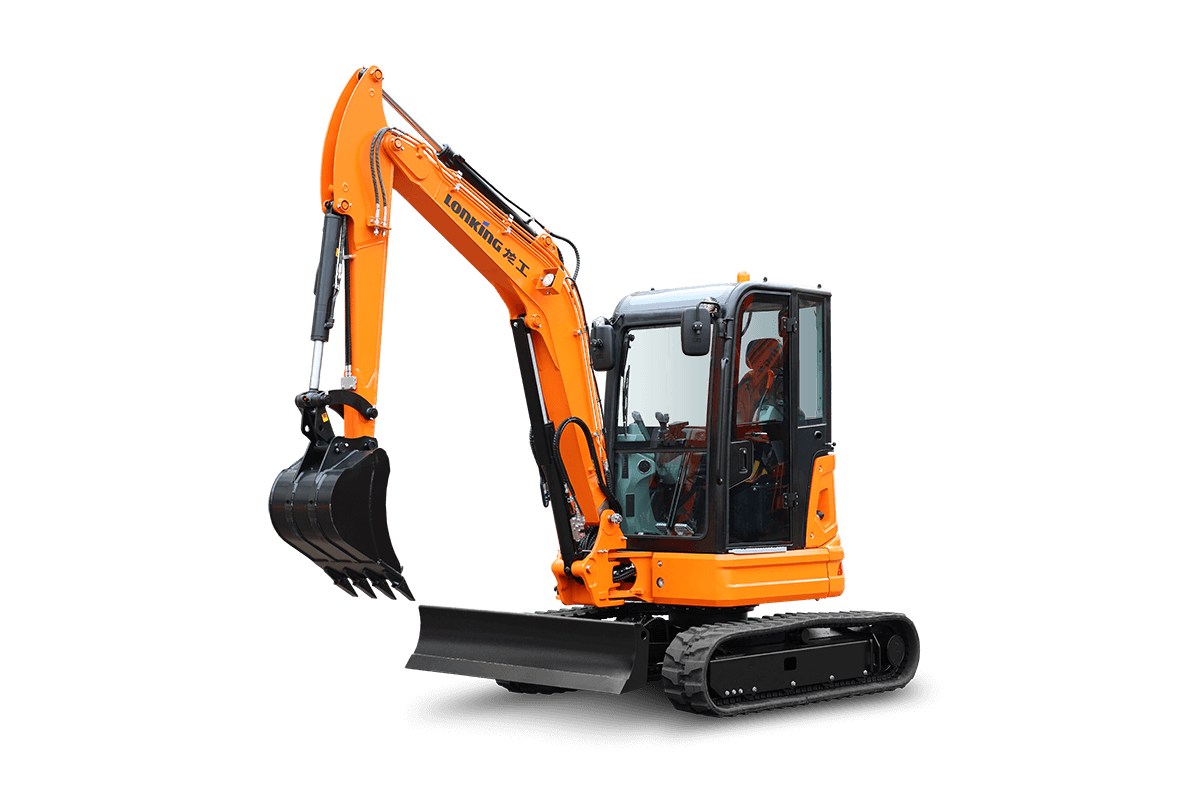

CDM6035 Kubota Euro V&Tier IV
Excavator
CDM6035 Kubota Euro V&Tier IV
18.2 kW/2200 rpmRated Power
3850 kgOperating Weight
0.11 m³Bucket Capacity
2.3/4.0 km/hTravel Speed
Overview
The Lonking CDM6035 Kubota Euro V&Tier IV is a excavator built for dependable, efficient operation. Powered by a D1703 engine producing 18.2 kW/2200 rpm, with an operating weight of 3850 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 18.2 kW/2200 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 3850 kg |
| Standard bucket Capacity | 0.11 m³ |
| Standard bucket Width | 520 mm |
| Max.Travel speed | 2.3/4.0 km/h |
| Max.Swing speed | 9.5 rpm |
| Grade ability | 30° |
| Ground pressure | 34 kPa |
| Max.Traction force | 27.4 KN |
| Boom swing angle (L/R) | 72°/44° |
ENGINE
| Engine brand | KUBOTA |
| Engine model | D1703 |
| Rated power | 18.2 kW/2200 rpm |
| Displacement | 1.647 L |
| Fuel tank | 40 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 88 L/min |
| Max.Working pressure | 24.5 MPa |
| Max.Pilot pressure | 3.2 Mpa |
| Max.Arm digging force | 18(19.8) kN |
| Max.Bucket digging force | 31.8 kN |
| Hydraulic oil tank | 41 L |
CHASSIS
| Track width | 300 mm |
| Track type | Rubber crawler |
| Carrier rollers number | 1( each side) |
| Track rollers number | 4( each side) |
ELECTRIC SYSTEM
| System voltage | 12 V |
| Battery capacity | 12 V,45 Ah |
