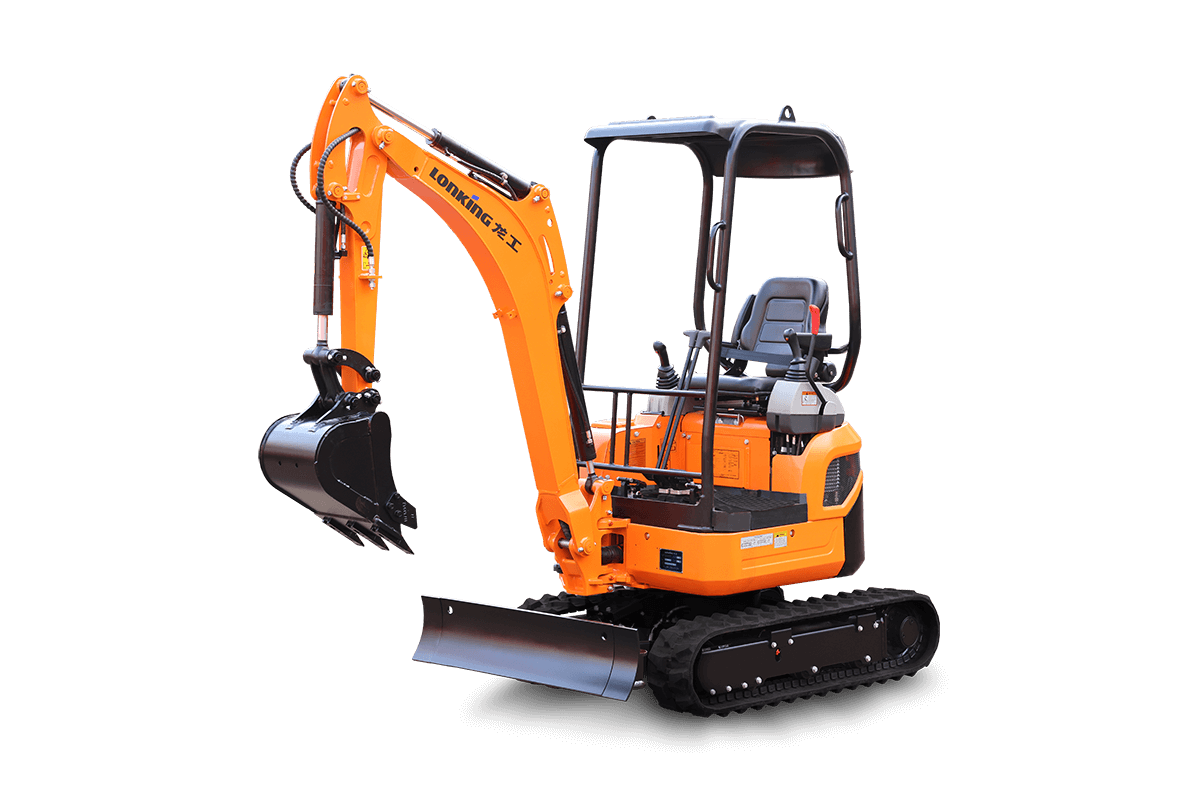

CDM6016 Kubota Euro V & Tier 4F
Excavator
CDM6016 Kubota Euro V & Tier 4F
11.8 kW/2300 rpmRated Power
1700 kgOperating Weight
2.3/4.0 km/hTravel Speed
0.898 LDisplacement
Overview
The Lonking CDM6016 Kubota Euro V & Tier 4F is a excavator built for dependable, efficient operation. Powered by a D902-E4B-CBH-1 engine producing 11.8 kW/2300 rpm, with an operating weight of 1700 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 11.8 kW/2300 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

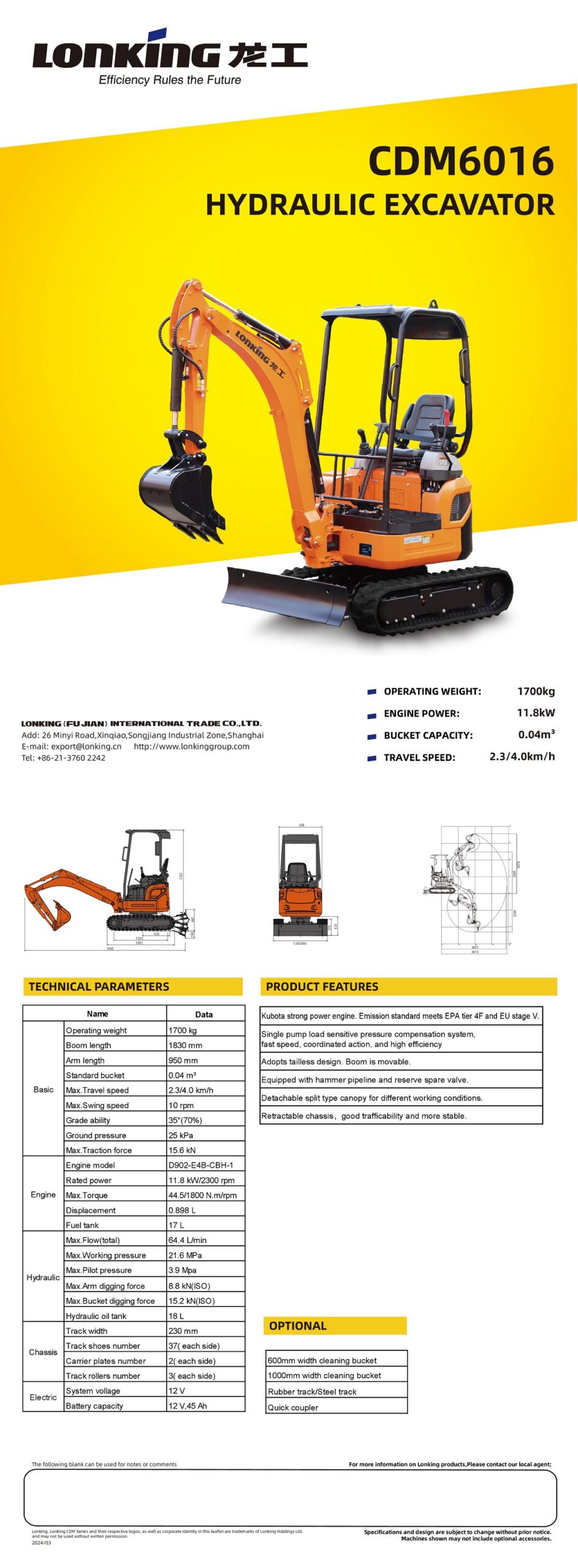

Technical Specifications
BASIC
| Operating weight | 1700 kg |
| Boom length | 1830 mm |
| Arm length | 950 mm |
| Standard bucket | 0.04 m³ |
| Max.Travel speed | 2.3/4.0 km/h |
| Max.Swing speed | 10 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 25 kPa |
| Max.Traction force | 15.6 kN |
ENGINE
| Engine model | D902-E4B-CBH-1 |
| Rated power | 11.8 kW/2300 rpm |
| Max.Torque | 44.5/1800 N.m/rpm |
| Displacement | 0.898 L |
| Fuel tank | 17 L |
HYDRAULIC
| Max.Flow(total) | 64.4 L/min |
| Max.Working pressure | 21.6 MPa |
| Max.Pilot pressure | 3.9 Mpa |
| Max.Arm digging force | 8.8 kN(ISO) |
| Max.Bucket digging force | 15.2 kN(ISO) |
| Hydraulic oil tank | 18 L |
CHASSIS
| Track width | 230 mm |
| Track shoes number | 37(each side) |
| Carrier rollers number | 2(each side) |
| Track rollers number | 3(each side) |
ELECTRIC
| System voltage | 12 V |
| Battery capacity | 12 V,45 Ah |
