CDM6950 Volvo Ⅲ
Excavator
CDM6950 Volvo III
565 kW/1900 rpmRated Power
92600-93500 kgOperating Weight
2.4/3.9 km/hTravel Speed
16.12 LDisplacement
Overview

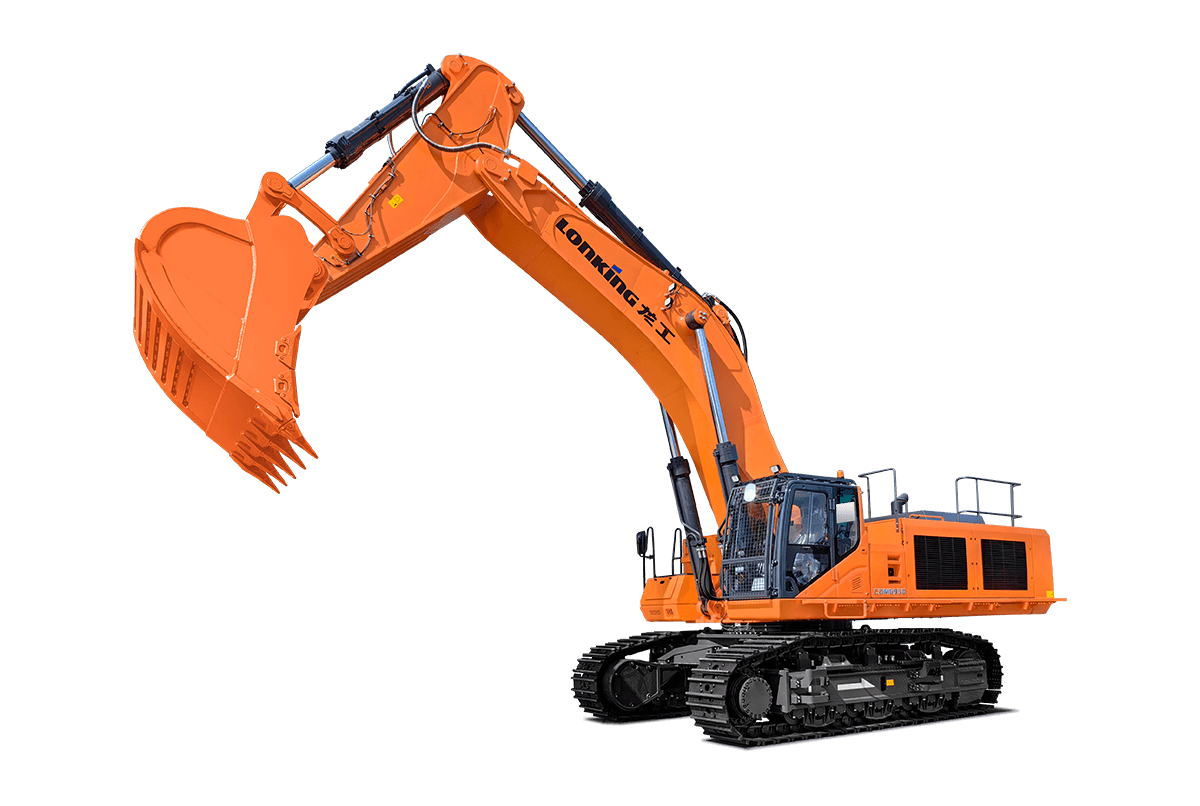

The Lonking CDM6950 Volvo III is a excavator built for dependable, efficient operation. Powered by a TAD1643VE-B engine producing 565 kW/1900 rpm, with an operating weight of 92600-93500 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 565 kW/1900 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 92600-93500 kg |
| Boom length | 7100 mm |
| Arm length | 2950 mm |
| Standard bucket | 4.5-6.5 m3 |
| Max. Travel speed | 2.4/3.9 km/h |
| Max. Swing speed | 6.5 rpm |
| Grade ability | 35 deg(70%) |
| Ground pressure | 129 kPa |
| Max. Traction force | 396 kN |
ENGINE
| Engine model | TAD1643VE-B |
| Rated power | 565 kW/1900 rpm |
| Max. Torque | 3240/1300 N.m/rpm |
| Displacement | 16.12 L |
| Fuel tank | 1300 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 502×2 L/min |
| Max. Working pressure | 34.3 MPa |
| Max. Pilot pressure | 3.9 MPa |
| Max. Arm digging force | 373 kN |
| Max. Bucket digging force | 495 kN |
| Hydraulic oil tank | 650 L |
CHASSIS
| Track width | 650 mm |
| Track shoes number | 50 (each side) |
| Carrier rollers number | 3 (each side) |
| Track rollers number | 9 (each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 200 Ah x2 |
