CDM6150W
Excavator
CDM6150W
97 kW/2300 rpmRated Power
13500 kgOperating Weight
28 km/hTravel Speed
3.9 LDisplacement
Overview

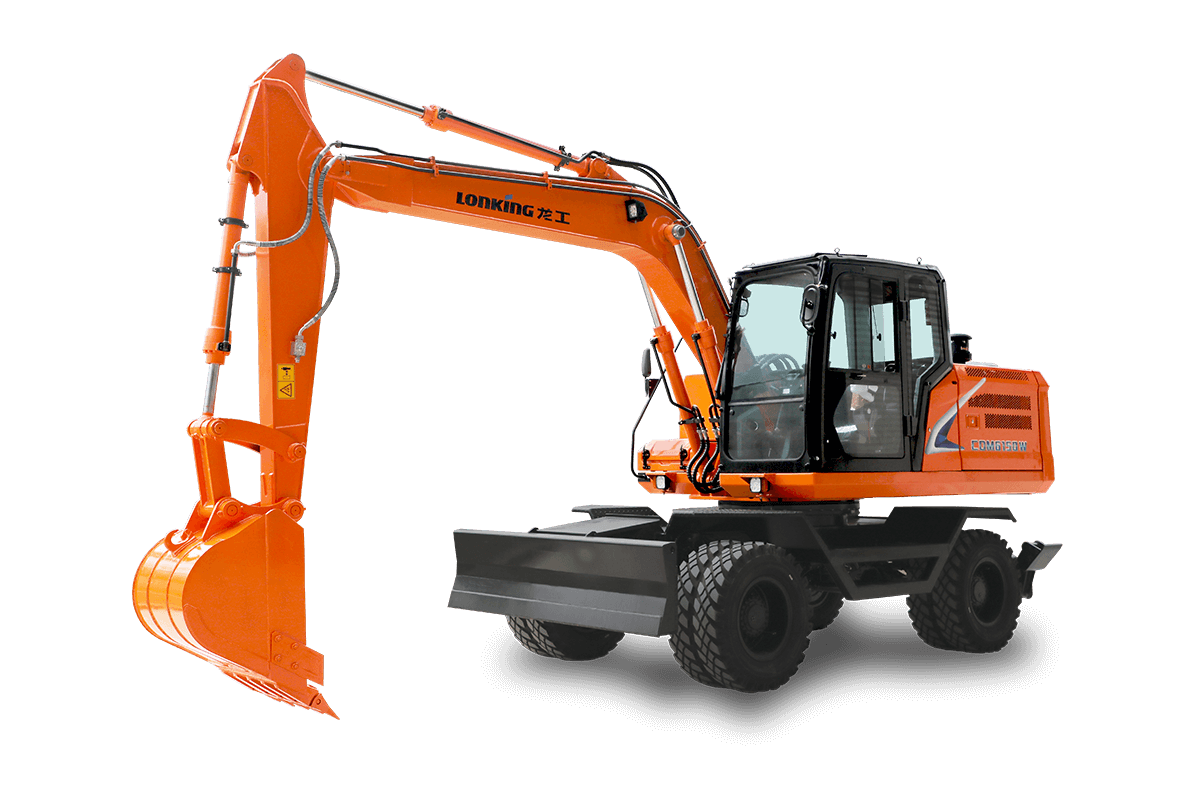

The Lonking CDM6150W is a excavator built for dependable, efficient operation. Powered by a QSB3.9 engine producing 97 kW/2300 rpm, with an operating weight of 13500 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 97 kW/2300 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

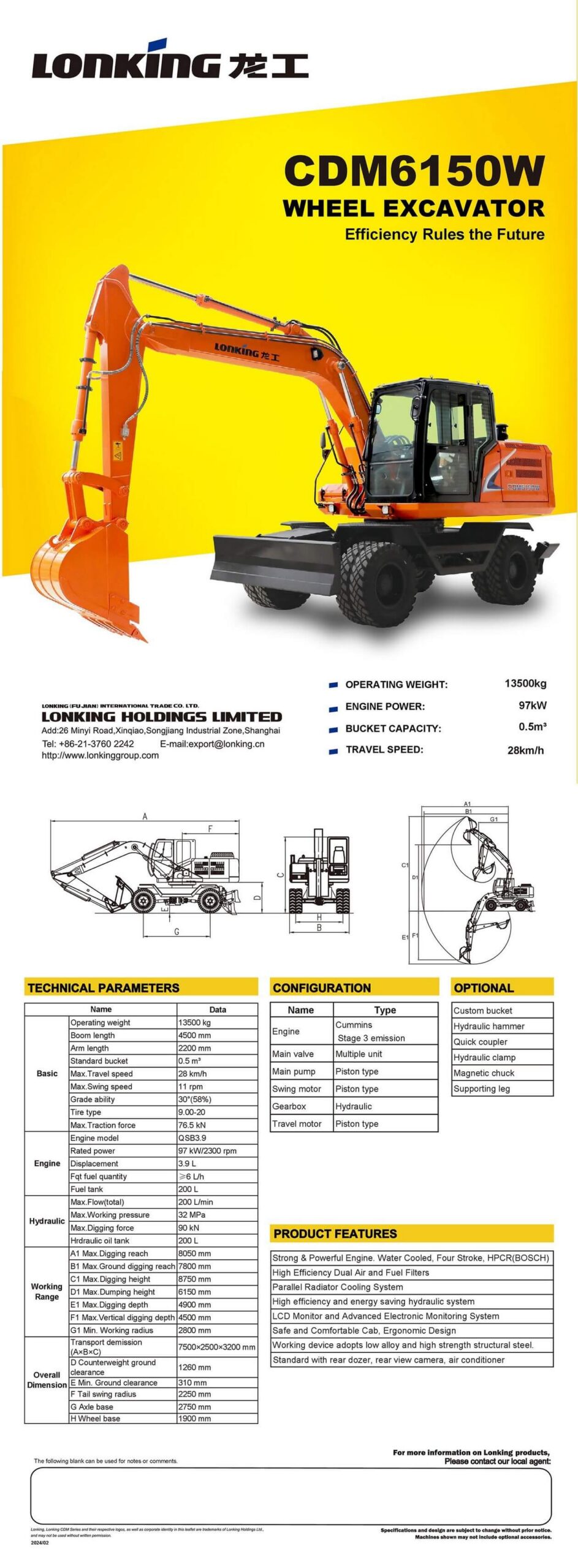

Technical Specifications
BASIC
| Operating weight | 13500 kg |
| Boom length | 4500 mm |
| Arm length | 2200 mm |
| Standard bucket | 0.5 m3 |
| Max. Travel speed | 28 km/h |
| Max. Swing speed | 11 rpm |
| Grade ability | 30 deg(58%) |
| Tire type | 9.00-20 |
| Max. Traction force | 76.5 kN |
ENGINE
| Engine model | QSB3.9 |
| Rated power | 97 kW/2300 rpm |
| Displacement | 3.9 L |
| Fuel quantity | >=6 L/h |
| Fuel tank | 200 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 200 L/min |
| Max. Working pressure | 32 MPa |
| Max. Digging force | 90 kN |
| Hydraulic oil tank | 200 L |
WORKING RANGE
| A1 Max. Digging reach | 8050 mm |
| B1 Max. Ground digging reach | 7800 mm |
| C1 Max. Digging height | 8750 mm |
| D1 Max. Dumping height | 6150 mm |
| E1 Max. Digging depth | 4900 mm |
| F1 Max. Vertical digging depth | 4500 mm |
| G1 Min. Working radius | 2800 mm |
OVERALL DIMENSION
| Transport dimension AxBxC | 7500x2500x3200 mm |
| D Counterweight ground clearance | 1260 mm |
| E Min. Ground clearance | 310 mm |
| F Tail swing radius | 2250 mm |
| G Axle base | 2750 mm |
| H Wheel base | 1900 mm |
