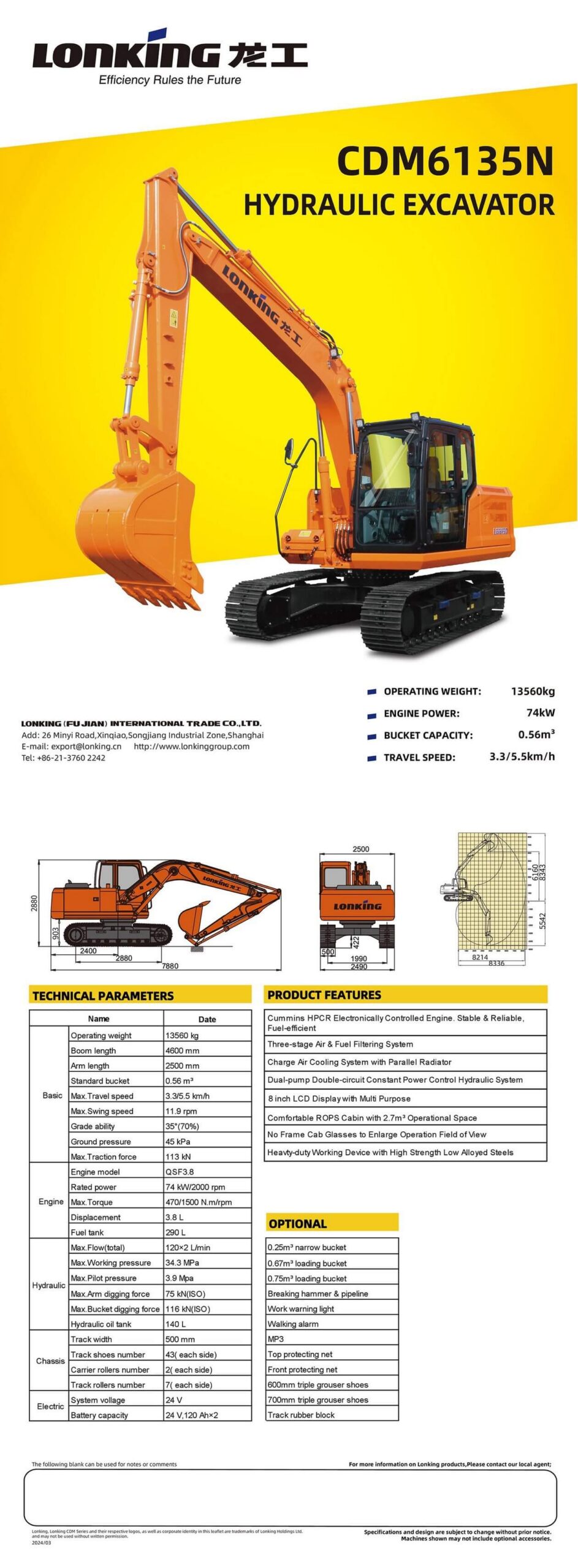

CDM6135 Cummins III, Imported HYD
Excavator
CDM6135 Cummins III, Imported HYD
74 kW/2000 rpmRated Power
13560 kgOperating Weight
3.3/5.5 km/hTravel Speed
3.8 LDisplacement
Overview
The Lonking CDM6135 Cummins III, Imported HYD is a excavator built for dependable, efficient operation. Powered by a QSF3.8 engine producing 74 kW/2000 rpm, with an operating weight of 13560 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 74 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 13560 kg |
| Boom length | 4600 mm |
| Arm length | 2500 mm |
| Standard bucket | 0.56 m³ |
| Max.Travel speed | 3.3/5.5 km/h |
| Max.Swing speed | 11.9 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 45 kPa |
| Max.Traction force | 113 kN |
ENGINE
| Engine model | QSF3.8 |
| Rated power | 74 kW/2000 rpm |
| Max.Torque | 470/1500 N.m/rpm |
| Displacement | 3.8 L |
| Fuel tank | 290 L |
HYDRAULIC
| Max.Flow(total) | 120×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 Mpa |
| Max.Arm digging force | 75 kN(ISO) |
| Max.Bucket digging force | 116 kN(ISO) |
| Hydraulic oil tank | 140 L |
CHASSIS
| Track width | 500 mm |
| Track shoes number | 43(each side) |
| Carrier rollers number | 2(each side) |
| Track rollers number | 7(each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24 V,120 Ah×2 |
