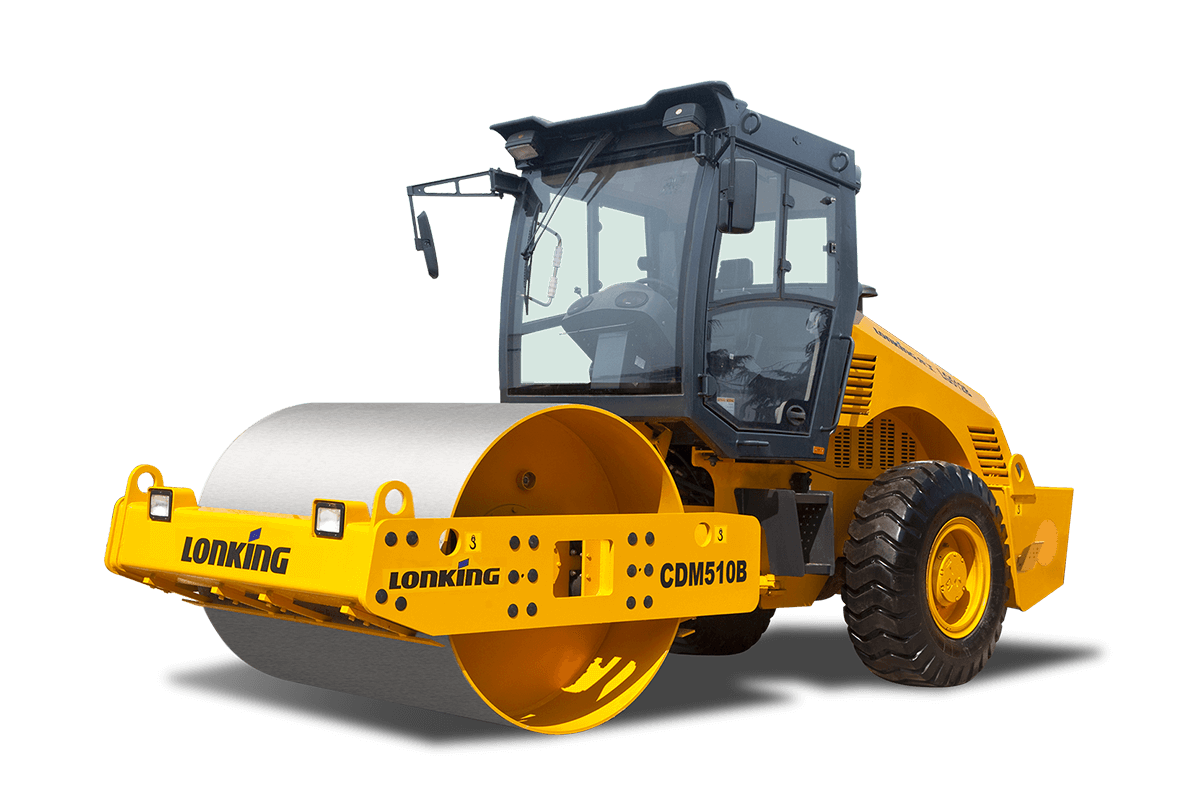

CDM510B B Series Single Drum Mechanical Transmission

ByLONKING GLOBAL
Name   Data
BASIC Operating Weight 10000kg
Weight Burden on Front Drum 5000 kg
Weight Burden on Rear Wheel 5000 kg
Min Ground Clearance(h) 440mm
Wheelbase (L1) 3135mm
Grade Ability 30%
L×W1×H（mm ） 5975×2260×3250
ENGINE Manufacturer YU CHAI
Model YC6B120-T20
Displacement 6.871
Fuel consumption 21L
Rated Power 85 kW
Rated Speed 2200 rpm
Emissions Standard Nation Ⅱ
DRIVE TRAIN Drive Type Mechanical Drive
Travel Speed Forward 1.9/3.3/9.1 km/h
Travel Speed Reverse 1.9/3.3 km/h
Tire Type 17.5-25 12PR
Min.Turning Radius 6500 mm
Steering Angle 30 °
Swing Angle 10 °
VIBRATION SYSTEM Width of Drum (W2) 2120 mm
Diameter of Drum 1520 mm
Rim Thickness of Drum 20 mm
Static Linear Load 235N/cm
Vibration Type Open-loop Hydraulic
Centrifugal Force 240/150 KN
Vibration Frequency 28 Hz
Nominal Amplitude 1.8/0.9 mm
BRAKE SYSTEM Service Brake Air Booster Caliper
Rear Axle Brake
Parking Brake Shaft Controlling
Brake of Gear Box
ELECTRIC Voltage 24 V
Capacity 120×2 Ah
SERVICE REFILL Fuel Tank Capacity 240 L
Hydraulic Tank Capacity 240 L
