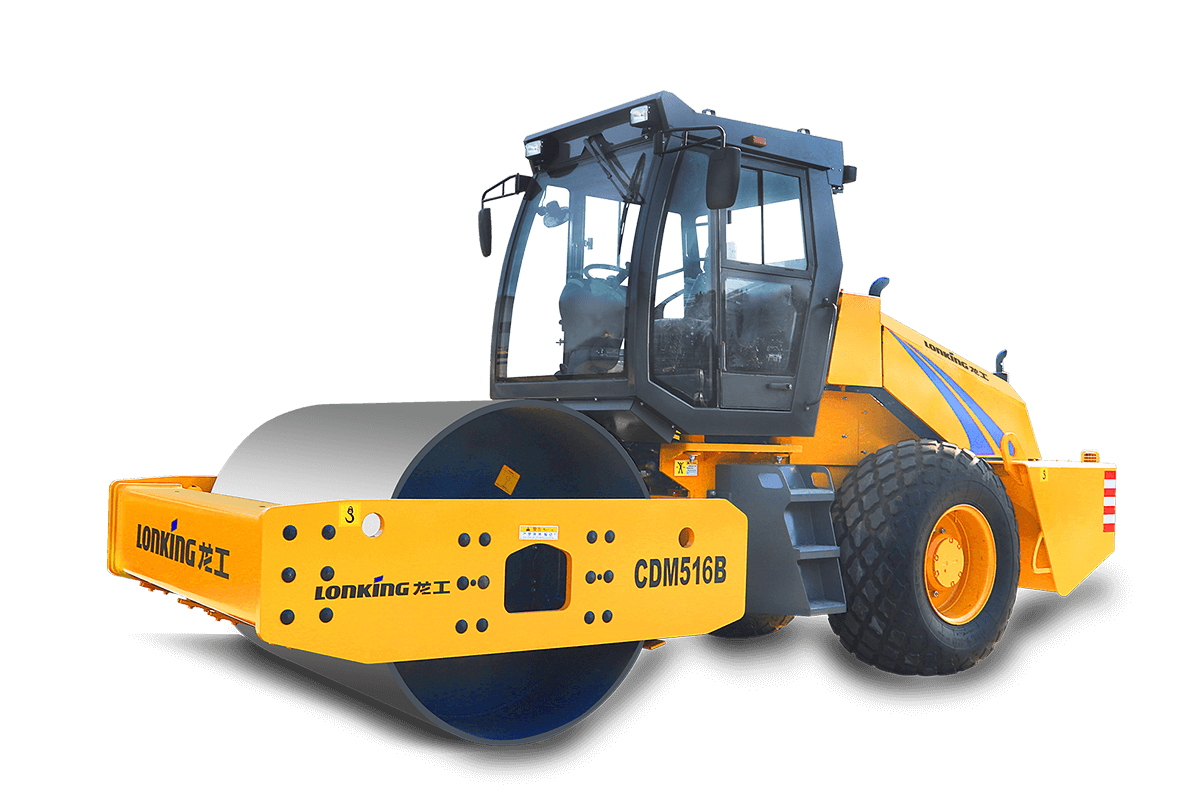

CDM516B B Series Single Drum Mechanical Transmission

ByLONKING GLOBAL
Name Data
BASIC Operating Weight 16000kg
Weight Burden on Front Drum 8000 kg
Weight Burden on Rear Wheel 8000 kg
Min Ground Clearance(h) 430mm
Wheelbase (L1) 3080mm
Grade Ability 30%
L×W1×H (mm) 6080×2300×3200
ENGINE Manufacturer WEI CHAI
Model WP6G160E201
Displacement 6.75L
Fuel consumption 29L
Rated Power 118 kW
Rated Speed 2000 rpm
Emissions Standard Nation Ⅱ
DRIVE TRAIN Drive Type Mechanical Drive
Travel Speed Forward 2/3.6/7.6 km/h
Travel Speed Reverse 2/3.6 km/h
Tire Type 23.1-26 12PR
Min.Turning Radius 6500 mm
Steering Angle 33 °
Swing Angle 10 °
VIBRATION SYSTEM Width of Drum (W2) 2120 mm
Diameter of Drum 1520 mm
Rim Thickness of Drum 30 mm
Static Linear Load 377N/cm
Vibration Type Open-loop Hydraulic Vibration
Centrifugal Force 310/190 kN
Vibration Frequency 28 Hz
Nominal Amplitude 1.8/0.9 mm
BRAKE SYSTEM Service Brake Air Booster Caliper
Rear Axle Brake
Parking Brake Shaft Controlling
Brake of Gear Box
ELECTRIC Voltage 24 V
Capacity 120×2 Ah
SERVICE REFILL Fuel Tank Capacity 335 L
Hydraulic Tank Capacity 220 L
