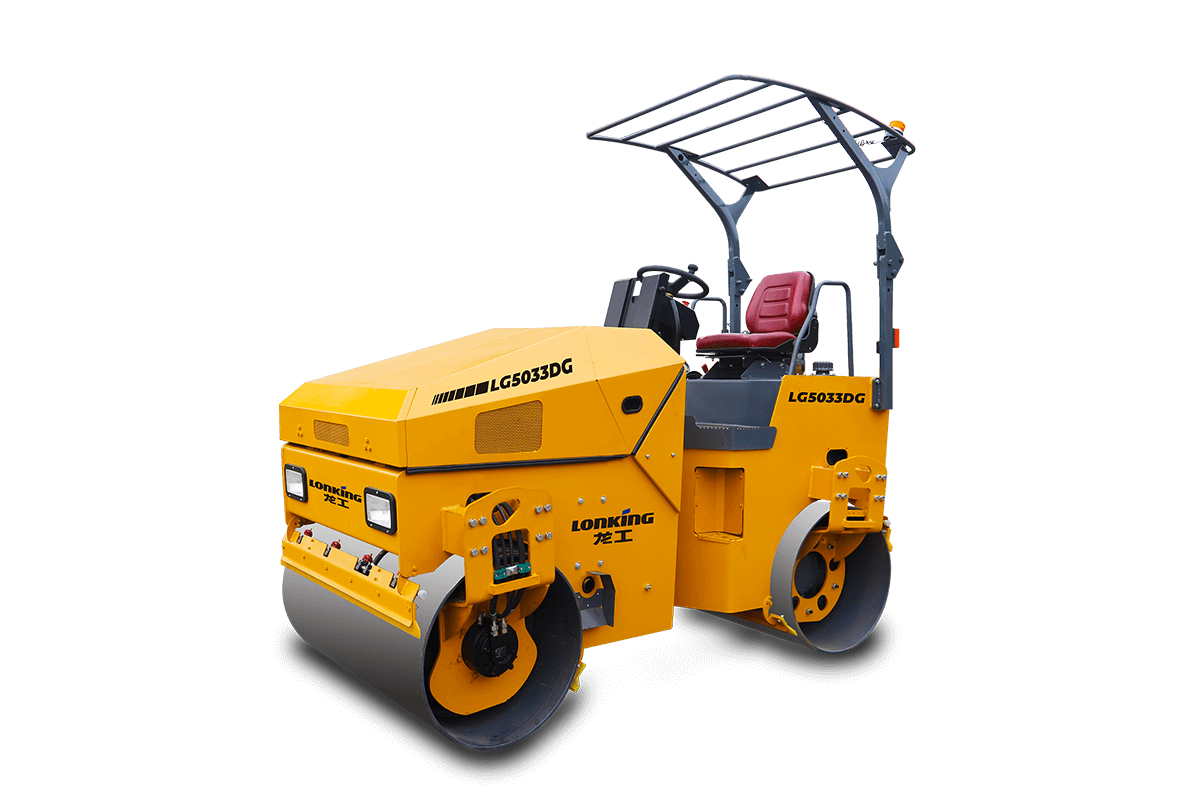

CDM5033DG Double Drum Vibratory Roller
Road Roller
CDM5033DG Double Drum Vibratory Roller
28 kWRated Power
3000 kgOperating Weight
0-8 km/hTravel Speed
1.91LDisplacement
Overview
The Lonking CDM5033DG Double Drum Vibratory Roller is a road roller built for dependable, efficient operation. Powered by a QUAN CHAI engine producing 28 kW, with an operating weight of 3000 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks. Engine options meet Nation Ⅲ emission standards for broad market compliance.
Key Features
- 28 kW engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating Weight | 3000 kg |
| Weight Burden on Front Drum | 1500 kg |
| Weight Burden on Rear Wheel | 1500 kg |
| Min Ground Clearance(h) | 252 |
| Wheelbase (L1) | 2000 |
| Grade Ability | 30% |
| L×W1×H (mm) | 2750×1350×2760 |
ENGINE
| Manufacturer | QUAN CHAI |
| Model | 3B2-38C31 |
| Displacement | 1.91L |
| Fuel consumption | 7.7L |
| Rated Power | 28 kW |
| Rated Speed | 2600 rpm |
| Emissions Standard | Nation Ⅲ |
DRIVE TRAIN
| Drive Type | Hydrostatic Drive |
| Travel Speed Forward | 0-8 km/h |
| Travel Speed Reverse | 0-8 km/h |
| Tire Type | — |
| Min.Turning Radius | 4000 mm |
| Steering Angle | 33 ° |
| Swing Angle | ±10 ° |
VIBRATION SYSTEM
| Width of Drum (W2) | 1200 mm |
| Diameter of Drum | 710 mm |
| Rim Thickness of Drum | 12 mm |
| Static Linear Load | 125/125 N/cm |
| Vibration Type | Open-loop Hydraulic Vibration |
| Centrifugal Force | 30 kN |
| Vibration Frequency | 50 Hz |
| Nominal Amplitude | 0.5 mm |
BRAKE SYSTEM
| Service Brake | Hydraulic Lock Front and Rear Brake |
| Parking Brake | Oil Cut Front and Rear Wheel Brake |
ELECTRIC
| Voltage | 12 V |
| Capacity | 120×2 Ah |
SERVICE REFILL
| Fuel Tank Capacity | 50 L |
| Hydraulic Tank Capacity | 75 L |
