CDM303 Kubota Euro V & Tier 4F
Skid Steer Loader
CDM303 Kubota Euro V & Tier 4F
18.5 kW/3000 rpmRated Power
344 kgRated Payload
1640 kgOperating Weight
0.15 m3Bucket Capacity
Overview

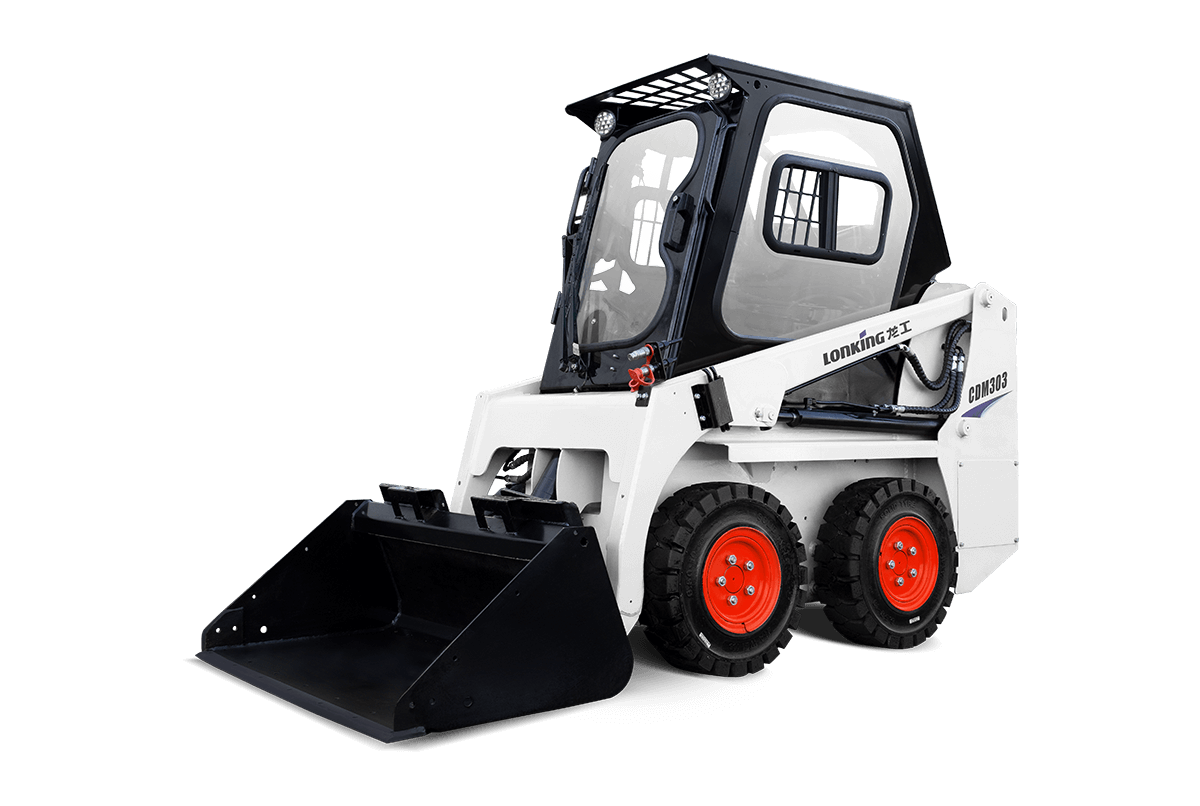

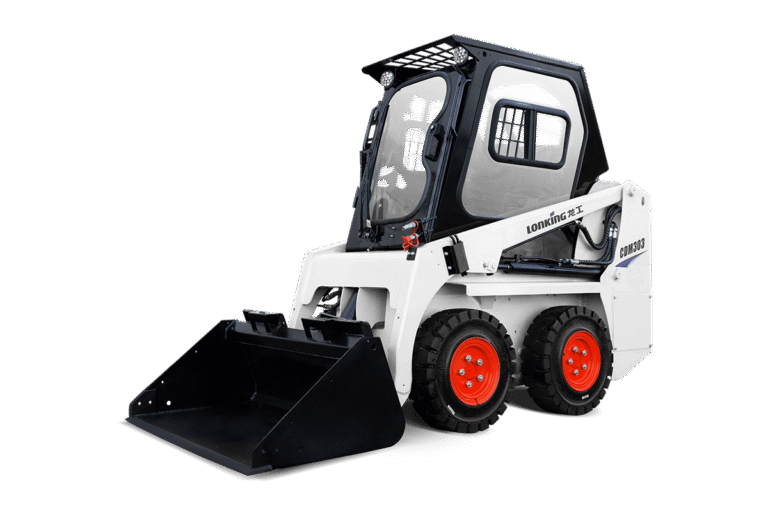

The Lonking CDM303 Kubota Euro V & Tier 4F is a skid steer loader built for dependable, efficient operation. Powered by a D1105-E4B-LKN-1 engine producing 18.5 kW/3000 rpm, it handles a rated payload of 344 kg with an operating weight of 1640 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks. Engine options meet Euro V, EPA Tier 4F, National IV emission standards for broad market compliance.
Key Features
- 344 kg rated capacity provides the working power your jobsite demands
- 18.5 kW/3000 rpm engine output tuned for productive operation
- High-performance hydraulic system operating at 21 MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating Weight | 1640 kg |
| Rated Payload | 344 kg |
| Bucket Capacity | 0.15 m3 |
| Tipping Load | 720 kg |
| Breakout Force | 8.3 kN |
ENGINE
| Engine Model | D1105-E4B-LKN-1 |
| Rated Power | 18.5 kW/3000 rpm |
| Displacement | 1.123 L |
| Fuel consumption | 270 g/kw*h |
| Stroke | 78.4 mm |
| Bore | 78 mm |
| Emission Standard | Euro V, EPA Tier 4F, National IV |
HYDRAULIC SYSTEM
| Hydraulic Flow – Standard | 60 L/min@2200rpm |
| Type | Pilot control |
| Hydraulic Pressure – Standard | 21 MPa |
DRIVE TRAIN
| Travel Speed F&R | 9.5 km/h |
| Tyre | 6.5-10/5.00 |
ELECTRIC
| Voltage | 12 V |
| Capacity | 120 Ah |
SERVICE REFILL CAPACITY
| Travelling motor displacement | 245 cc/r |
| Cooling System | 6 L |
| Engine Crankcase | 5 L |
| Fuel Tank | 35 L |
| Hydraulic Tank | 14 L |
