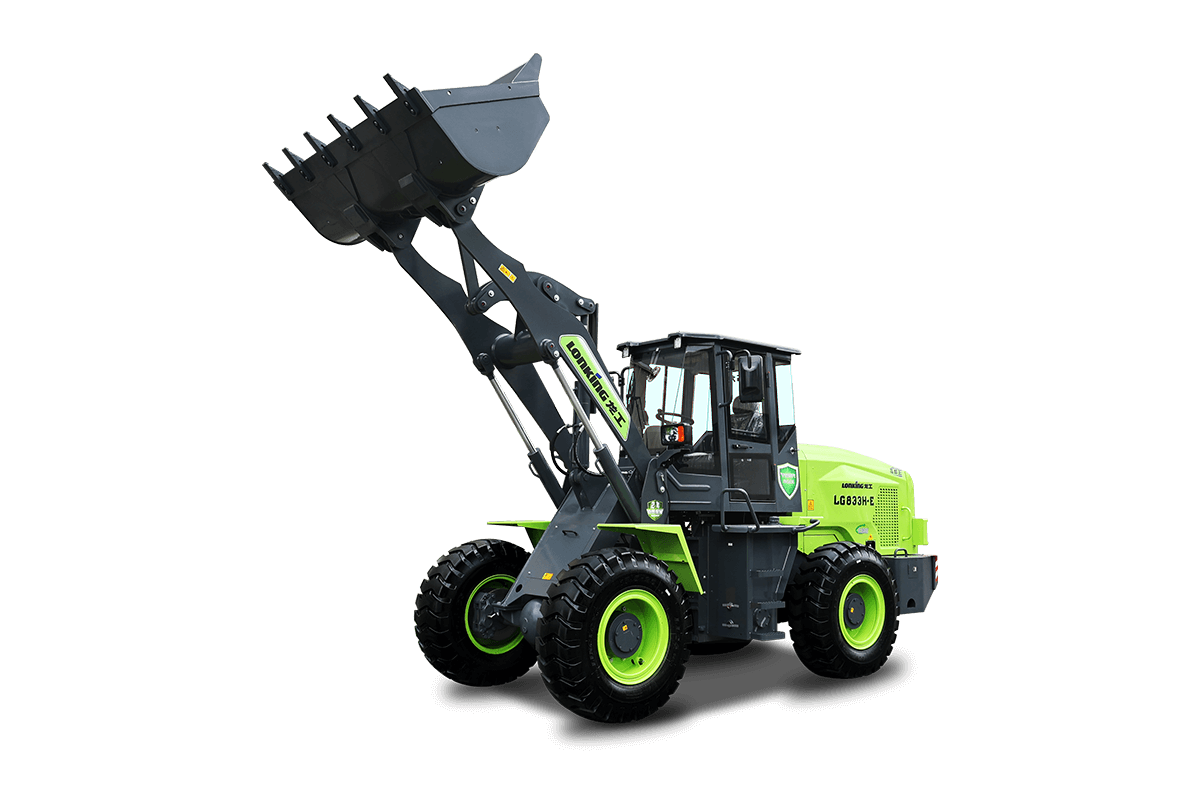

LG833T-E
Wheel Loader
LG833T-E
70 kwRated Power
3000 kgRated Payload
10200±300 kgOperating Weight
53.8°Lift Capacity
Overview
The Lonking LG833T-E is a wheel loader built for dependable, efficient operation. Powered by a CATL engine producing 70 kw, it handles a rated payload of 3000 kg with an operating weight of 10200±300 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 3000 kg rated capacity provides the working power your jobsite demands
- Countershaft drivetrain for smooth, reliable power delivery
- 53.8° maximum lift keeps loading cycles fast and efficient
- High-performance hydraulic system operating at 14 MPa
- Ergonomic operator cab for comfort and visibility across long work shifts
Technical Specifications
BASIC
| Bucket Capacity | 1.7 m³ |
| Rated Payload | 3000 kg |
| Operating Weight | 10200±300 kg |
| Traction Force | 95±5 kN |
| Breakout Force | 95±5 kN |
| L×W×H | 7542×2500×3230 mm |
DIMENSIONS
| Digging Depth | – |
| Rack Back Angle at Max. Lift | 53.8° |
| Dump Angle at Max. Lift | 42° |
| Carry Height | 195 mm |
| Ground Clearance | 362 mm |
| Center Line of Front Axle to Hitch | 1275 mm |
| Wheel Base | 2900 mm |
| Overall Length | 7542 mm |
| Departure Angle | 25° |
| Height to Top of Cab | 3230 mm |
| Overall Width over Bucket | 2500 mm |
| Min. Turning Radius over Bucket | 6065 mm |
| Min. Turning Radius over Tires | 5465 mm |
| Steering Angle – Left/Right | 35° |
| Width at Tread Center | 1850 mm |
| Overall Width over Tires | 2320 mm |
BATTERY SYSTEM
| Manufacturer | CATL |
| Type | LFP |
| Capacity | 141 kWh |
| Voltage | 618 V |
| Type Of Cooling | Water-Cooling |
TRAVELLING MOTOR
| Rated Power | 70 kw |
| Rated Torque | 700 N·m |
| Rated Speed | 955 rpm |
| Type Of Cooling | Water-Cooling |
PUMP MOTOR
| Rated Power | 35 kw |
| Rated Torque | 300 N·m |
| Rated Speed | 1100 rpm |
| Type Of Cooling | Water-Cooling |
DRIVE TRAIN
| Type Of Transmission | Countershaft |
| Shift Type | Electronic Powershift Control |
| Axles | Rigid (Front) & Oscillating (Rear) |
| Rear Axle Oscillation (°) | ±8° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel, 1-stage Reduction |
| Wheel-side Reducer | Planetary Reduction |
| Tire | 17.5-25 12PR |
| Travel Speed-Forward | 14/36 km/h |
| Travel Speed-Reverse | 14 km/h |
| Service Brake | Single Circuit Caliper Dry Brake |
BRAKE SYSTEM
| Setting Pressure | 0.7-0.78 MPa |
| Parking Brake | Flexible Shaft Controlled |
| Emergency Brake | Caliper Brake |
STEERING SYSTEM
| Type | Hydraulic Load Sensing System |
| Pump | 160 ml/r |
| System Pressure | 14 MPa |
| Cylinder Type | Dual-cylinder drive |
| Steering Angle | ±35° |
HYDRAULIC SYSTEM
| Type | Single handle pilot control |
| Pump | 112 ml/r |
| Control Valve | 2 Spool |
| System Pressure | 19 MPa |
| Cycle Time (Sec) | 9.5 |
SERVICE REFILL CAPACITY
| Hydraulic Tank (L) | 165L |
| Transmission (L) | 17.5L |
| Front Axle/Rear Axle (L) | 18L/18L |
