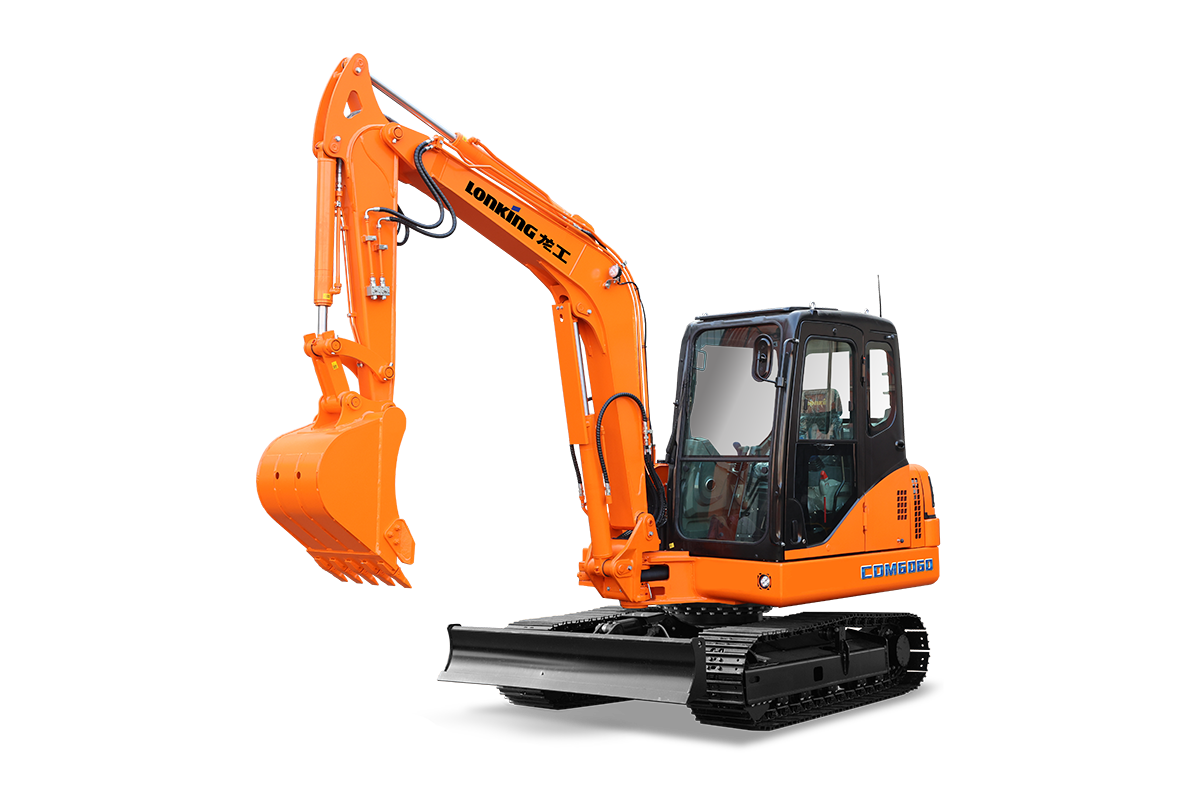

CDM6060F1 Yanmar Euro V & Tier 4F
Excavator
CDM6060F1 Yanmar Euro V & Tier 4F
42.4 kW/2000 rpmRated Power
6050 kgOperating Weight
3.0/5.2 km/hTravel Speed
3.3 LDisplacement
Overview
The Lonking CDM6060F1 Yanmar Euro V & Tier 4F is a excavator built for dependable, efficient operation. Powered by a 4TNV98C-WSY engine producing 42.4 kW/2000 rpm, with an operating weight of 6050 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 42.4 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

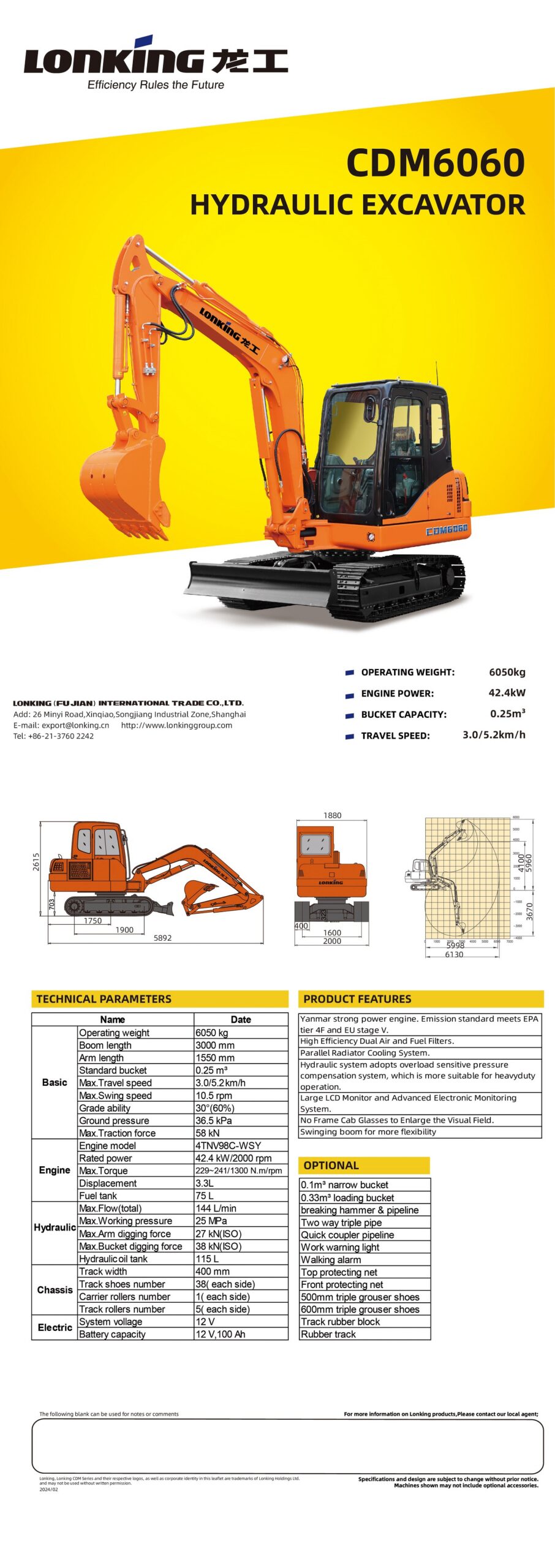

Technical Specifications
BASIC
| Operating weight | 6050 kg |
| Boom length | 3000 mm |
| Arm length | 1550 mm |
| Standard bucket | 0.25 m³ |
| Max.Travel speed | 3.0/5.2 km/h |
| Max.Swing speed | 10.5 rpm |
| Grade ability | 30°(60%) |
| Ground pressure | 36.5 kPa |
| Max.Traction force | 58 kN |
ENGINE
| Engine model | 4TNV98C-WSY |
| Rated power | 42.4 kW/2000 rpm |
| Max.Torque | 229~241/1300 N.m/rpm |
| Displacement | 3.3 L |
| Fuel tank | 75 L |
HYDRAULIC
| Max.Flow(total) | 144 L/min |
| Max.Working pressure | 25 MPa |
| Max.Arm digging force | 27 kN(ISO) |
| Max.Bucket digging force | 38 kN(ISO) |
| Hydraulic oil tank | 115 L |
CHASSIS
| Track width | 400 mm |
| Track shoes number | 38(each side) |
| Carrier rollers number | 1(each side) |
| Track rollers number | 5(each side) |
ELECTRIC
| System voltage | 12 V |
| Battery capacity | 12 V, 100 Ah |
Request a Quote
Get factory-direct pricing and specifications for this machine from our sales team.
Request a Quote Contact Sales
