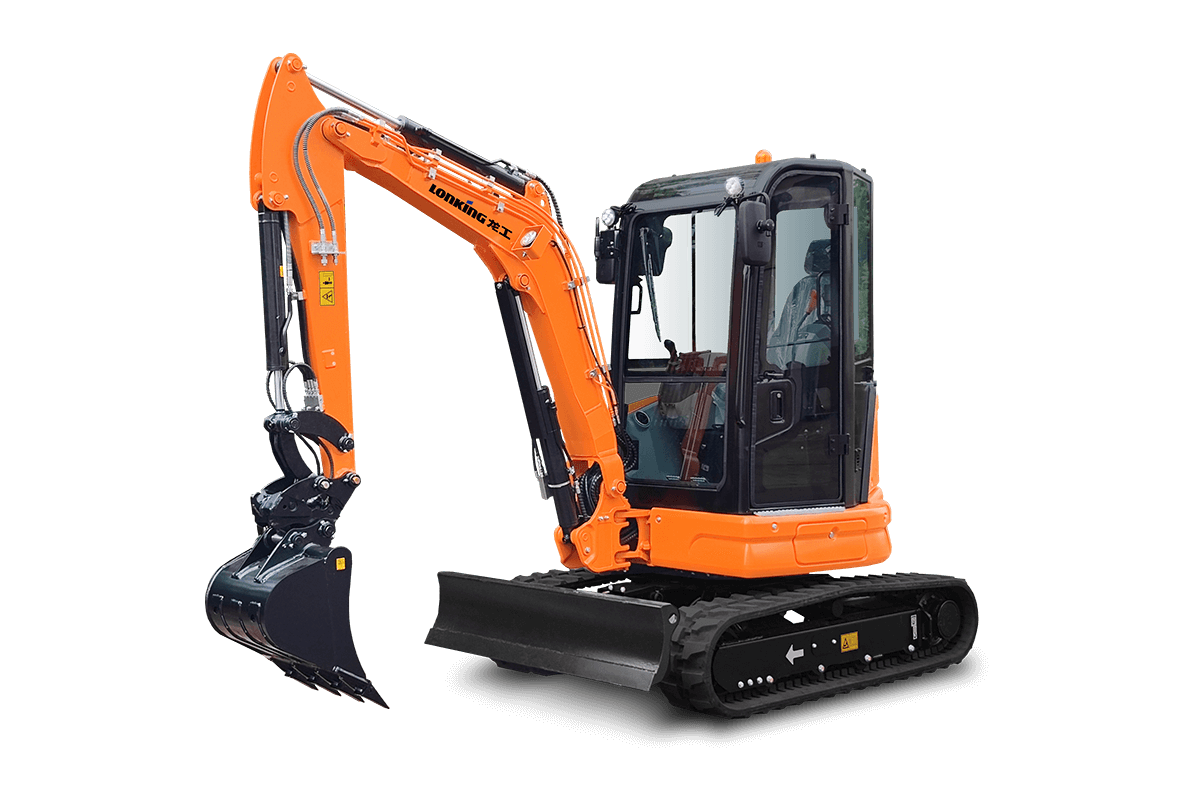

CDM6025 Yanmar Euro V
Excavator
CDM6025 Yanmar Euro V
14.6 kW/2400 rpmRated Power
2650 kgOperating Weight
0.08 m³Bucket Capacity
2.6/4.4km/hTravel Speed
Overview
The Lonking CDM6025 Yanmar Euro V is a excavator built for dependable, efficient operation. Powered by a 3TNV80-PSU engine producing 14.6 kW/2400 rpm, with an operating weight of 2650 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 14.6 kW/2400 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 2650 kg |
| Standard bucket Capacity | 0.08 m³ |
| Standard bucket Width | 580 mm |
| Max.Travel speed | 2.6/4.4km/h |
| Max.Swing speed | 10 rpm |
| Grade ability | 30° |
| Ground pressure | 25.1 kPa |
| Max.Traction force | 30.7 KN |
| Boom swing angle (L/R) | 65°/50° |
ENGINE
| Engine brand | YANMAR |
| Engine model | 3TNV80-PSU |
| Rated power | 14.6 kW/2400 rpm |
| Displacement | 1.267 L |
| Fuel tank | 26 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 2×28.8+19.2+6.5 L/min |
| Max.Working pressure | 23.5 MPa |
| Max.Pilot pressure | 3.2 Mpa |
| Max.Arm digging force | 14(15.8) kN |
| Max.Bucket digging force | 24 kN |
| Hydraulic oil tank | 41 L |
CHASSIS
| Track width | 300 mm |
| Track type | Steel crawler |
| Carrier rollers number | 1(each side) |
| Track rollers number | 4(each side) |
ELECTRIC SYSTEM
| System voltage | 12 V |
| Battery capacity | 12 V,45 Ah |
