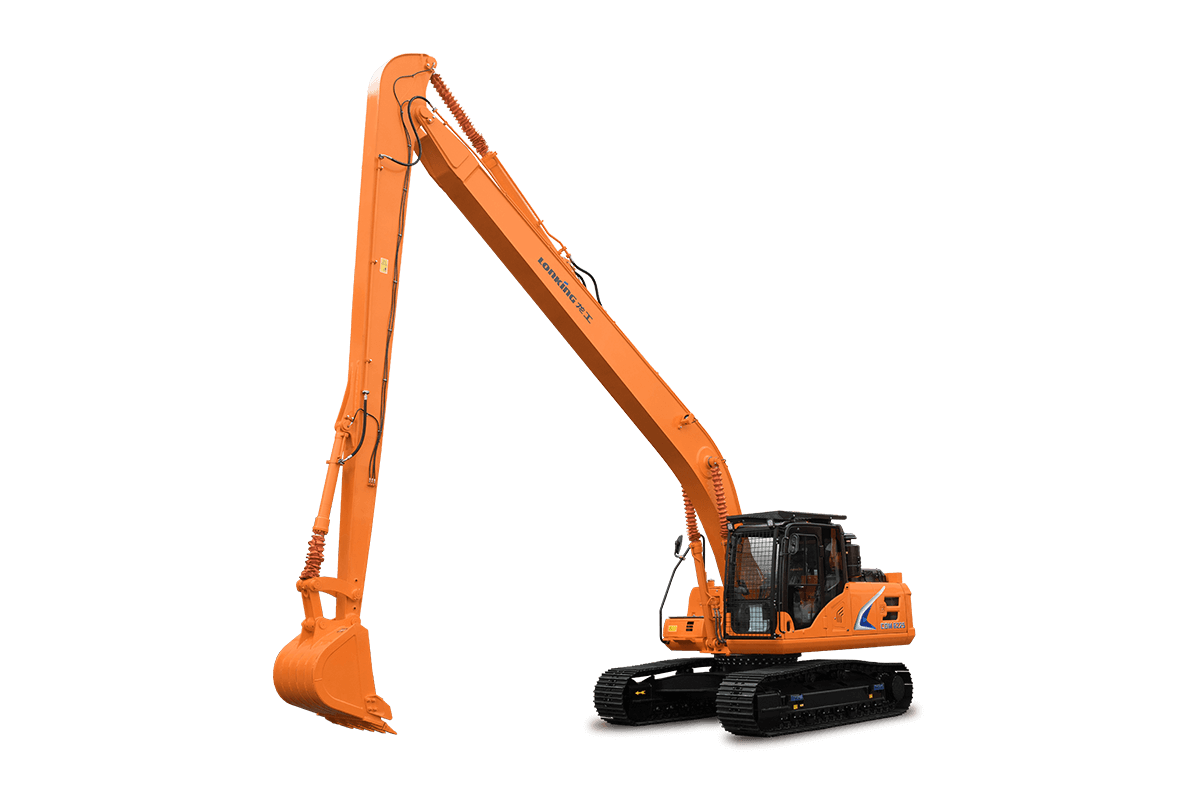

CDM6225 Cummins Ⅱ, Chinese HYD, for Forest use
Excavator
CDM6225 Cummins Ⅱ, Chinese HYD, for Forest use
112 kW/1950 rpmRated Power
24500 kgOperating Weight
3.6/5.6 km/hTravel Speed
5.9 LDisplacement
Overview
The Lonking CDM6225 Cummins Ⅱ, Chinese HYD, for Forest use is a excavator built for dependable, efficient operation. Powered by a 6BTA5.9-C150-II engine producing 112 kW/1950 rpm, with an operating weight of 24500 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 112 kW/1950 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

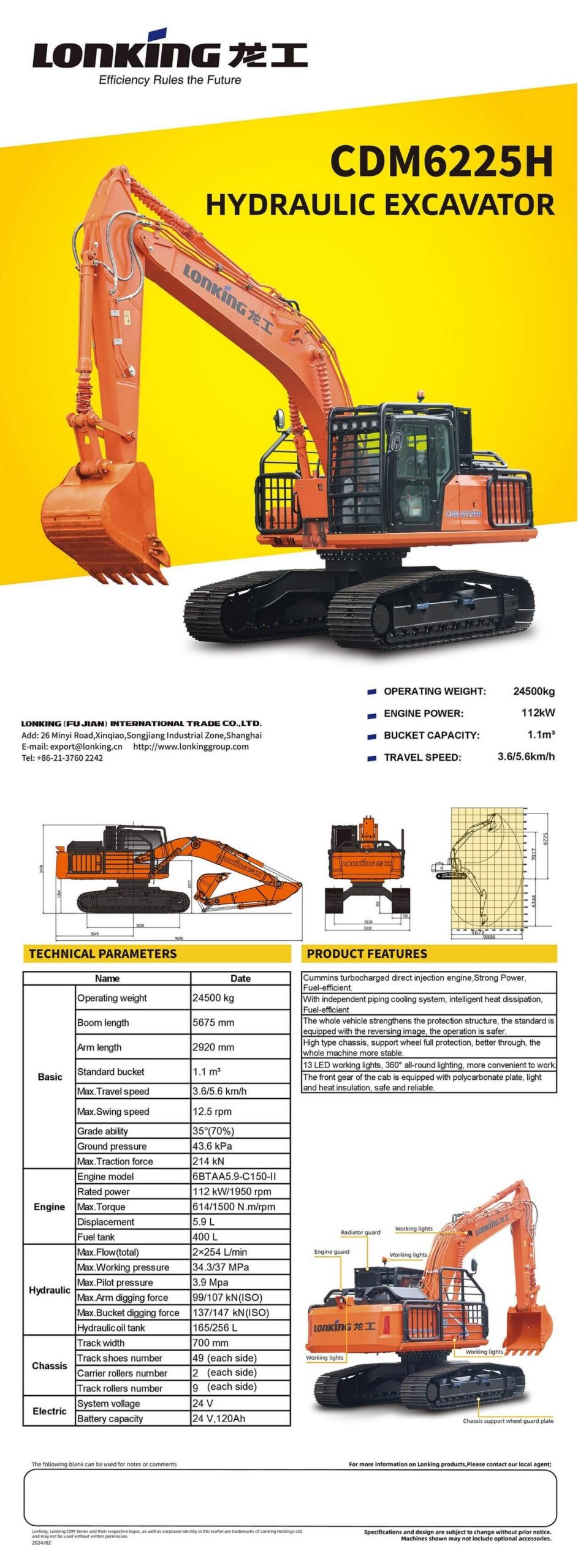

Technical Specifications
BASIC
| Operating weight | 24500 kg |
| Boom length | 5675 mm |
| Arm length | 2920 mm |
| Standard bucket | 1.1 m³ |
| Max.Travel speed | 3.6/5.6 km/h |
| Max.Swing speed | 12.5 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 43.6 kPa |
| Max.Traction force | 214 kN |
ENGINE
| Engine model | 6BTA5.9-C150-II |
| Rated power | 112 kW/1950 rpm |
| Max.Torque | 614/1500 N.m/rpm |
| Displacement | 5.9 L |
| Fuel tank | 400 L |
HYDRAULIC
| Max.Flow(total) | 2×254 L/min |
| Max.Working pressure | 34.3/37 MPa |
| Max.Pilot pressure | 3.9 Mpa |
| Max.Arm digging force | 99/107 kN(ISO) |
| Max.Bucket digging force | 137/147 kN(ISO) |
| Hydraulic oil tank | 165/256 L |
CHASSIS
| Track width | 700 mm |
| Track shoes number | 49(each side) |
| Carrier rollers number | 2(each side) |
| Track rollers number | 9(each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24 V,120Ah |
