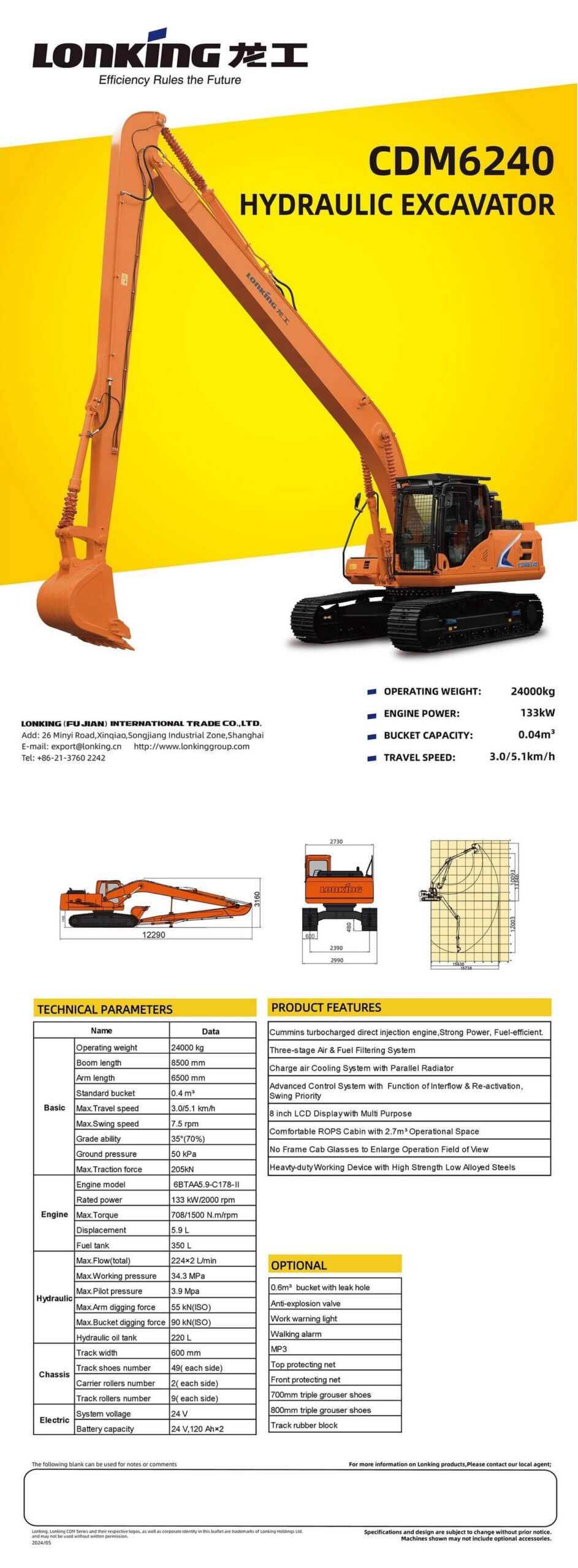

CDM6240 Cummins Ⅱ, Long Reach 15m
Excavator
CDM6240 Cummins Ⅱ, Long Reach 15m
133 kW/2000 rpmRated Power
24000 kgOperating Weight
3.0/5.1 km/hTravel Speed
5.9 LDisplacement
Overview
The Lonking CDM6240 Cummins Ⅱ, Long Reach 15m is a excavator built for dependable, efficient operation. Powered by a 6BTA5.9-C178-II engine producing 133 kW/2000 rpm, with an operating weight of 24000 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 133 kW/2000 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 24000 kg |
| Boom length | 8500 mm |
| Arm length | 6500 mm |
| Standard bucket | 0.4 m³ |
| Max.Travel speed | 3.0/5.1 km/h |
| Max.Swing speed | 7.5 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 50 kPa |
| Max.Traction force | 205 kN |
ENGINE
| Engine model | 6BTA5.9-C178-II |
| Rated power | 133 kW/2000 rpm |
| Max.Torque | 708/1500 N.m/rpm |
| Displacement | 5.9 L |
| Fuel tank | 350 L |
HYDRAULIC
| Max.Flow(total) | 224×2 L/min |
| Max.Working pressure | 34.3 MPa |
| Max.Pilot pressure | 3.9 Mpa |
| Max.Arm digging force | 55 kN(ISO) |
| Max.Bucket digging force | 90 kN(ISO) |
| Hydraulic oil tank | 220 L |
CHASSIS
| Track width | 600 mm |
| Track shoes number | 49(each side) |
| Carrier rollers number | 2(each side) |
| Track rollers number | 9(each side) |
ELECTRIC
| System voltage | 24 V |
| Battery capacity | 24 V,120 Ah×2 |
