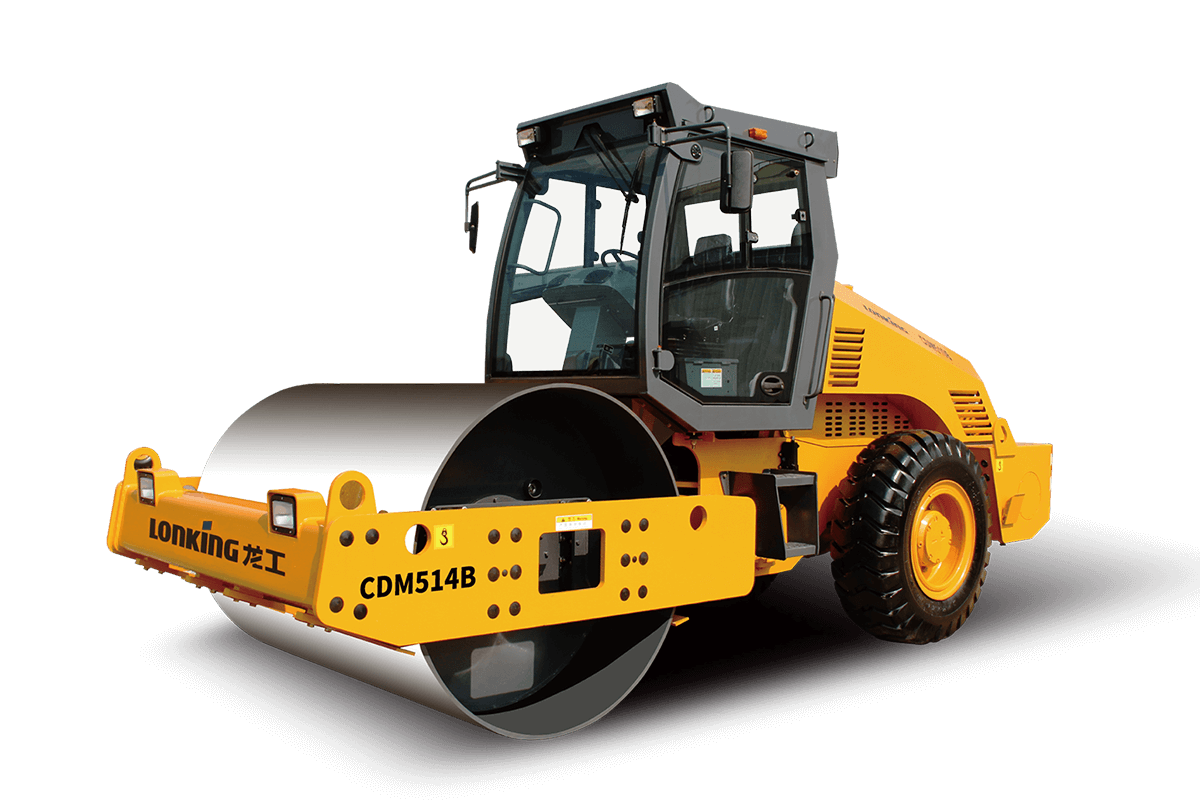

CDM514B B Series Single Drum Mechanical Transmission (Nation Ⅲ)
Road Roller
CDM514B B Series Single Drum Mechanical Transmission (Nation Ⅲ)
92 kWRated Power
14000kgOperating Weight
2.32/4.1/11.38 km/hTravel Speed
2000 rpmRated Speed
Overview
The Lonking CDM514B B Series Single Drum Mechanical Transmission (Nation Ⅲ) is a road roller built for dependable, efficient operation. Powered by a WEI CHAI engine producing 92 kW, with an operating weight of 14000kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks. Engine options meet Nation Ⅲ emission standards for broad market compliance.
Key Features
- 92 kW engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating Weight | 14000kg |
| Weight Burden on Drum | 7000 kg |
| Weight Burden on Wheel | 7000 kg |
| Min Ground Clearance(h) | 420mm |
| Wheelbase (L1) | 3100mm |
| Grade Ability | 30% |
| L×W1×H（mm） | 5975×2280×3278 |
ENGINE
| Manufacturer | WEI CHAI |
| Model | WP6G125E333 |
| Rated Power | 92 kW |
| Rated Speed | 2000 rpm |
| Emissions Standard | Nation Ⅲ |
DRIVE TRAIN
| Drive Type | Mechanical Drive |
| Travel Speed Forward | 2.32/4.1/11.38 km/h |
| Travel Speed Reverse | 2.32/4.1 km/h |
| Tire Type | 23.1-26-12PR |
| Min.Turning Radius | 6300 mm |
| Steering Angle | 30 ° |
| Swing Angle | 10 ° |
VIBRATION SYSTEM
| Width of Drum (W2) | 2120 mm |
| Diameter of Drum | 1520 mm |
| Rim Thickness of Drum | 30 mm |
| Static Linear Load | 330N/cm |
| Vibration Type | Open-loop Hydraulic |
| Centrifugal Force | 290/160 kN |
| Vibration Frequency | 28 Hz |
| Nominal Amplitude | 1.8/0.9 mm |
BRAKE SYSTEM
| Service Brake | Air Booster CaliperRear Axle Brake |
| Parking Brake | Shaft ControllingBrake of Gear Box |
ELECTRIC
| Voltage | 24 V |
| Capacity | 120×2 Ah |
SERVICE REFILL
| Fuel Tank Capacity | 240 L |
| Hydraulic Tank Capacity | 240 L |
