CDM932NYC Rough Terain

Overview

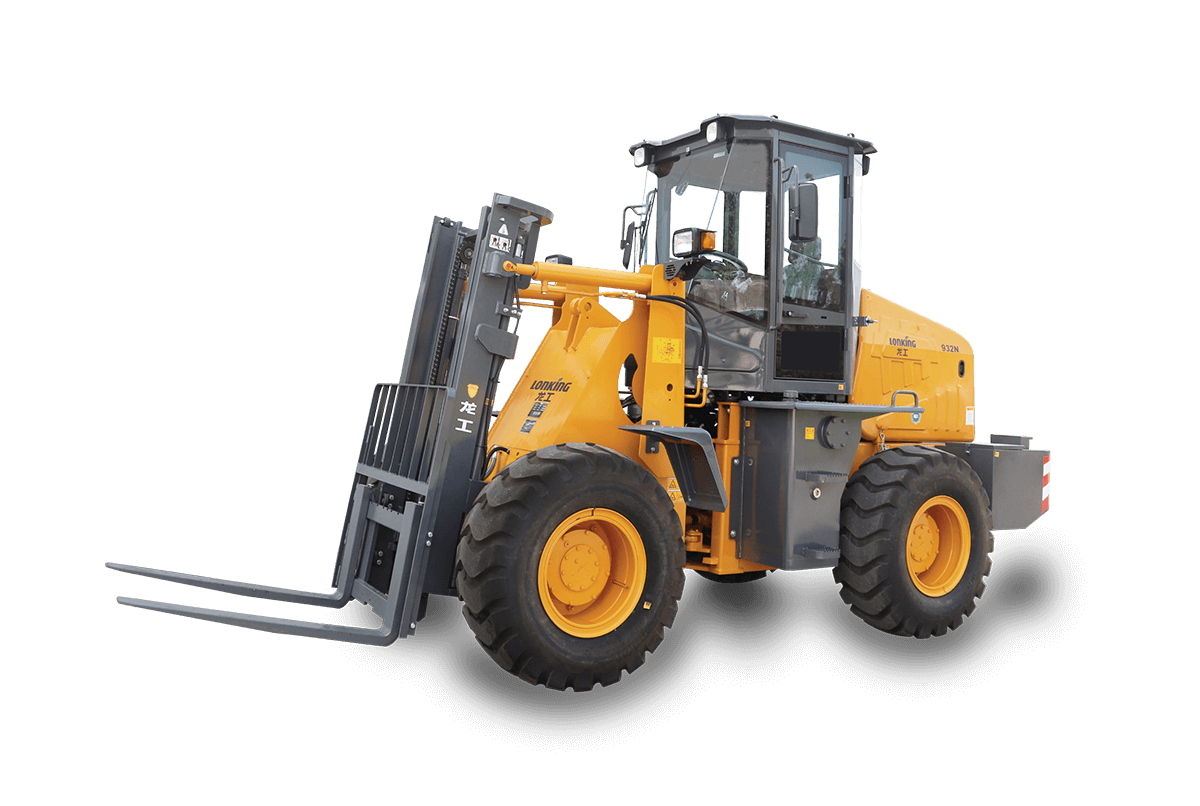

The Lonking CDM932NYC is a rugged rough-terrain forklift engineered to combine the lifting capability of a conventional forklift with the all-surface mobility of a wheel loader chassis. Rated to carry up to 2,500 kg at a 550 mm load centre and powered by the YN4D086-30CR Nation III engine delivering 60 kW, it delivers dependable material handling across construction sites, quarries, farms and industrial yards with uneven, unimproved ground. A countershaft powershift transmission, planetary final reduction and large 16/70-20 tyres provide strong traction and breakout force of 35 kN, while the 3,000 mm lift height with 600 mm/s lifting speed keeps load-and-carry cycles productive. Standard fitment includes a pilot-working control, two-stage mast and air conditioning, making the CDM932NYC a versatile and comfortable operator environment for demanding outdoor applications.

Key Features

• 2,500 kg rated payload with single-stage powershift transmission for smooth, reliable shifting
• Planetary final reduction and 16/70-20 tyres deliver strong traction and breakout force on soft or uneven ground
• 3,000 mm maximum lift at 600 mm/s keeps loading cycles fast and operators productive
• Pilot hydraulic working control for precise, fatigue-free fork and attachment operation
• Air-conditioned cab with adjustable mast tilt (6°/10°) for comfort and visibility on long shifts

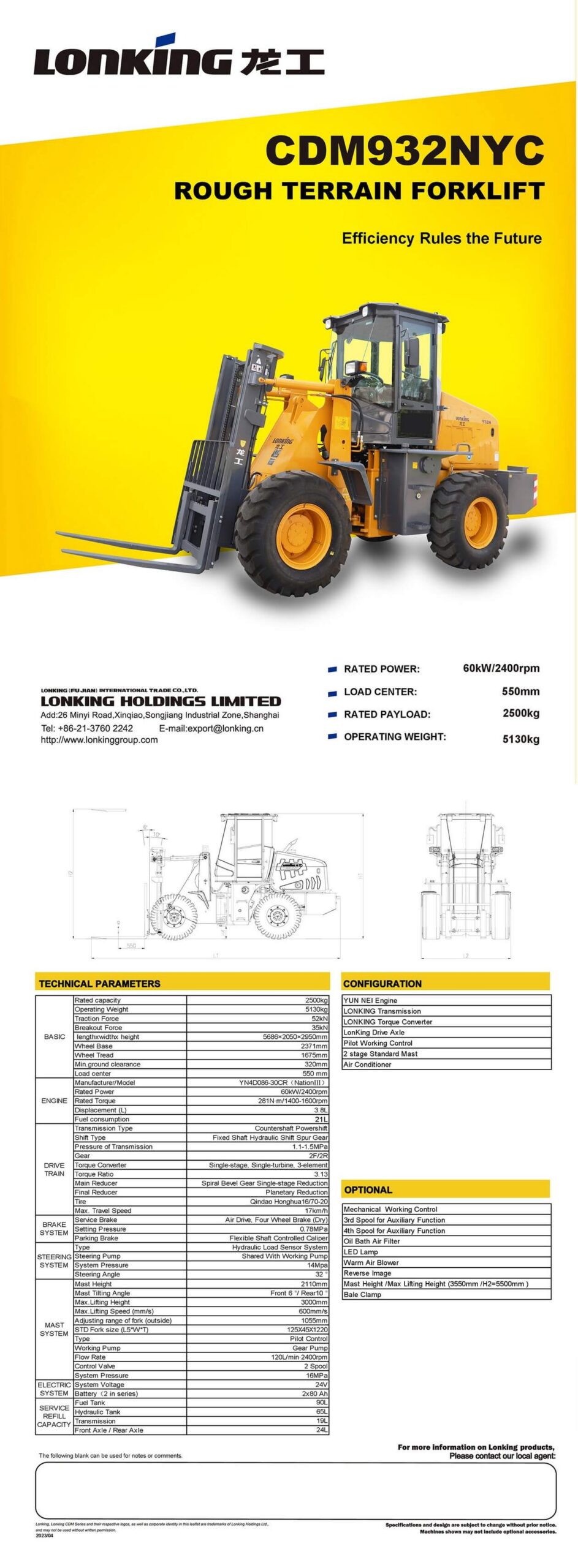

Technical Specifications
