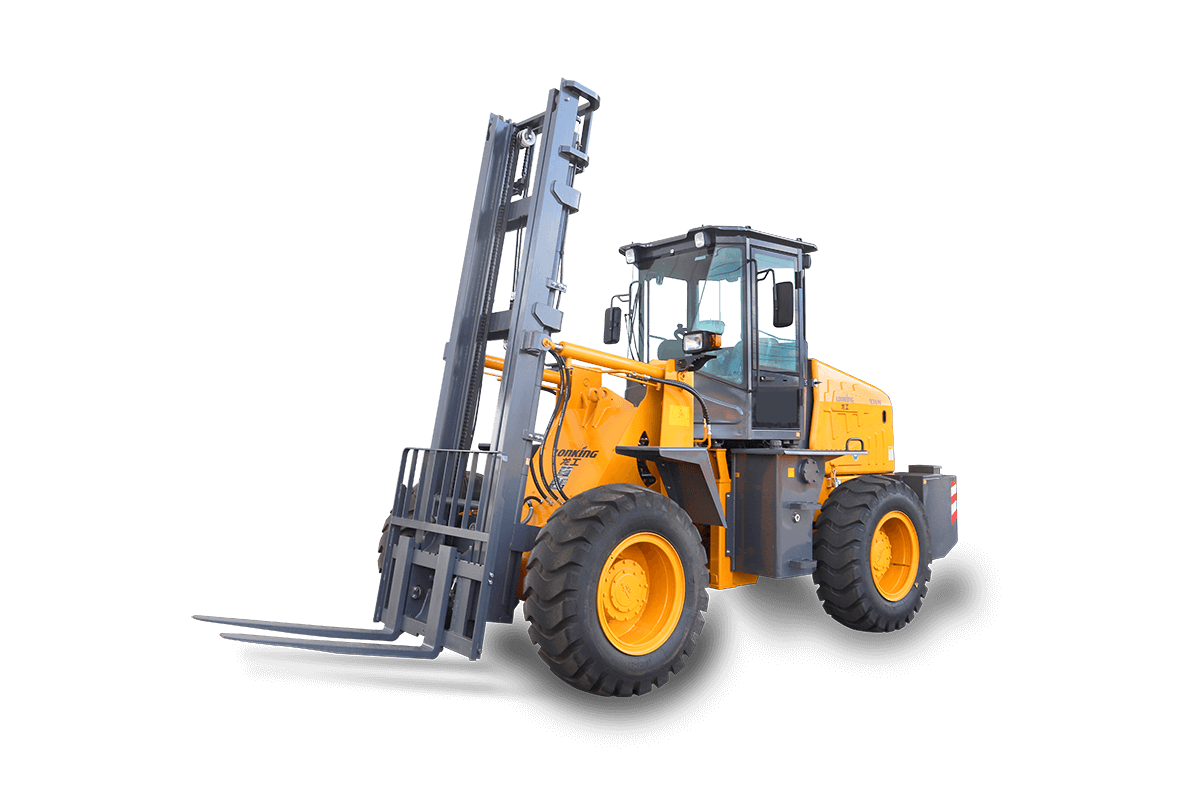

CDM936NYC Rough Terain
Wheel Loader
CDM936NYC Rough Terain
89kW/2200rpmRated Power
3000 kgRated Payload
6990 kgOperating Weight
8/25 km/hTravel Speed
Overview
The Lonking CDM936NYC Rough Terain is a wheel loader built for dependable, efficient operation. Powered by a QUAN CHAI/4D2-120U32（NationⅢ） engine producing 89kW/2200rpm, it handles a rated payload of 3000 kg with an operating weight of 6990 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 3000 kg rated capacity provides the working power your jobsite demands
- Countershaft Powershift drivetrain for smooth, reliable power delivery
- 917mm/s maximum lift keeps loading cycles fast and efficient
- High-performance hydraulic system operating at 14Mpa
- Ergonomic operator cab for comfort and visibility across long work shifts

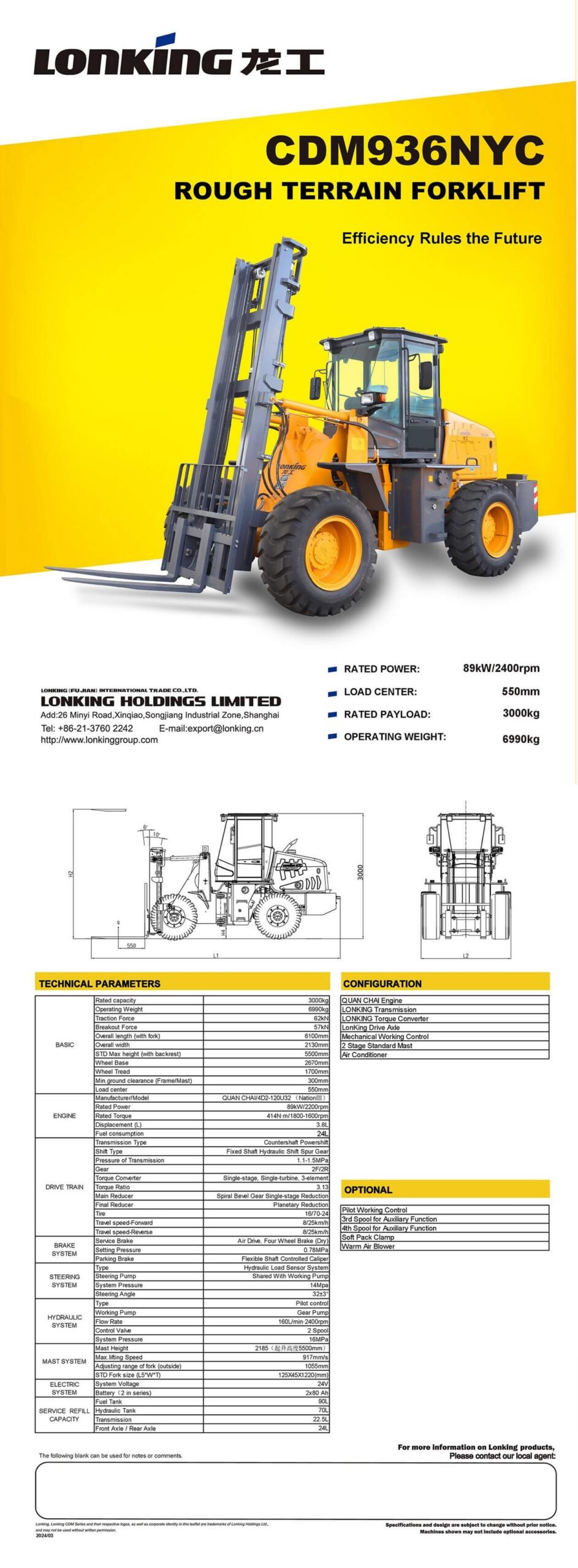

Technical Specifications
BASIC
| Rated capacity | 3000 kg |
| Operating Weight | 6990 kg |
| Traction Force | 62 kN |
| Breakout Force | 57 kN |
| Overall length (with fork) | 6100 mm |
| Overall width | 2130 mm |
| STD Max height (with backrest) | 5500 mm |
| Wheel Base | 2670 mm |
| Wheel Tread | 1700 mm |
| Min ground clearance (Frame/Mast) | 300 mm |
| Load center | 550 mm |
ENGINE
| Manufacturer/Model | QUAN CHAI/4D2-120U32（NationⅢ） |
| Rated Power | 89kW/2200rpm |
| Rated Torque | 414N·m/1800-1600rpm |
| Displacement (L) | 3.8L |
| Fuel consumption | 24L |
TRANSMISSION
| Transmission Type | Countershaft Powershift |
| Shift Type | Fixed Shaft Hydraulic Shift Spur Gear |
| Pressure of Transmission | 1.1-1.5MPa |
| Gear | 2F/2R |
DRIVE TRAIN
| Torque Converter | Single-stage, Single-turbine, 3-element |
| Torque Ratio | 3.13 |
| Main Reducer | Spiral Bevel Gear Single-stage Reduction |
| Final Reducer | Planetary Reduction |
| Tire | 16/70-24 |
| Travel speed-Forward | 8/25 km/h |
| Travel speed-Reverse | 8/25 km/h |
BRAKE SYSTEM
| Service Brake | Air Drive, Four Wheel Brake (Dry) |
| Setting Pressure | 0.78MPa |
| Parking Brake | Flexible Shaft Controlled Caliper |
STEERING SYSTEM
| Type | Hydraulic Load Sensor System |
| Steering Pump | Shared With Working Pump |
| System Pressure | 14Mpa |
| Steering Angle | 32±3° |
HYDRAULIC SYSTEM
| Type | Pilot control |
| Working Pump | Gear Pump |
| Flow Rate | 160L/min·2400rpm |
| Control Valve | 2 Spool |
| System Pressure | 16MPa |
MAST SYSTEM
| Mast Height | 2185 mm (lifting height 5500mm) |
| Max.lifting Speed | 917mm/s |
| Adjusting range of fork (outside) | 1055mm |
| STD Fork size (L5*W*T) | 125×45×1220 (mm) |
ELECTRIC SYSTEM
| System Voltage | 24V |
| Battery (2 in series) | 2×80 Ah |
SERVICE REFILL CAPACITY
| Fuel Tank | 90L |
| Hydraulic Tank | 70L |
| Transmission | 22.5L |
| Front Axle / Rear Axle | 24L |
