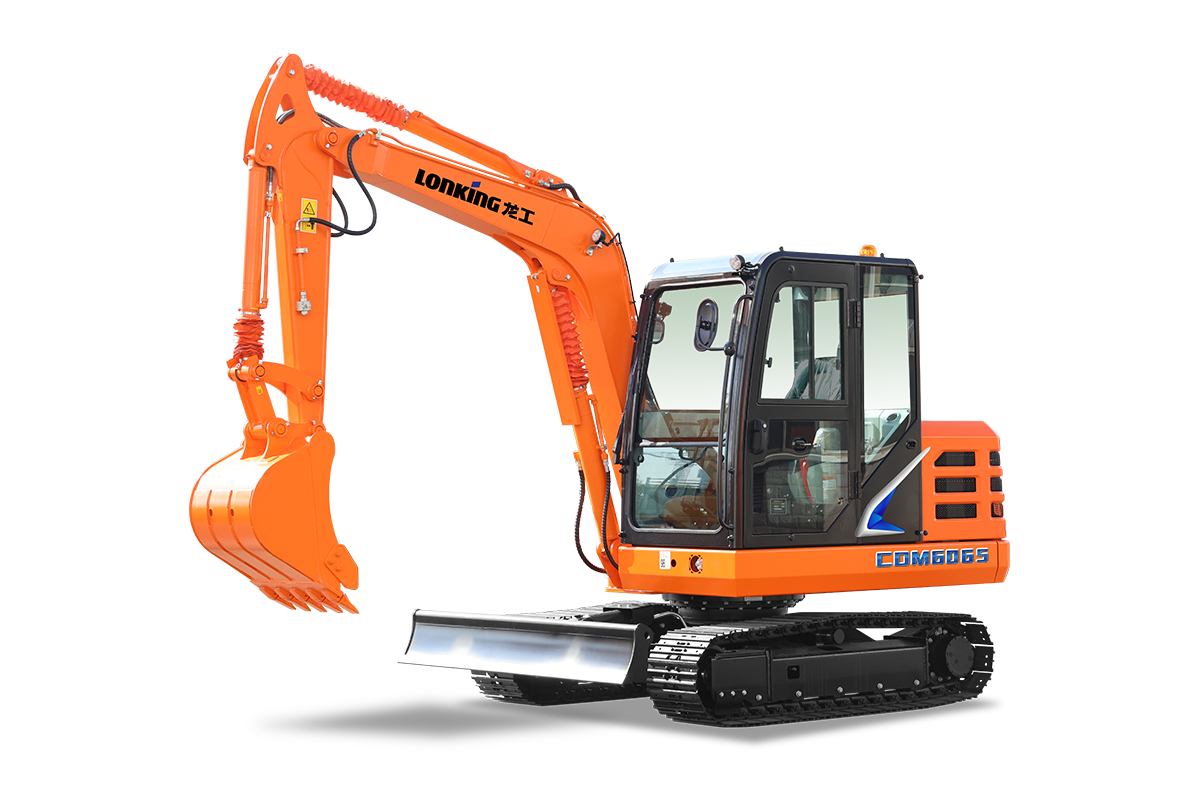

CDM6065N Yanmar Ⅲ
Excavator
CDM6065N Yanmar III
46.3 kW/2200 rpmRated Power
6050 kgOperating Weight
2.5/4.2 km/hTravel Speed
3.319 LDisplacement
Overview
The Lonking CDM6065N Yanmar III is a excavator built for dependable, efficient operation. Powered by a 4TNV98-ZCSLKC engine producing 46.3 kW/2200 rpm, with an operating weight of 6050 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 46.3 kW/2200 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 6050 kg |
| Boom length | 3000 mm |
| Arm length | 1500 mm |
| Standard bucket | 0.25 m³ |
| Max.Travel speed | 2.5/4.2 km/h |
| Max.Swing speed | 10.5 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 34.5 kPa |
| Max.Traction force | 58.3 kN |
ENGINE
| Engine model | 4TNV98-ZCSLKC |
| Rated power | 46.3 kW/2200 rpm |
| Max.Torque | 223.3-243.5/1200 N.m/rpm |
| Displacement | 3.319 L |
| Fuel tank | 130 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 151 L/min |
| Max.Working pressure | 24.5 MPa |
| Max.Pilot pressure | 3.7 Mpa |
| Max.Arm digging force | 28 kN(ISO) |
| Max.Bucket digging force | 40 kN(ISO) |
| Hydraulic oil tank | 80 L |
CHASSIS
| Track width | 400 mm |
| Track shoes number | 38( each side) |
| Carrier rollers number | 1( each side) |
| Track rollers number | 5( each side) |
ELECTRIC SYSTEM
| System voltage | 12 V |
| Battery capacity | 12 V,60 Ah |
