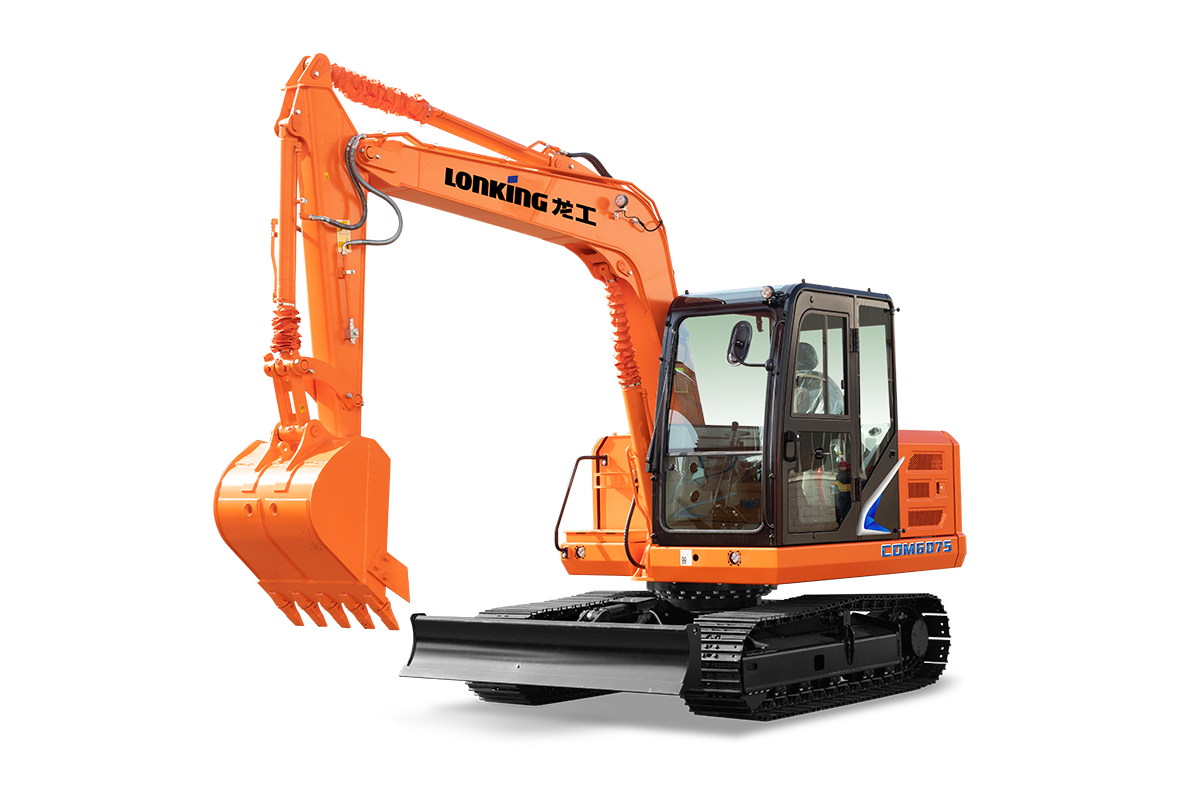

CDM6075N1 Weichai Ⅲ
Excavator
CDM6075N1 Weichai III
36.8 kW/2400 rpmRated Power
7680 kgOperating Weight
2.8/4.5 km/hTravel Speed
3.17 LDisplacement
Overview
The Lonking CDM6075N1 Weichai III is a excavator built for dependable, efficient operation. Powered by a WP3.2G50E436 engine producing 36.8 kW/2400 rpm, with an operating weight of 7680 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 36.8 kW/2400 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

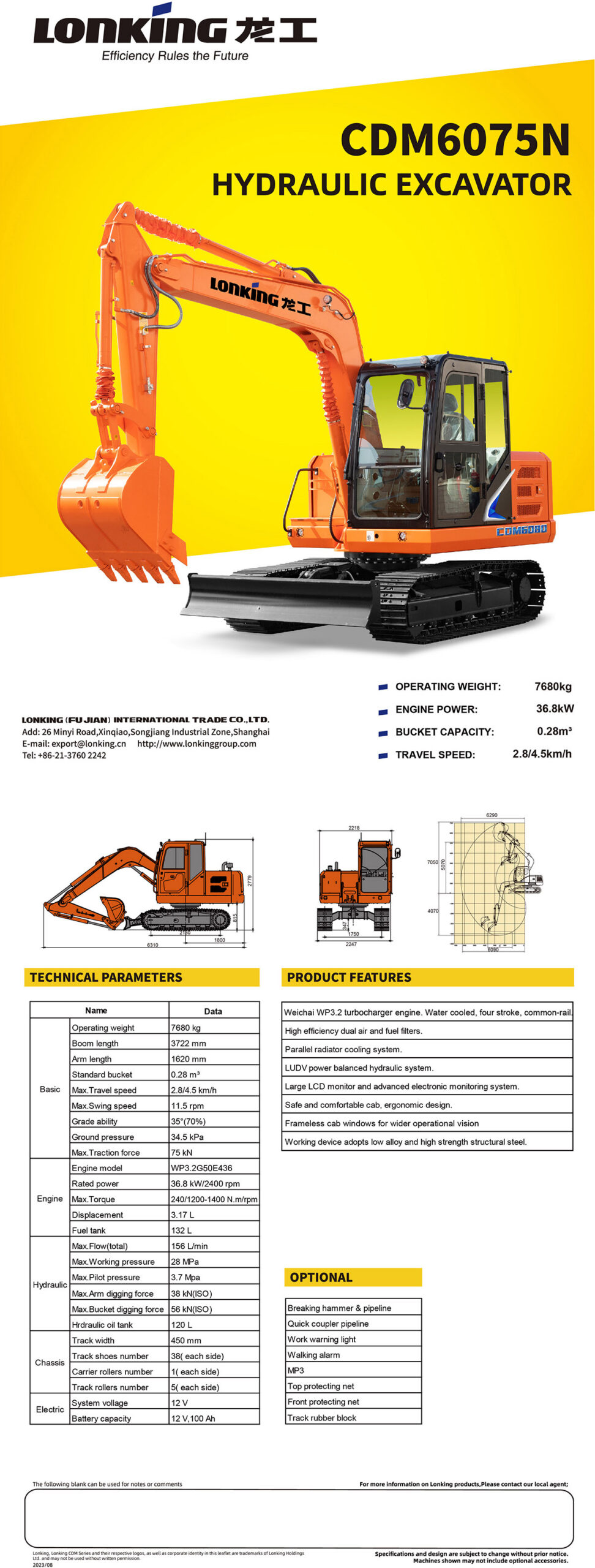

Technical Specifications
BASIC
| Operating weight | 7680 kg |
| Boom length | 3722 mm |
| Arm length | 1620 mm |
| Standard bucket | 0.28 m³ |
| Max.Travel speed | 2.8/4.5 km/h |
| Max.Swing speed | 11.5 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 34.5 kPa |
| Max.Traction force | 75 kN |
ENGINE
| Engine model | WP3.2G50E436 |
| Rated power | 36.8 kW/2400 rpm |
| Max.Torque | 240/1200-1400 N.m/rpm |
| Displacement | 3.17 L |
| Fuel tank | 132 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 156 L/min |
| Max.Working pressure | 28 MPa |
| Max.Pilot pressure | 3.7 Mpa |
| Max.Arm digging force | 38 kN(ISO) |
| Max.Bucket digging force | 56 kN(ISO) |
| Hydraulic oil tank | 120 L |
CHASSIS
| Track width | 450 mm |
| Track shoes number | 38( each side) |
| Carrier rollers number | 1( each side) |
| Track rollers number | 5( each side) |
ELECTRIC SYSTEM
| System voltage | 12 V |
| Battery capacity | 12 V,100 Ah |
OPTIONAL
| Breaking hammer & pipeline | Optional |
| Quick coupler pipeline | Optional |
| Work warning light | Optional |
| Walking alarm | Optional |
| MP3 | Optional |
| Top protecting net | Optional |
| Front protecting net | Optional |
| Track rubber block | Optional |
