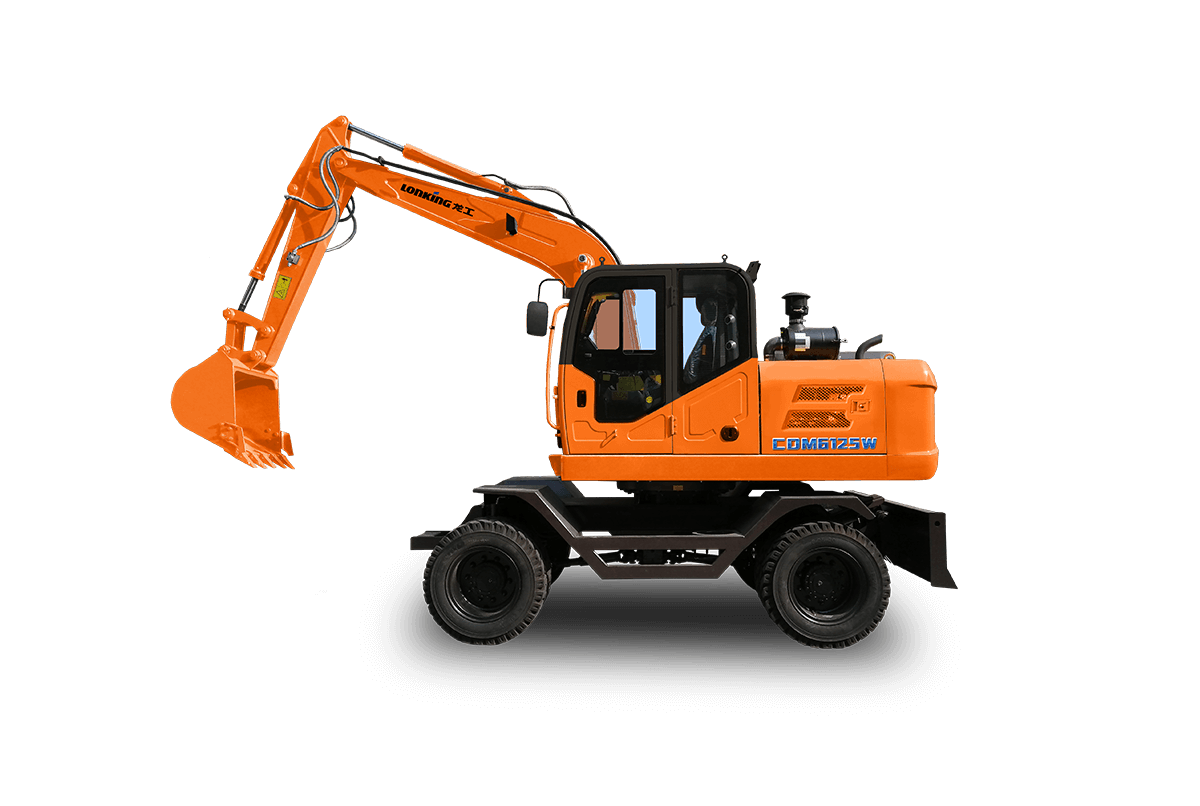

CDM6125W
Excavator
CDM6125W
73.5 kW/2200 rpmRated Power
10000 kgOperating Weight
30 km/hTravel Speed
3.621 LDisplacement
Overview
The Lonking CDM6125W is a excavator built for dependable, efficient operation. Powered by a YC4DK100 engine producing 73.5 kW/2200 rpm, with an operating weight of 10000 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 73.5 kW/2200 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 10000 kg |
| Boom length | 4000 mm |
| Arm length | 2000 mm |
| Standard bucket | 0.4 m3 |
| Max. Travel speed | 30 km/h |
| Max. Swing speed | 11 rpm |
| Grade ability | 30 deg(58%) |
| Tire type | 8.25-20 |
| Max. Traction force | 60 kN |
ENGINE
| Engine model | YC4DK100 |
| Rated power | 73.5 kW/2200 rpm |
| Displacement | 3.621 L |
| Fuel consumption | >=6 L/h |
| Fuel tank | 150 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 150 L/min |
| Max. Working pressure | 28 MPa |
| Max. Digging force | 60 kN |
| Hydraulic oil tank | 150 L |
WORKING RANGE
| A1 Max. Digging reach | 7350 mm |
| B1 Max. Ground digging reach | 7200 mm |
| C1 Max. Digging height | 6945 mm |
| D1 Max. Dumping height | 5330 mm |
| E1 Max. Digging depth | 4300 mm |
| F1 Max. Vertical digging depth | 3900 mm |
| G1 Min. Working radius | 2500 mm |
OVERALL DIMENSION
| Transport dimension AxBxC | 7050x2330x2980 mm |
| D Counterweight ground clearance | 1250 mm |
| E Min. Ground clearance | 440 mm |
| F Tail swing radius | 2100 mm |
| G Axle base | 2600 mm |
| H Wheel base | 1770 mm |
