CDM6210W
Excavator
CDM6210W
112 kW/1950 rpmRated Power
20850 kgOperating Weight
32 km/hTravel Speed
5.9 LDisplacement
Overview

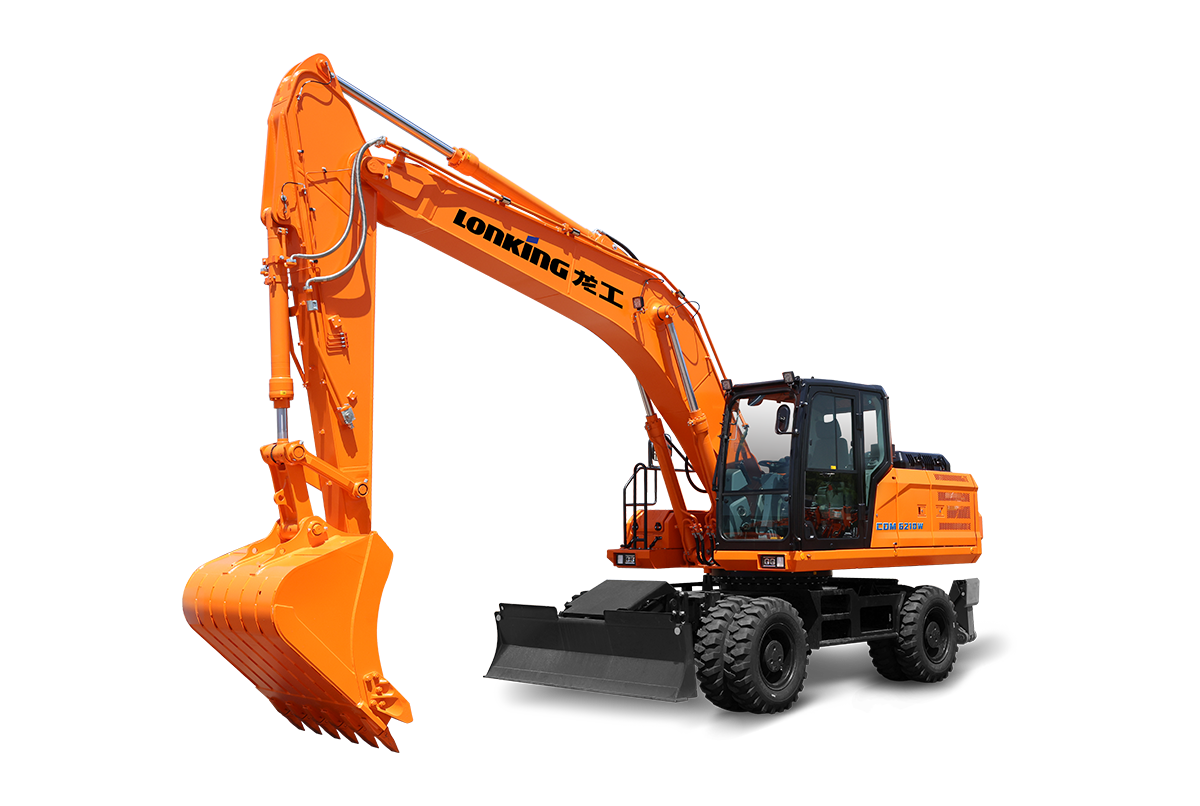

The Lonking CDM6210W is a excavator built for dependable, efficient operation. Powered by a 6BTAA5.9-C150-II engine producing 112 kW/1950 rpm, with an operating weight of 20850 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 112 kW/1950 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network
Technical Specifications
BASIC
| Operating weight | 20850 kg |
| Boom length | 5600 mm |
| Arm length | 3000 mm |
| Standard bucket | 1.17 m3 |
| Max. Travel speed | 32 km/h |
| Max. Swing speed | 13.5 rpm |
| Grade ability | 31 deg(60%) |
| Tire type | 10.0-20-14PR |
| Max. Traction force | 96.6 kN |
ENGINE
| Engine model | 6BTAA5.9-C150-II |
| Rated power | 112 kW/1950 rpm |
| Displacement | 5.9 L |
| Max. Torque | 614/1500 N.m/rpm |
| Fuel tank | 350 L |
HYDRAULIC SYSTEM
| Max.Flow(total) | 240*2 L/min |
| Max. Working pressure | 35 MPa |
| Max. Digging force | 149 kN |
| Hydraulic oil tank | 250 L |
WORKING RANGE
| A1 Max. Digging reach | 9970 mm |
| B1 Max. Ground digging reach | 9750 mm |
| C1 Max. Digging height | 9850 mm |
| D1 Max. Dumping height | 6930 mm |
| E1 Max. Digging depth | 6420 mm |
| F1 Max. Vertical digging depth | 4370 mm |
| G1 Min. Working radius | 3645 mm |
OVERALL DIMENSION
| Transport dimension AxBxC | 9430x2530x3290 mm |
| D Counterweight ground clearance | 1300 mm |
| E Min. Ground clearance | 350 mm |
| F Tail swing radius | 2785 mm |
| G Axle base | 2850 mm |
| H Wheel base | 1944 mm |
OPTIONAL
| Custom buckets | yes |
| Hydraulic hammer | yes |
| Quick coupler | yes |
| Work warning light | yes |
| Protecting net | yes |
| Front protecting net | yes |
