CDM6075N3 Yanmar Ⅲ
Excavator
CDM6075N3 Yanmar Ⅲ
46.3 kW/2200 rpmRated Power
7680 kgOperating Weight
2.8/4.5 km/hTravel Speed
3.319 LDisplacement
Overview
The Lonking CDM6075N3 Yanmar Ⅲ is a excavator built for dependable, efficient operation. Powered by a 4TNV98-ZCSLK engine producing 46.3 kW/2200 rpm, with an operating weight of 7680 kg. Its robust drivetrain, precise hydraulics and operator-focused cab make it well suited to construction, mining, agriculture and industrial material-handling tasks.
Key Features
- 46.3 kW/2200 rpm engine output tuned for productive operation
- Ergonomic operator cab for comfort and visibility across long work shifts
- Supported by Lonking global genuine parts and after-sales service network

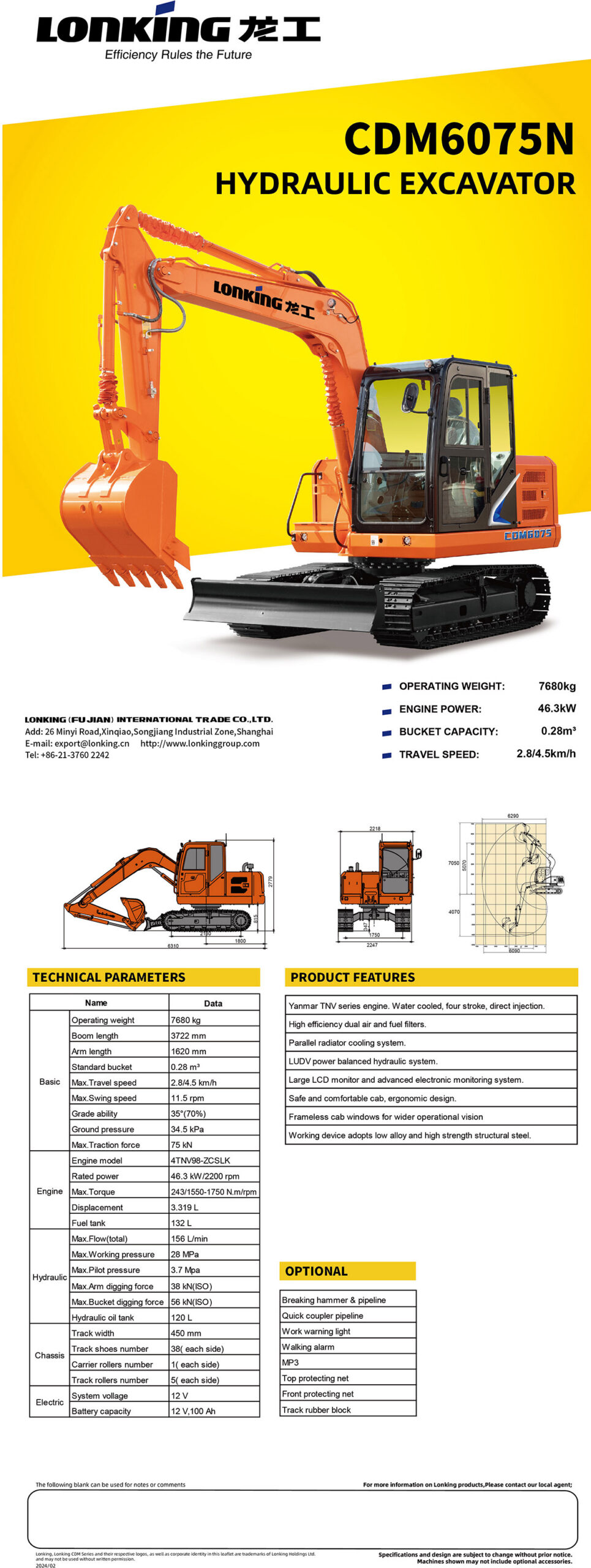

Technical Specifications
BASIC
| Operating weight | 7680 kg |
| Boom length | 3722 mm |
| Arm length | 1620 mm |
| Standard bucket | 0.28 m³ |
| Max.Travel speed | 2.8/4.5 km/h |
| Max.Swing speed | 11.5 rpm |
| Grade ability | 35°(70%) |
| Ground pressure | 34.5 kPa |
| Max.Traction force | 75 kN |
ENGINE
| Engine model | 4TNV98-ZCSLK |
| Rated power | 46.3 kW/2200 rpm |
| Max.Torque | 243/1550-1750 N.m/rpm |
| Displacement | 3.319 L |
| Fuel tank | 132 L |
HYDRAULIC
| Max.Flow(total) | 156 L/min |
| Max.Working pressure | 28 MPa |
| Max.Pilot pressure | 3.7 Mpa |
| Max.Arm digging force | 38 kN(ISO) |
| Max.Bucket digging force | 56 kN(ISO) |
| Hydraulic oil tank | 120 L |
CHASSIS
| Track width | 450 mm |
| Track shoes number | 38(each side) |
| Carrier rollers number | 1(each side) |
| Track rollers number | 5(each side) |
ELECTRIC
| System voltage | 12 V |
| Battery capacity | 12 V,100 Ah |
